C80 Calibration of the inner SAPE gauge arm
Options: None.
Special function: None.
Description:

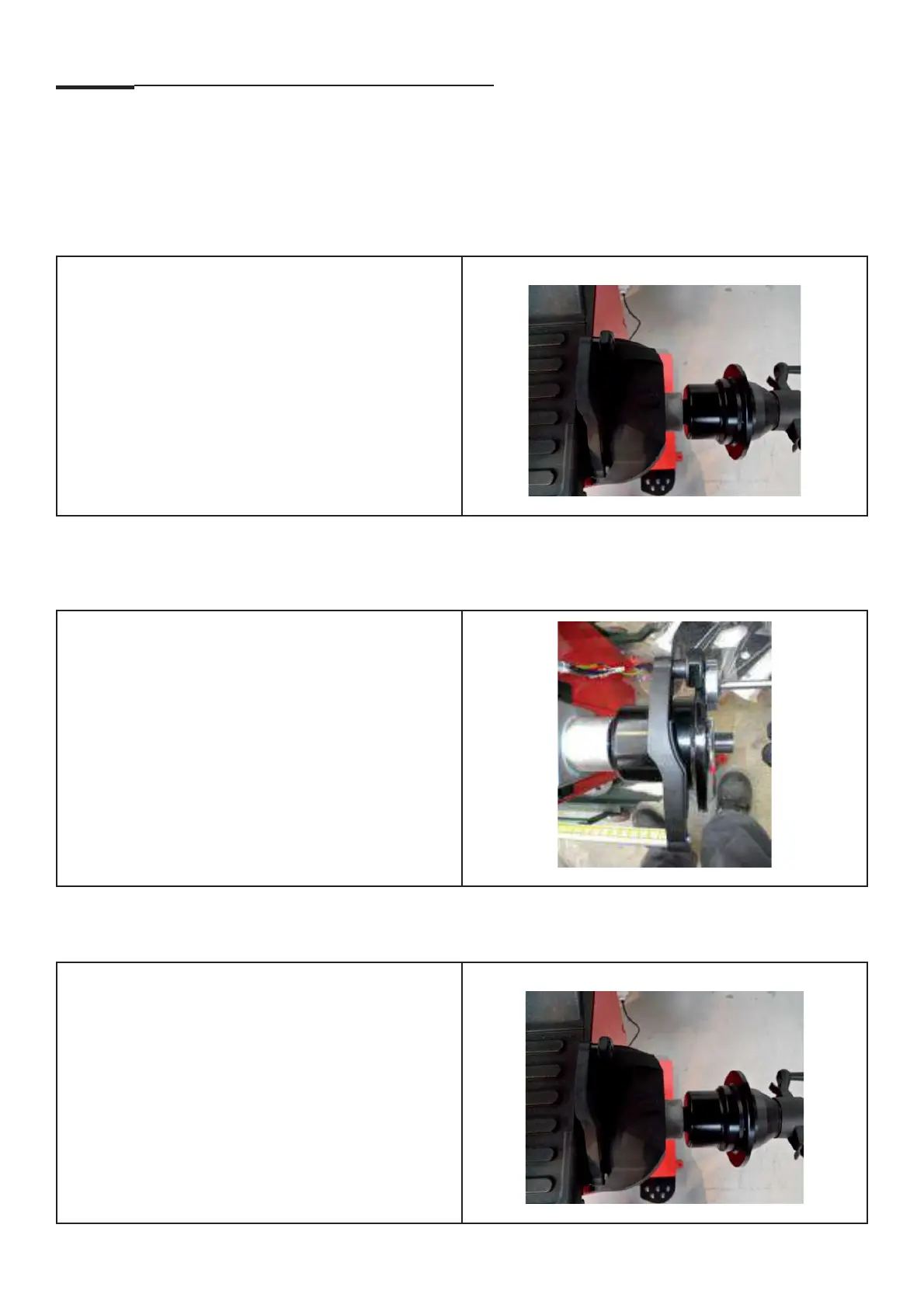

Step 1: Move gauge arm to calibration position 1 and adjust the distance potentiometers mechanically.
The voltage of the distance potentiometer is indicated in the right 3-dig display
Gauge arm fully returned to home position. The
reading for distance sape must be:
3.10 – 3.15V
Place the gauge arm to the ! ange edge and adjust the diameter potentiometers mechanically:
the voltage of the diameter potentiometer is indicated in the left 3-digit display.
Place the arm to ! ange edge. The reading must
be:
2.60 – 2.63V
Move gauge arm to calibration position 1 and adjust extraction potentiometer mechanically. Press acknowledge key to
con" rm step 1.
Gauge arm fully returned to home position.
