Johnson Controls P2000 User Manual

DVR Integration Option Operation
24-10515-13 Rev. – 3-13
This document contains confidential and proprietary information of Johnson Controls, Inc.
© 2010 Johnson Controls, Inc.

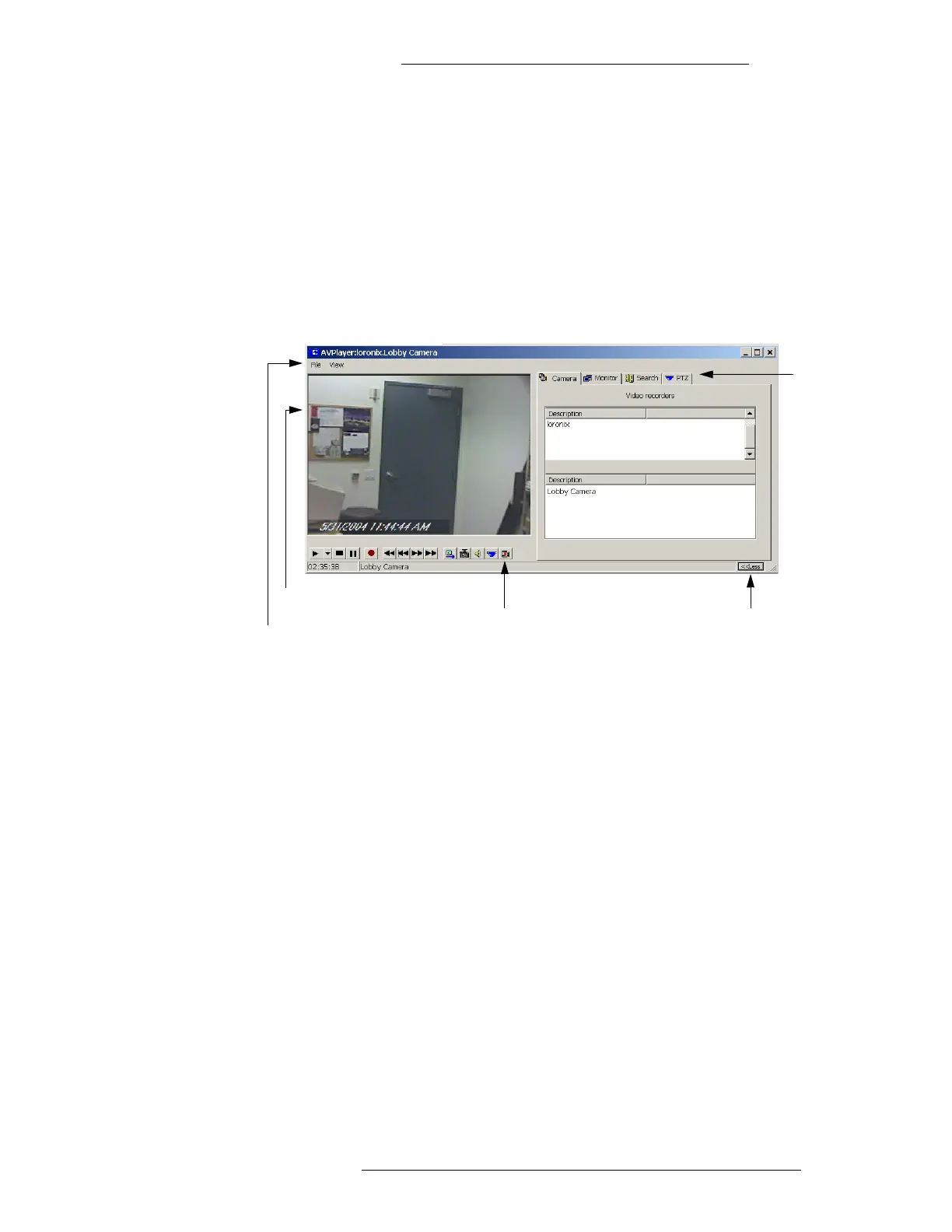

 Video player viewing area
 Tabs to access the camera and switch control panel (the Camera tab), a monitor
selection screen (the Monitor tab), a search and retrieval interface (the Search tab),
and a pan, tilt, and zoom controller with a presets controller (the PTZ tab)
 Buttons to control AV Player functions and indicate the camera’s recording and PTZ
status
The AV Player window title displays a description of
the current video stream, consisting of
the OPC Server namespace tags of the AV Player and the respective Camera.
Video player
Tab s
Function and
indicator
Minimal Features (Less>>) and Full
Features (<<More) toggle button Main menu
Main Menu
The Main menu allows you to save the recording and select display aspect ratio for
the video player.
Saving the Recording
The recording can be saved in .bmp or .avi format.
 T
o save the recording in .bmp format:
1. Go to Fil
e>Save Picture.
2. Specify the file name and location and click Save.
 T
o save the recording in .avi format:
1. Go to Fil
e>Save Video.
2. Specify the file name and location and click Save.
