Avionic Batteries
There are two avionic batteries located within the aircraft. The one battery is located
within a hatch in the seatpan, aft of the control stick. The other avionic battery is
located behind the seatback.
Seatback battery
The seatback battery has a built-in circuit breaker.

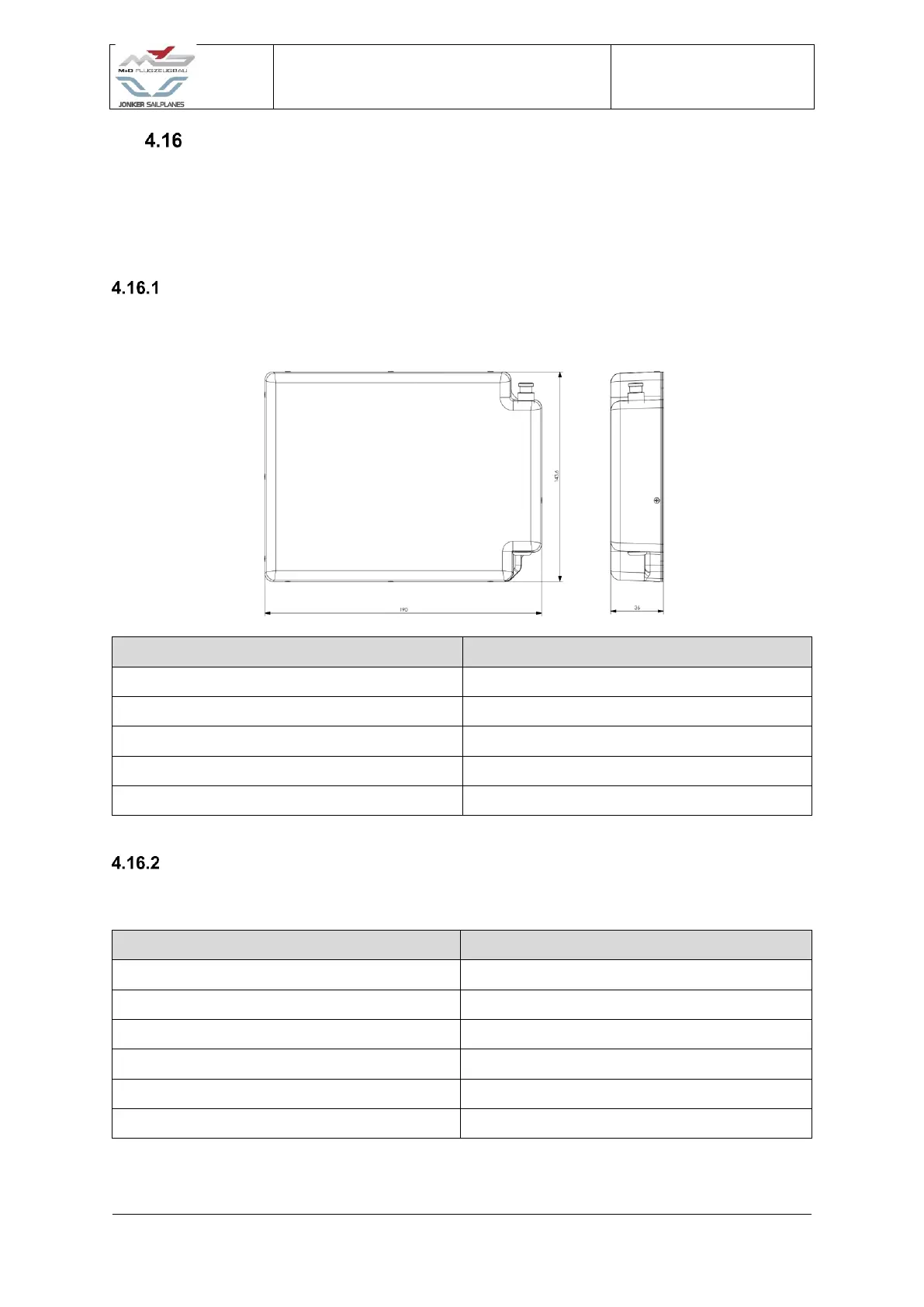

Figure 4-40 Seatback specification
Seatpan battery
The seat pan battery has the following specification as indicated in the table below:
Specification
Rating
Type
LiFePO4
Voltage
12.8V
Capacity
9.9Ah
Charge current max
3A
Dimensions
80mmx54mmx138mm
JS Part number
107 05 055 00
Table 4-4 Seatpan battery specification
NOTE: It is good practice to unplug both avionic batteries during aircraft storage.
Specification
Rating
Type
LiFePO4
Voltage
12.8V
Capacity
9.9Ah
Charge current max
3A
JS Part number
231 19 188 00
