JS-MD 3 RES Maintenance Manual

Supplement

MD11-AMM-00-002

Issue: 00

Rev. 00

Rev. Date: 23-May-22

Page 4-15

10. Electrical motor section).

Propeller

The RES propeller is manufactured by Technoflug. The KS1 is a two-blade fixed-pitch

propeller. The propeller is fastened directly to the EMRAX 208 Electrical motor by six fastening

bolts as illustrated Figure 4-8.

Overview

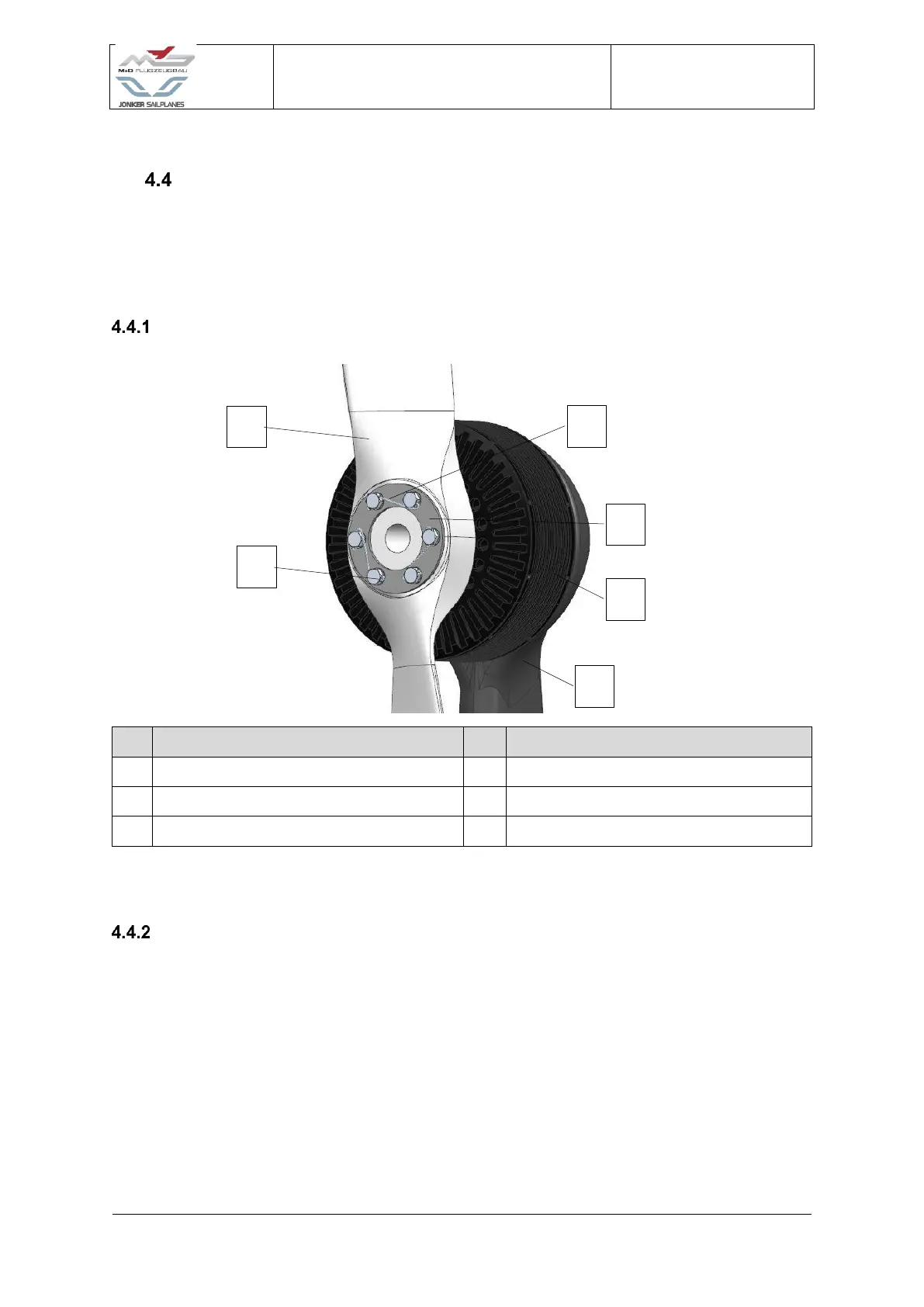

Figure 4-8 Propeller assembly

Maintenance & checks

4.4.2.1 Checks

• Before any run-up of the propeller be sure to check the propeller for any cracks, chips,

or any visible signs of stress or delamination. Verify that the locking wire is still in place

and not damaged.

• The propeller can be cleaned of any bugs and dirt after every flight using a damp cloth

or with water and car shampoo.

Description

Propeller

Propeller fastening bolts

Locking wire (Ø 0.025” Stainless steel)

Propeller ring

EMRAX 208 HV

Pylon
