Jonker Sailplanes JS3 RES User Manual

JS-MD 3 RES Maintenance Manual
Supplement
MD11-AMM-00-002
Issue: 00
Rev. 00
Rev. Date: 23-May-22
Page 6-7
Charger connector
The charge connector is located to the left of the seatback, in front of the oxygen bottle holder.
The charger connecter provides the connector interface for the high voltage charger to be able
to charge both or either high voltage batteries without removing the batteries from the
fuselage.
Wire number
Destination
Wire
number
Destination
001
Motor Controller
CAN_L
Refer to 6.17
002
Motor Controller
CAN_H
Refer to 6.17
142
DCU
37
GND
28
GND
138
Charge connector
133
RFU
135
Right Battery

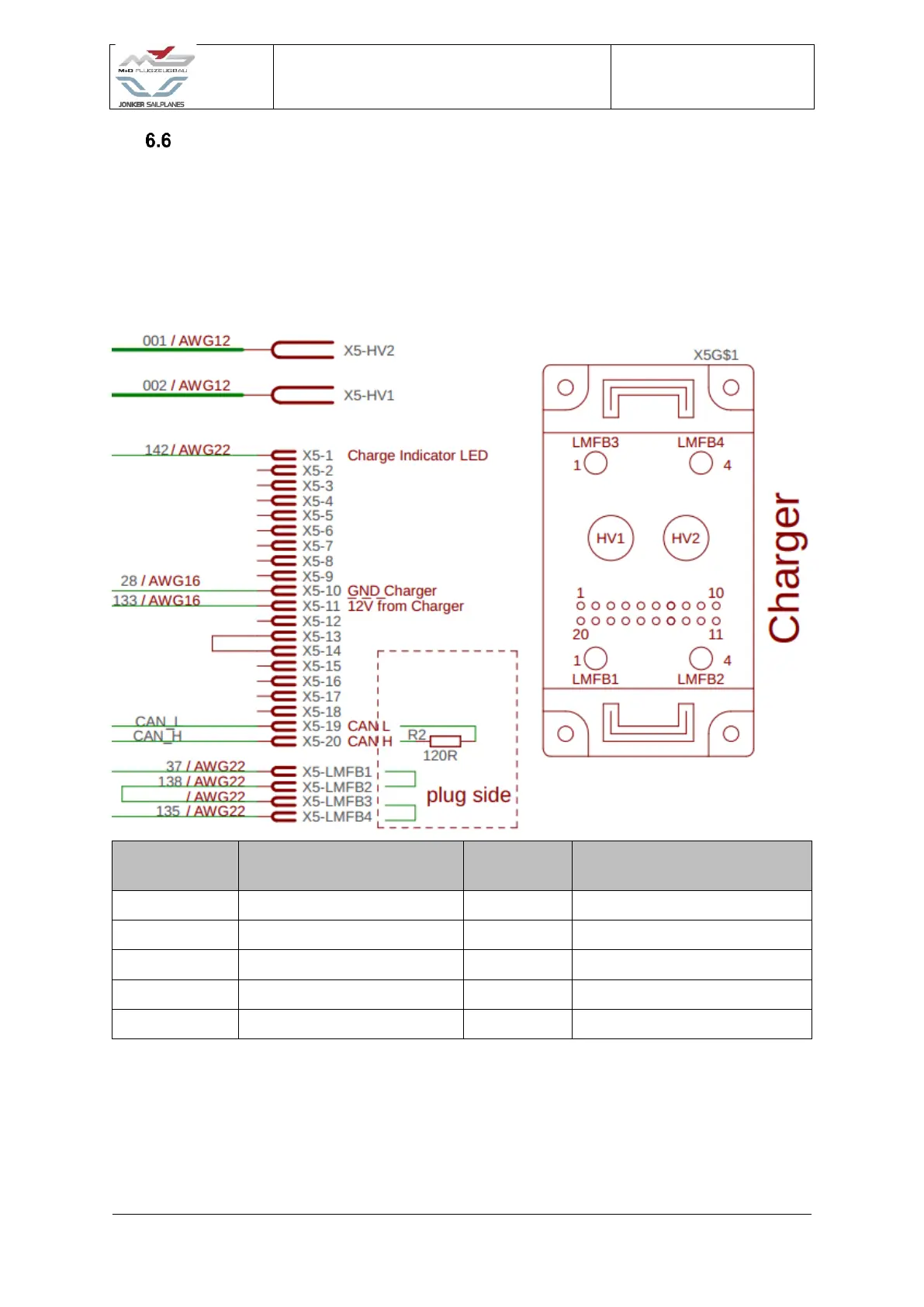

Figure 6-6 Charger connector wiring
CAUTION: Remember to include bridge between pin X5-13 and X5-14. Without this bridge
it will not be possible to charge the batteries in the aircraft.
