Jonker Sailplanes JS3 RES User Manual

JS-MD 3 RES Maintenance Manual
Supplement
MD11-AMM-00-002
Issue: 00
Rev. 00
Rev. Date: 23-May-22
Page 5-3

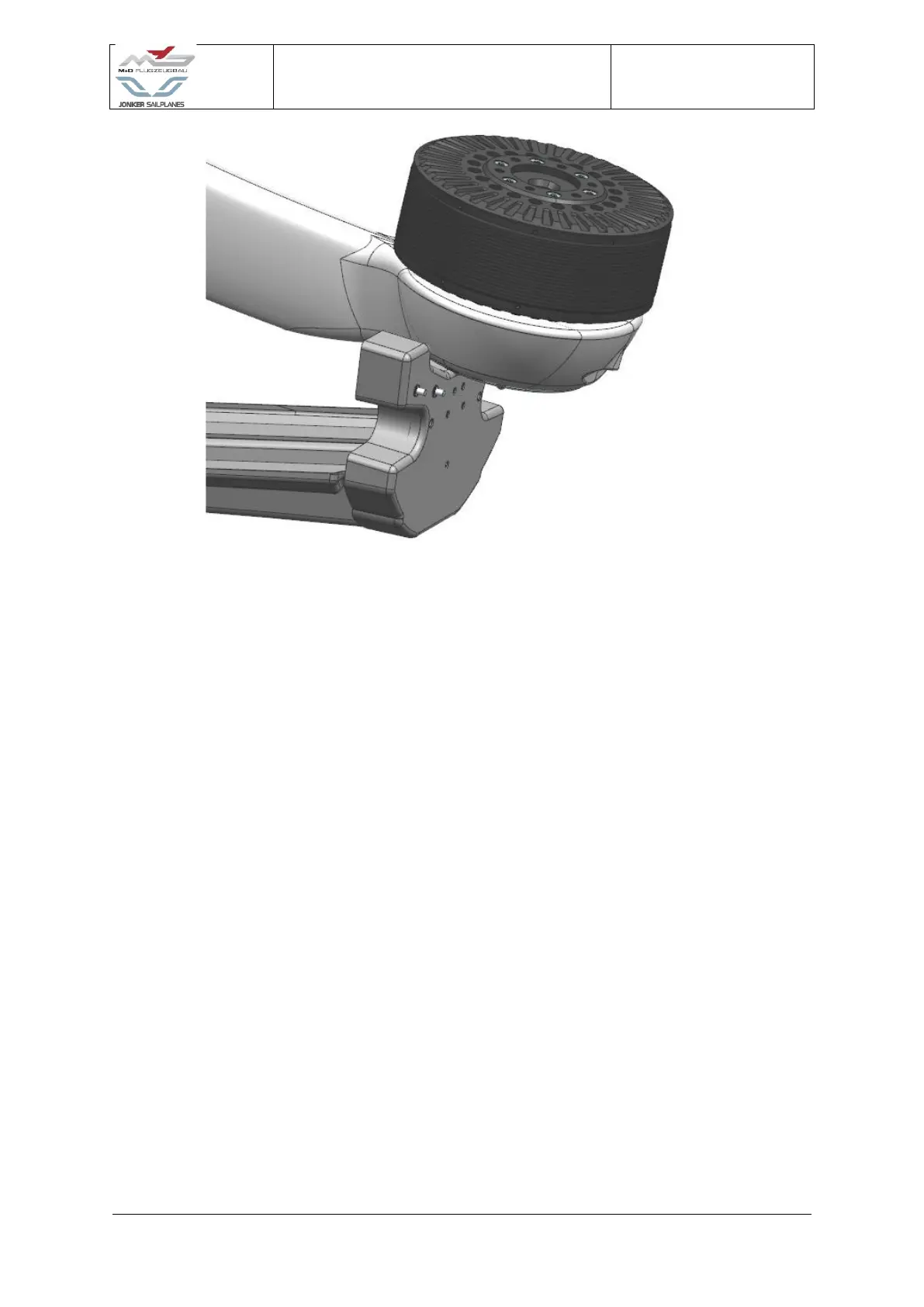

Figure 5-3 B9 Bulkhead
13. If the Pylon does not touch the bulkhead, adjust the pylon driver arm length
NOTE: The pylon driver arm length should not have to be adjusted if all of the geometry
lengths were matched before replacement and if they were not adjusted during
removal and installation.
14. Reconnect the main door drivers.
15. Cycle the actuator to ensure the pylon fully extends and retracts without any
interference.
16. Should the main doors not close properly refer to the Main door setup section.
