JS-MD 3 RES Maintenance Manual
Supplement
MD11-AMM-00-002
Issue: 00
Rev. 00
Rev. Date: 23-May-22
Page 4-14
2. Electrical motor section).
NOTE: The motor wires should pass the pylon sleeve on the front side of the pylon for
a neater installation.

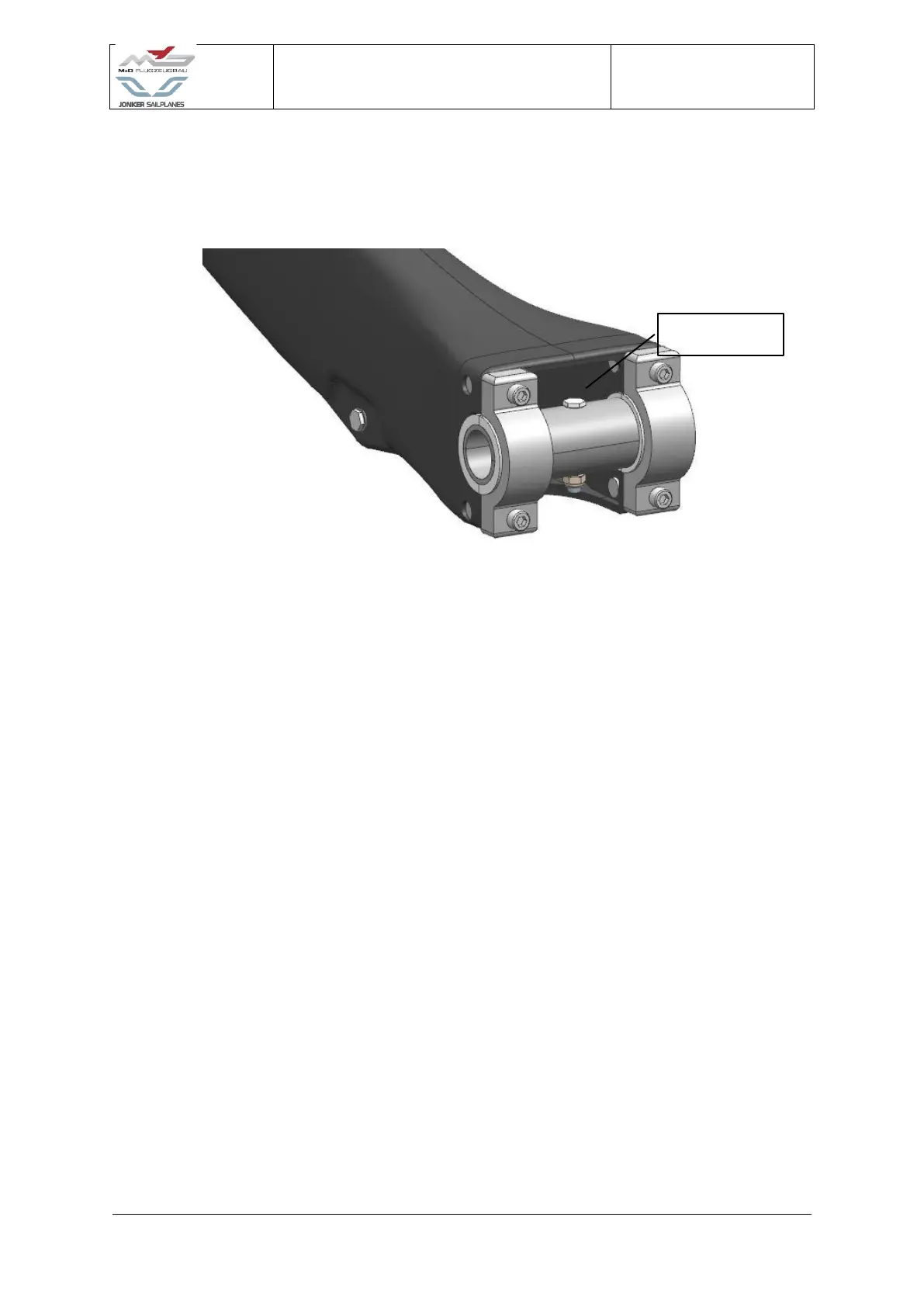

Figure 4-7 Motor wires routing
3. Fasten the Pylon sleeve (16) using the Pylon Sleeve bolt (17) and Pylon sleeve nut
(14).
4. Place the four Pylon base bushes (15) over the pylon sleeve (16).
5. Place the Pylon (6) in the correct position against the Pylon base bushes (15).
6. Place the Pylon base brackets (13) in the correct position against the Pylon base
bushes (15).
7. Fasten the pylon using the four Pylon base bracket bolts (12).
8. Attach the pylon driver arm to the pylon using the Pylon driver bolt (11).
9. Connect the various motor wires (refer to the
Front side
