Jonker Sailplanes JS3 RES User Manual

JS-MD 3 RES Maintenance Manual
Supplement
MD11-AMM-00-002
Issue: 00
Rev. 00
Rev. Date: 23-May-22
Page 6-18
Supplementary information and pictures
Interlocks & HV wiring

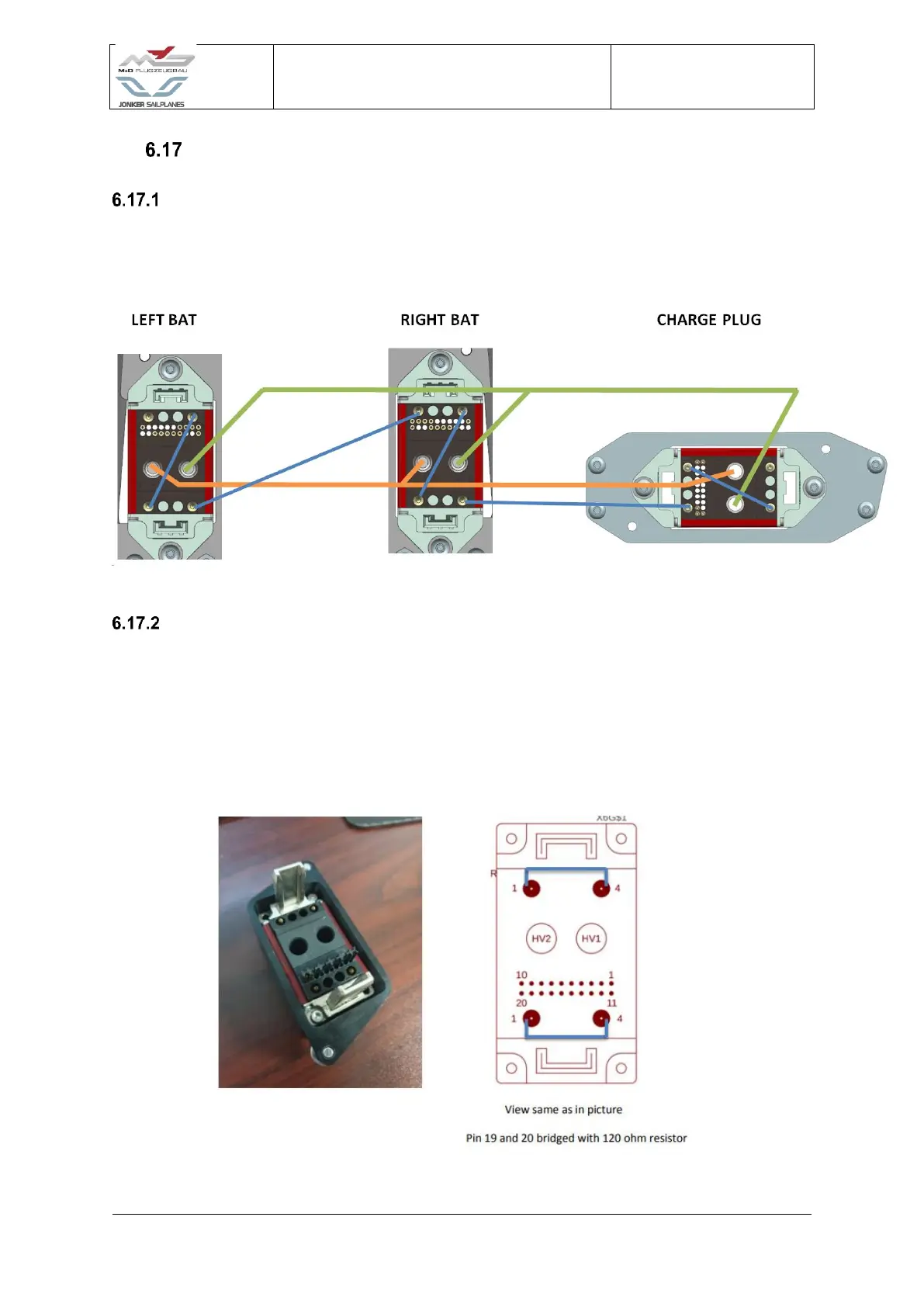

The diagrams illustrated in Figure 6-18 can be used to verify continuity between the illustrated
pins.
Figure 6-18 Interlock and HV wiring
Termination plugs
Two termination plugs are used on the aircraft as described below:
6.17.2.1 Charge socket termination plug
The charge socket termination plug is only removed to charge the HV batteries in the aircraft
or to disable the system.
Figure 6-19 Charge connector termination plug
