Pylon driver arm
The pylon driver arm is connected to the pylon and pylon bell crank as illustrated in Figure
4-5.
4.2.4.1 Overview
No
Description
No
Description
1
Pylon bell crank
2
Pylon driver arm bush
3
Pylon driver arm
4
Pylon driver arm lock
5
Pylon driver arm nut
6
Pylon driver arm bolt
7
Rod end
8
Pylon bolt
9
Pylon
10
Pylon driver arm lock bolt

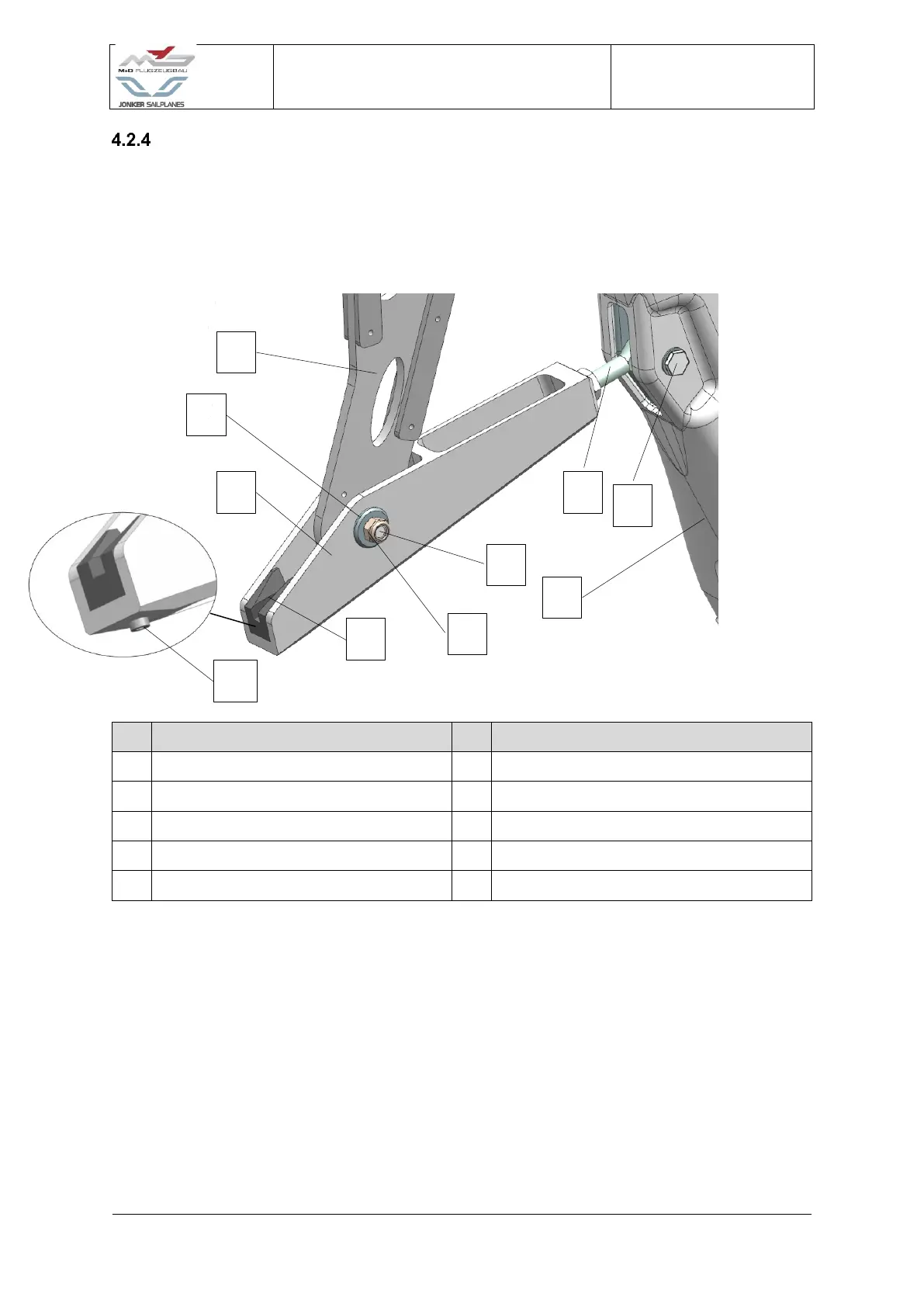

Figure 4-5 Pylon driver arm assembly
4.2.4.2 Removal
1. Extend the pylon to a position slightly below the extended position.
2. Switch off the RES master switch.
3. Remove the main doors.
4. Support the pylon slightly below the extended position.
5. Disconnect the Pylon driver arm (3) from the Pylon (9) by unfastening the Pylon bolt
(8).
4
3
1
9
7
8
2
5
6
10
