JS-MD 3 RES Maintenance Manual
Supplement
MD11-AMM-00-002
Issue: 00
Rev. 00
Rev. Date: 23-May-22
Page 10-3
Battery status indicators
The high voltage status indicators are located on top of the battery close to the high voltage
connector.

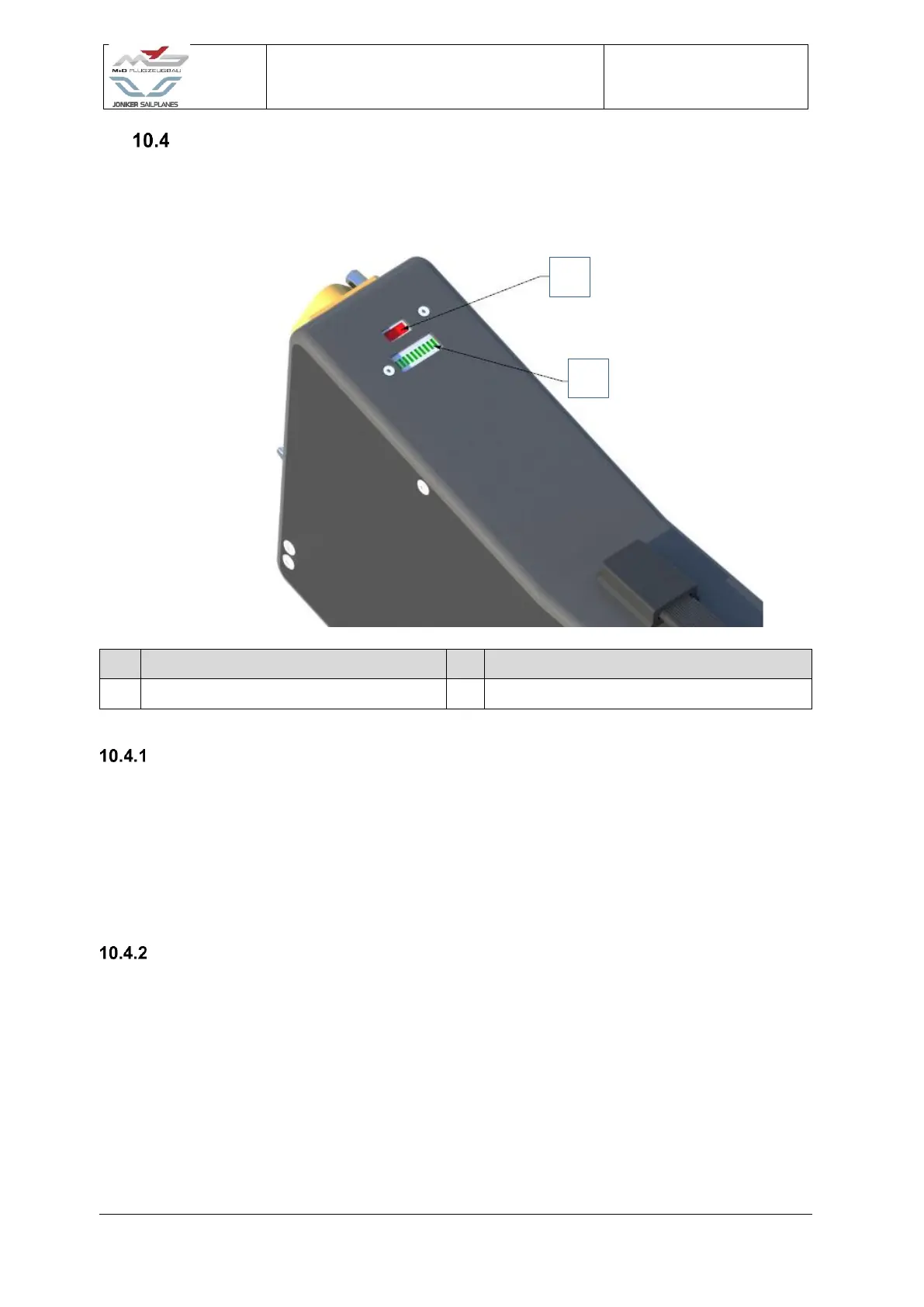

Figure 10-2 Battery status indicators
High voltage indicator
The high voltage indicator only lights up when the battery is connected to the aircraft or charger.
The high voltage indicator lights up when the high voltage pins are activated. When the battery
is switched off, it can take up to 10 seconds for the high voltage to dissipate.
WARNING: The battery should never be handled if this indicator is on.
Status indicator
The status indicator only lights up when the battery is connected to the aircraft or charger. The
individual lights indicate the state of charge (SOC) of the battery. Each indicial light corresponds
to 10% capacity, if four bars are lit – the battery has a 40% state of charge.
CAUTION: An error is indicated when all of the bars light up and start to flash in
approximately 1-second intervals.
No
Description
No
Description
1
High voltage indicator
2
Status Indicator
1
2
