JS-MD 3 RES Maintenance Manual
Supplement
MD11-AMM-00-002
Issue: 00
Rev. 00
Rev. Date: 23-May-22
Page 5-2

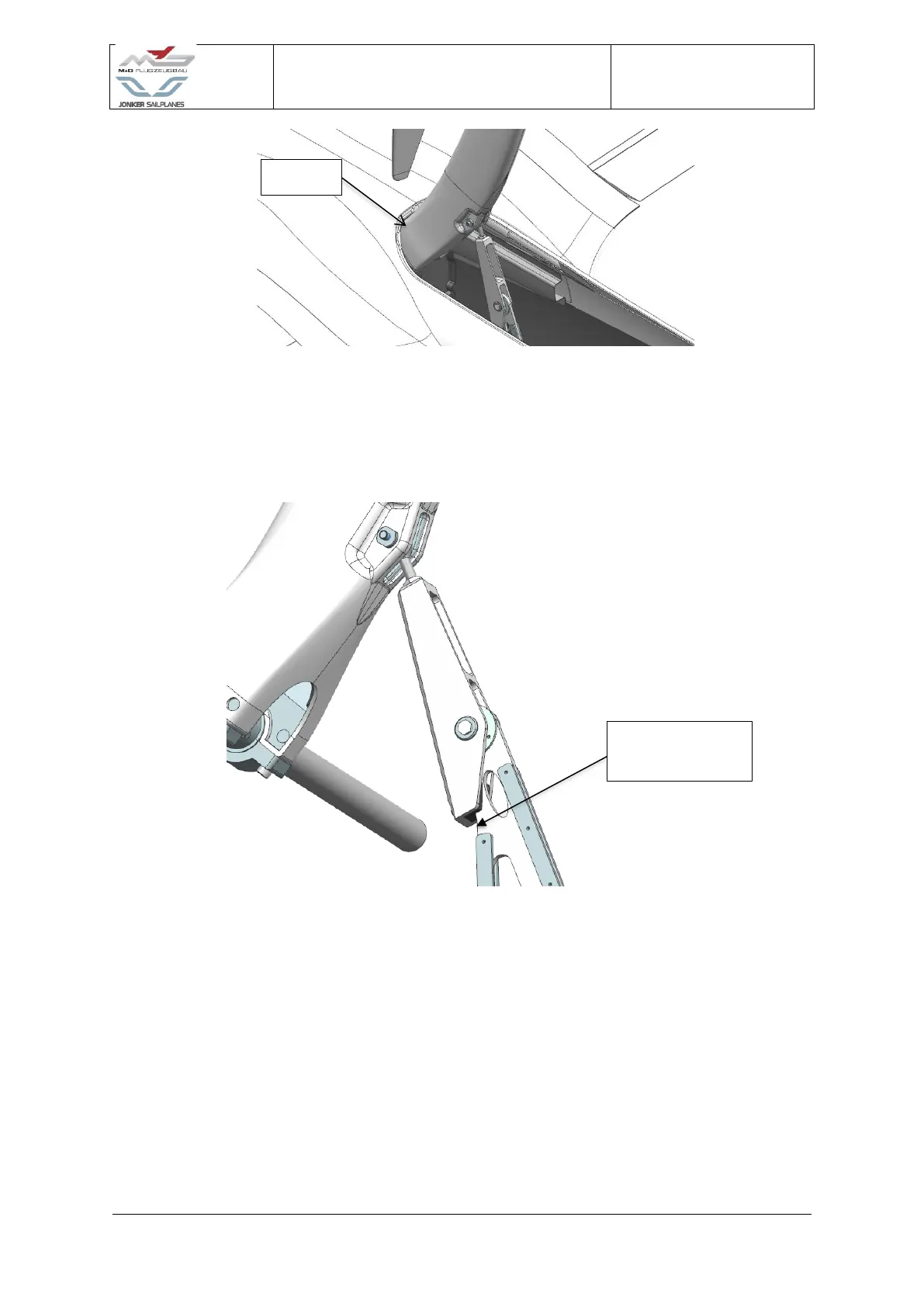

Figure 5-1 Fuselage clearance
WARNING: The pylon driver arm must lock into the pylon driver arm lock. If the joint does
not fully extend it could overload the supporting structures causing mechanical
failures.
Figure 5-2 Pylon driver arm extension
12. Slowly retract the pylon. The pylon should fully retract and lightly touch the bulkhead.
The pylon should not press too hard into the bulkhead as illustrated in Figure 5-3.
CAUTION: The battery latches should always be locked, if not, the motor will crash into
the battery latch during retraction, preventing full retraction.
Clearance
Pylon driver arm fully
extended and locked
