JS-MD 3 RES Maintenance Manual

Supplement

MD11-AMM-00-002

Issue: 00

Rev. 00

Rev. Date: 23-May-22

Page 6-6

Left battery connector

The left battery connector is located in the rear fuselage compartment and is the connector

interface for the left high voltage battery.

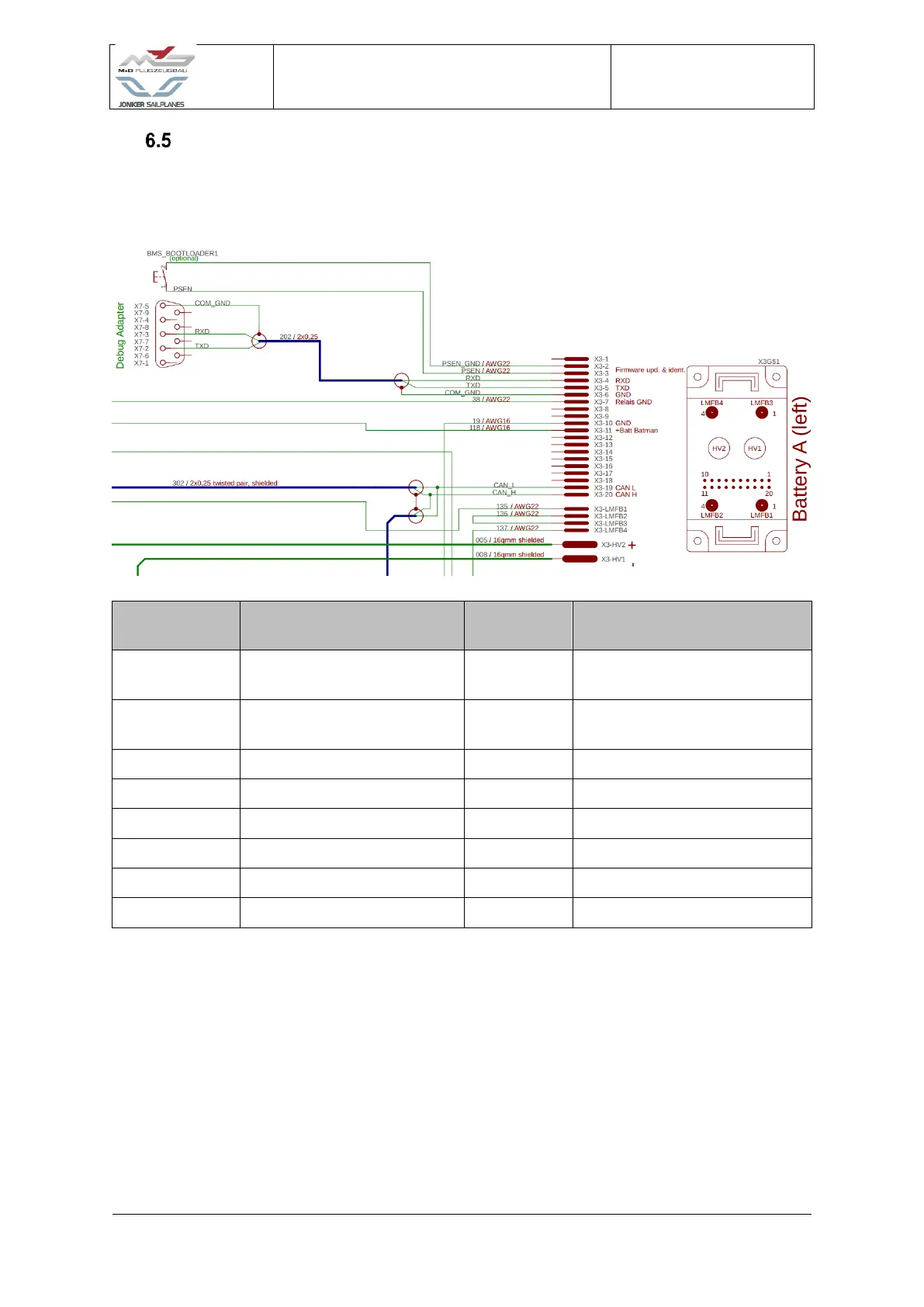

Figure 6-5 Left battery connector wiring

NOTE: The debug adapter and bootloader switch is optional.

Wire number

Destination

Wire

number

Destination

PSEN_GND

BMS Bootloader

(Optional)

118

RFU

P_SEN

BMS Bootloader

(Optional), 118

CAN_L

Refer to 6.17

RXD

Debug adapter

CAN_H

Refer to 6.17

TXD

Debug adapter

135

DCU

COM_GND

Debug adapter

136

Left battery

GND

137

Right Battery

GND

005

Motor Controller

008

Motor Controller
