Jonker Sailplanes JS3 RES User Manual

JS-MD 3 RES Maintenance Manual
Supplement
MD11-AMM-00-002
Issue: 00
Rev. 00
Rev. Date: 23-May-22
Page 6-10
Motor, motor controller and resolvers
The resolvers provide position and rotation feedback to the motor controller which powers the
motor.

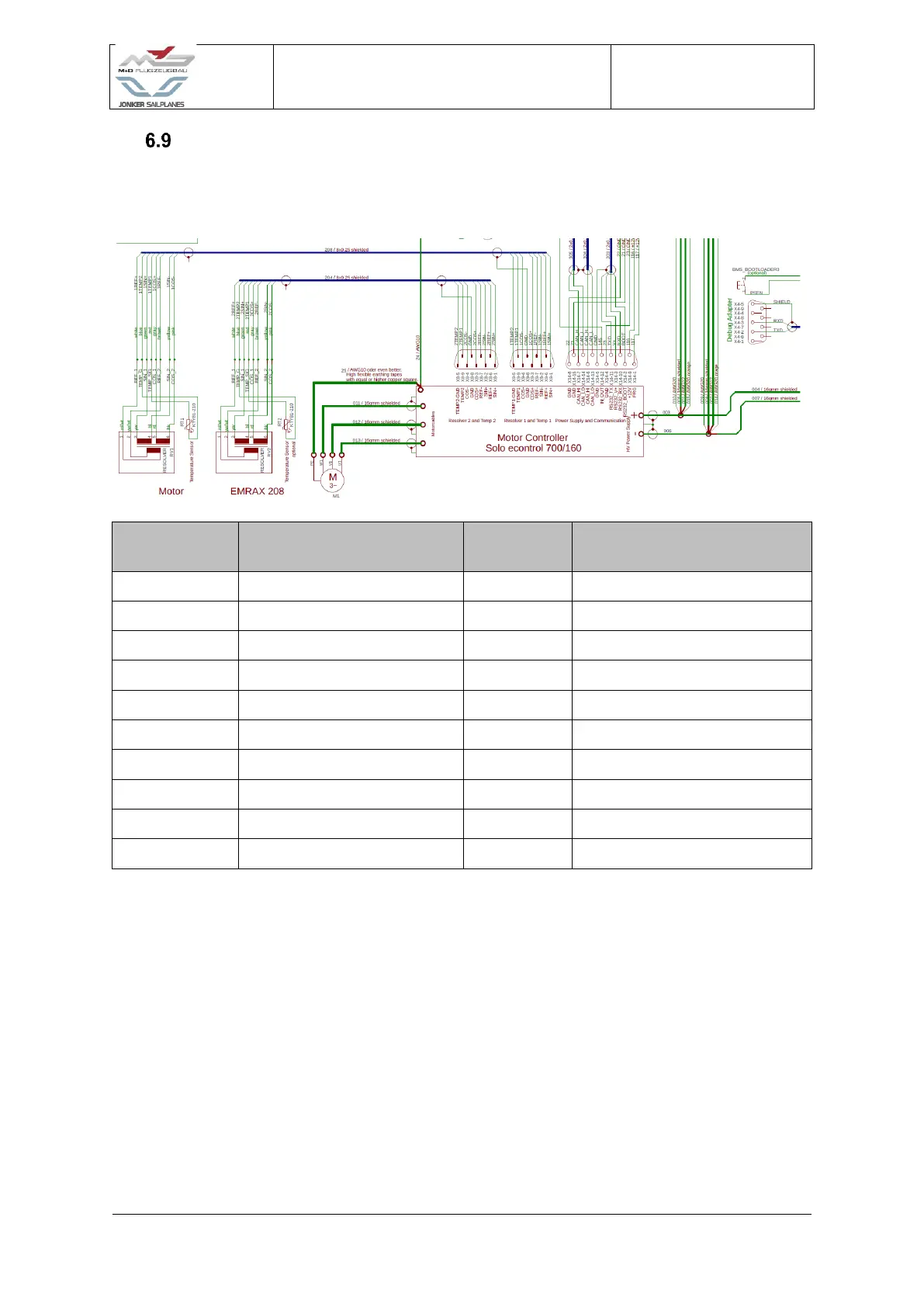

Figure 6-9 Motor, motor controller, and resolvers wiring
CAUTION: The motor controller PCB ground wire should be connected to the ground bolt
as indicated in the removal and installation section of the motor controller
assembly.
Wire number
Destination
Wire
number
Destination
010
IMD
004
Right battery connector
005
Left Battery connector
007
Right battery connector
001
Charger connector
22
GND
015
DC-DC
21
GND
009
IMD
23
GND
008
Left Battery connector
116
DCU
002
Charge connector
117
DCU
014
DC-DC
24
GND
CAN_L
Refer to 6.17
CAN_H
Refer to 6.17
145
RCB
