JS-MD 3 RES Maintenance Manual

Supplement

MD11-AMM-00-002

Issue: 00

Rev. 00

Rev. Date: 23-May-22

Page 6-13

Avionic batteries

There are two avionic batteries located within the aircraft. The one battery is located within a

hatch in the seat pan, aft of the control stick. The other avionic battery is located behind the

seatback.

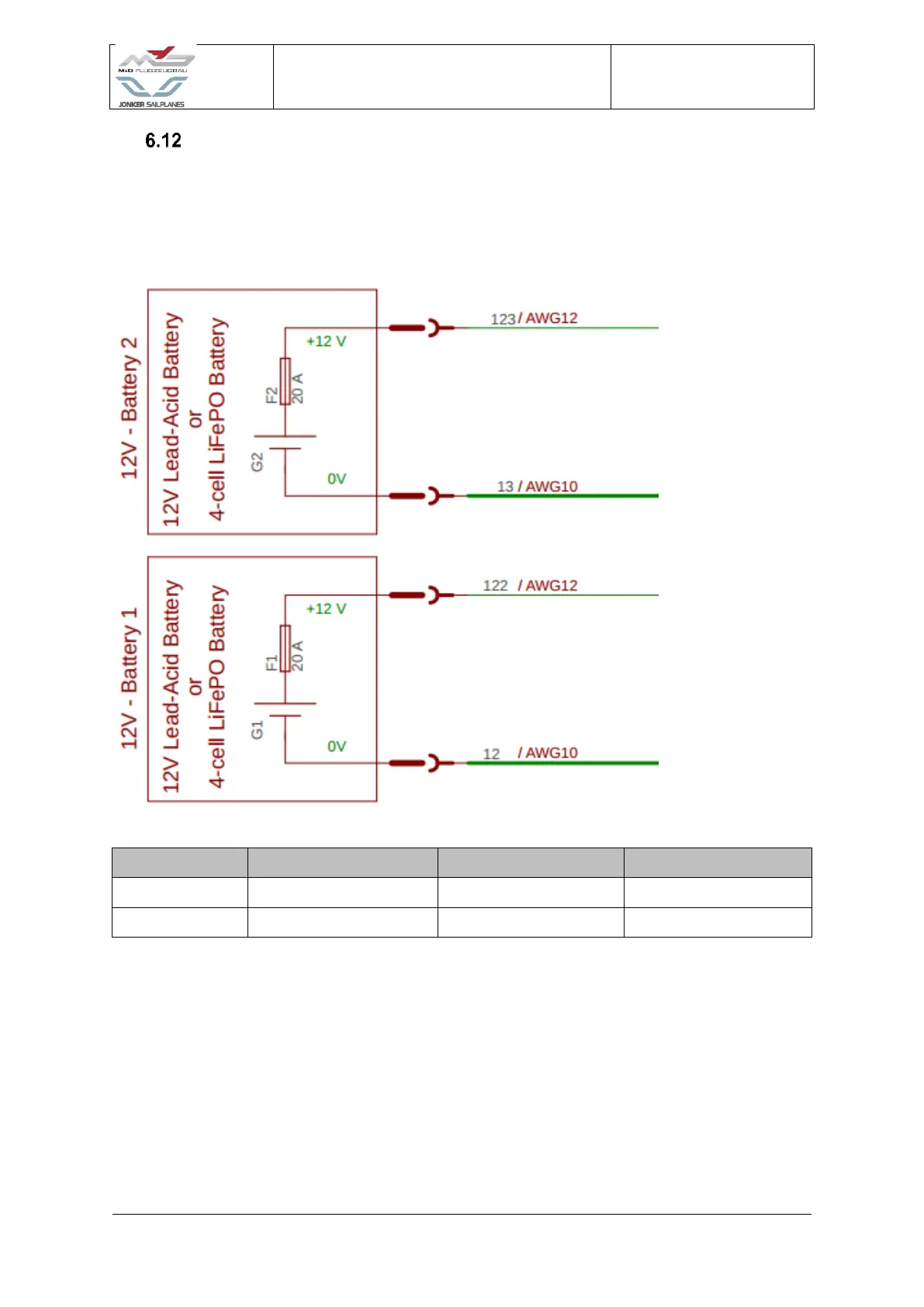

Figure 6-12 Avionics battery wiring

Wire Number

Destination

Wire Number

Destination

123

RCB

122

RCB

GND
