JS-MD 3 RES Maintenance Manual

Supplement

MD11-AMM-00-002

Issue: 00

Rev. 00

Rev. Date: 23-May-22

Page 2-4

Electrical components

The electrical system consists of the following electrical components:

• HV Batteries (removable)

• Avionic Batteries (removable)

• Display and control unit (DCU)

• Motor Controller assembly

• Cooling system

• RES Control Board (RCB)

• DC-DC converter (400 V - 12 V)

• Retraction and Fuses Unit (RFU)

• Insulation monitoring device (IMD)

• Charging Port (Optional)

• HV Connectors

• Wiring Looms

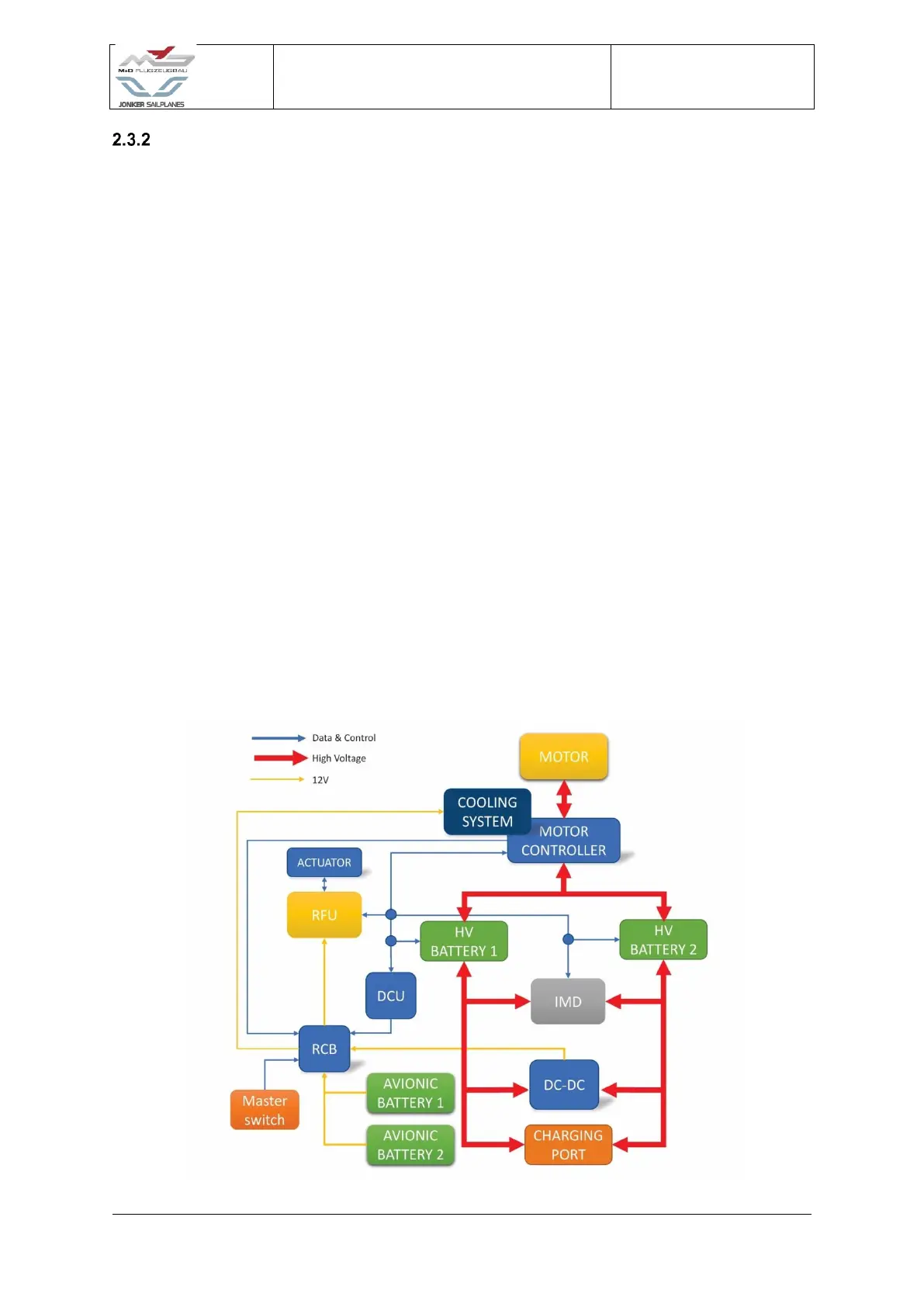

The electrical components interact with each other as illustrated in Figure 2-4:
