Jonker Sailplanes JS3 RES - Page 27

JS-MD 3 RES Maintenance Manual
Supplement
MD11-AMM-00-002
Issue: 00
Rev. 00
Rev. Date: 23-May-22
Page 4-3
Actuator
The assembly is driven by a 12 V actuator which is controlled by the DCU and RFU. The
actuator has built-in limit switches and a hall effect sensor to monitor the extension and
retraction of the pylon.

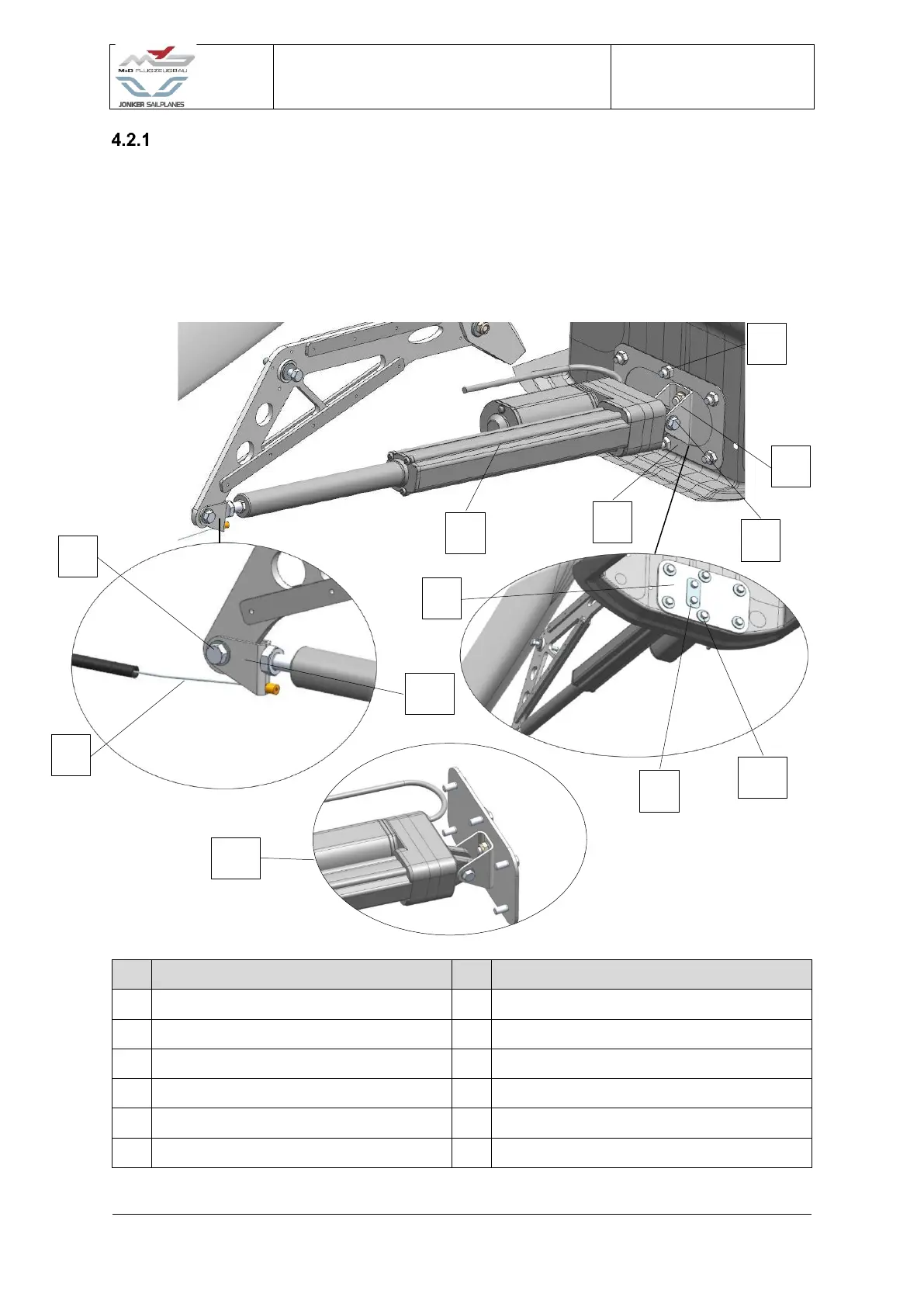

4.2.1.1 Overview
No
Description
No
Description
1
Actuator bracket bolt
2
Actuator bracket
3
Actuator bolt
4
Wheelbox actuator cover blackplate
5
Actuator
6
Bell crank bolt
7
Door close cable
8
Wheelbox actuator cover plate
9
Wheelbox actuator back plate
10
Wheelbox cover plate bolts
11
Actuator front
12
Sub assembly
10
5
4
3
6
7
1
8
9
2
11
12
