Water cooled motor controller assembly
The water cooled motor controller assembly is installed above the wheel box between
Bulkhead B7 and B8 below the wing spars.
The controller board is housed in a aluminium enclosure. High voltage wiring is connected to
the rear of the motor controller assembly, facing the tail of the aircraft. Liquid cooling system
tubes are connected controller unit.
4.11.2.1 Overview
No.
Description
No.
Description
1
B5 Bulkhead
2
Motor controller assembly
3
Controller box stands
4
Wheel Box

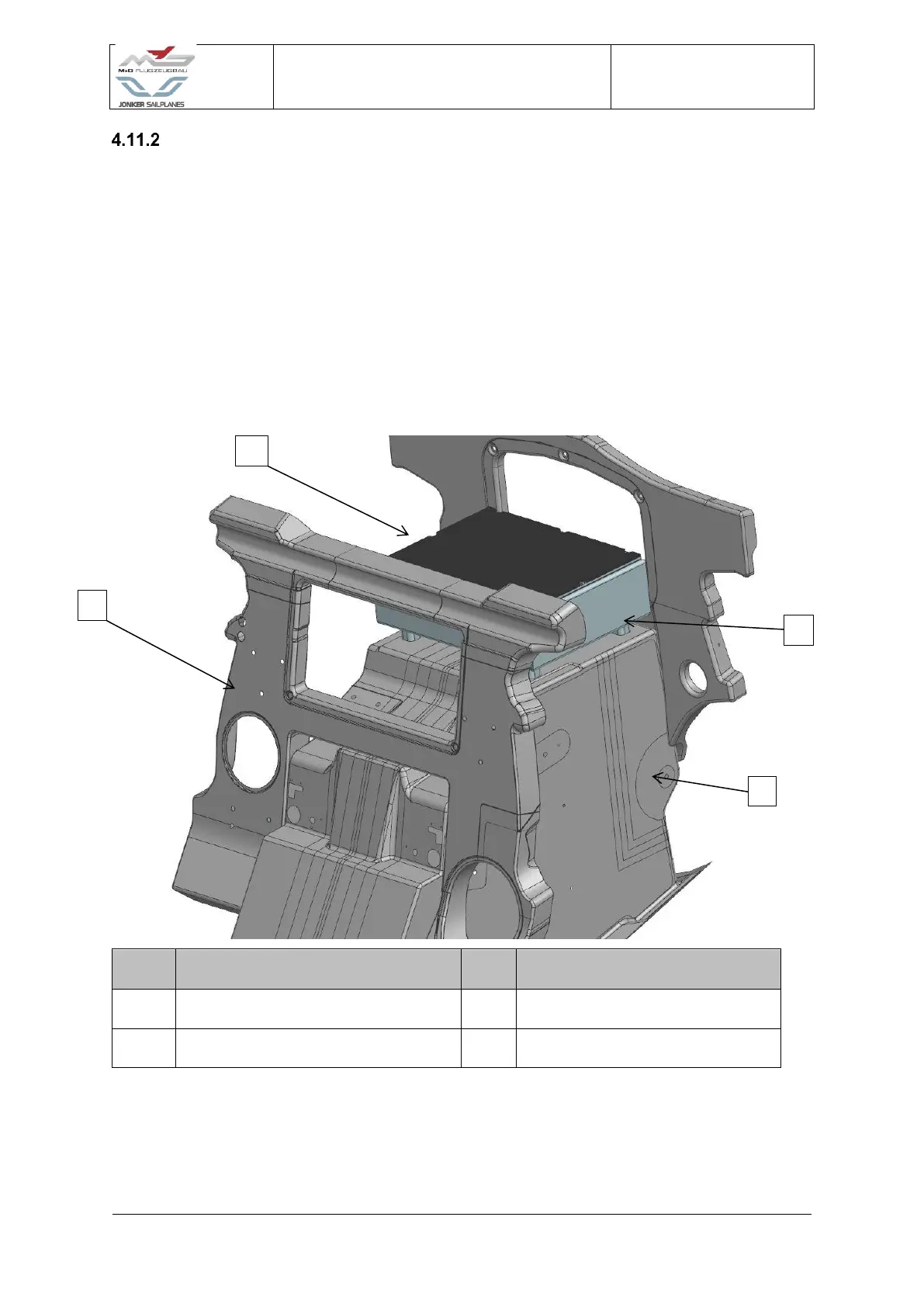

Figure 4-23 Aluminium motor controller overview
1
2
3
4
