JS-MD 3 RES Maintenance Manual

Supplement

MD11-AMM-00-002

Issue: 00

Rev. 00

Rev. Date: 23-May-22

Page 4-54

4.11.2.2.4 Removal of the motor controller assembly PCBs

Two PCBs are located within the motor controller assembly:

• Motor controller PCB

• D-sub assembly

No.

Description

No.

Description

Cold Plate

Cold plate mount bolts

Position to hold motor controller

assembly

Box assembly

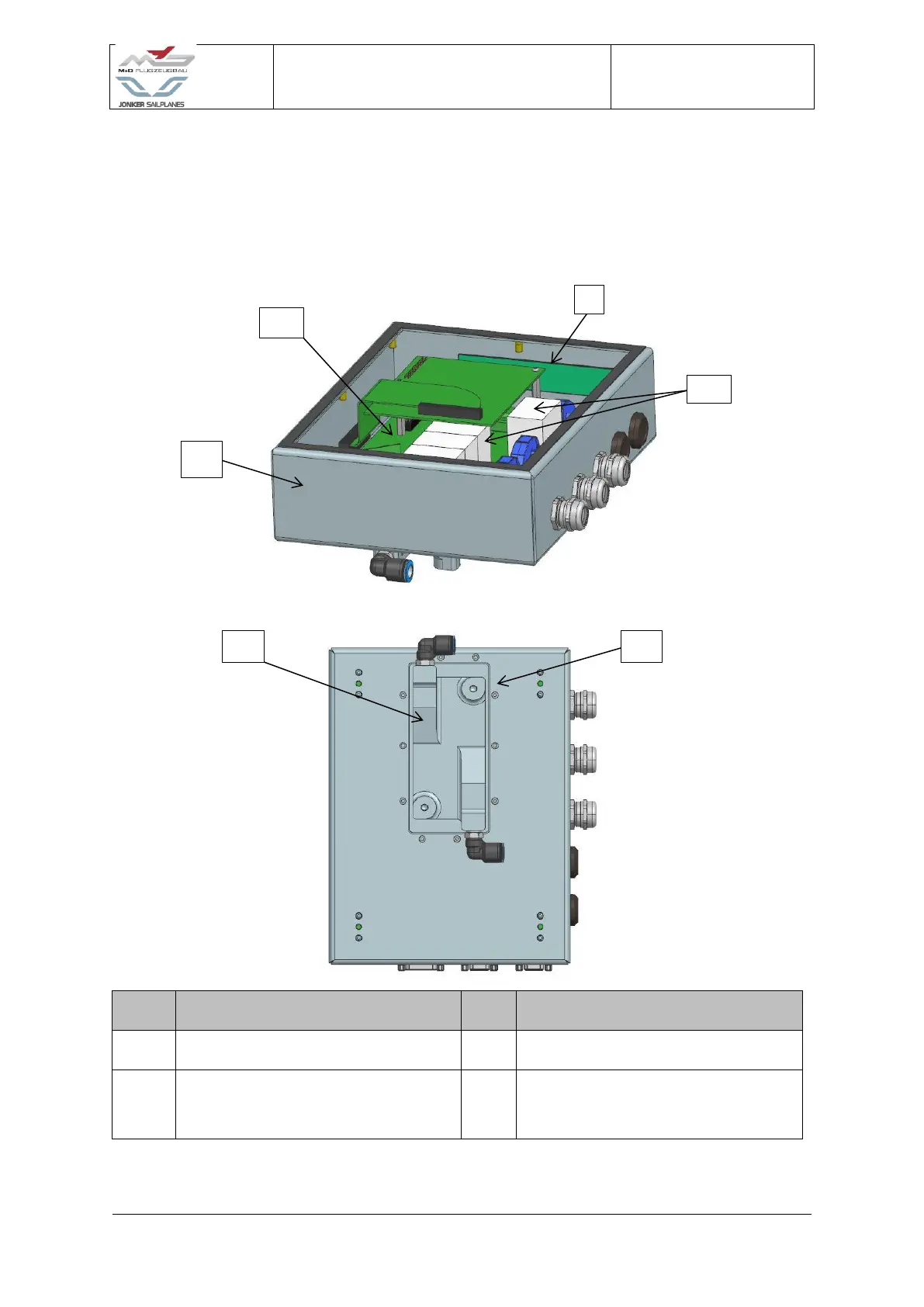

Figure 4-28 Motor controller assembly bottom view
