4.11.2.2.5 Removal of radiator assembly
The radiator assembly is supported by the Radiator support plate (1)
No.
Description
No.
Description
20
Radiator support plate
21
Fan
22
Radiator
23
Water pump
24
Water pump bracket
25
Radiator mounting bolts
26
Water pump mounting bolt

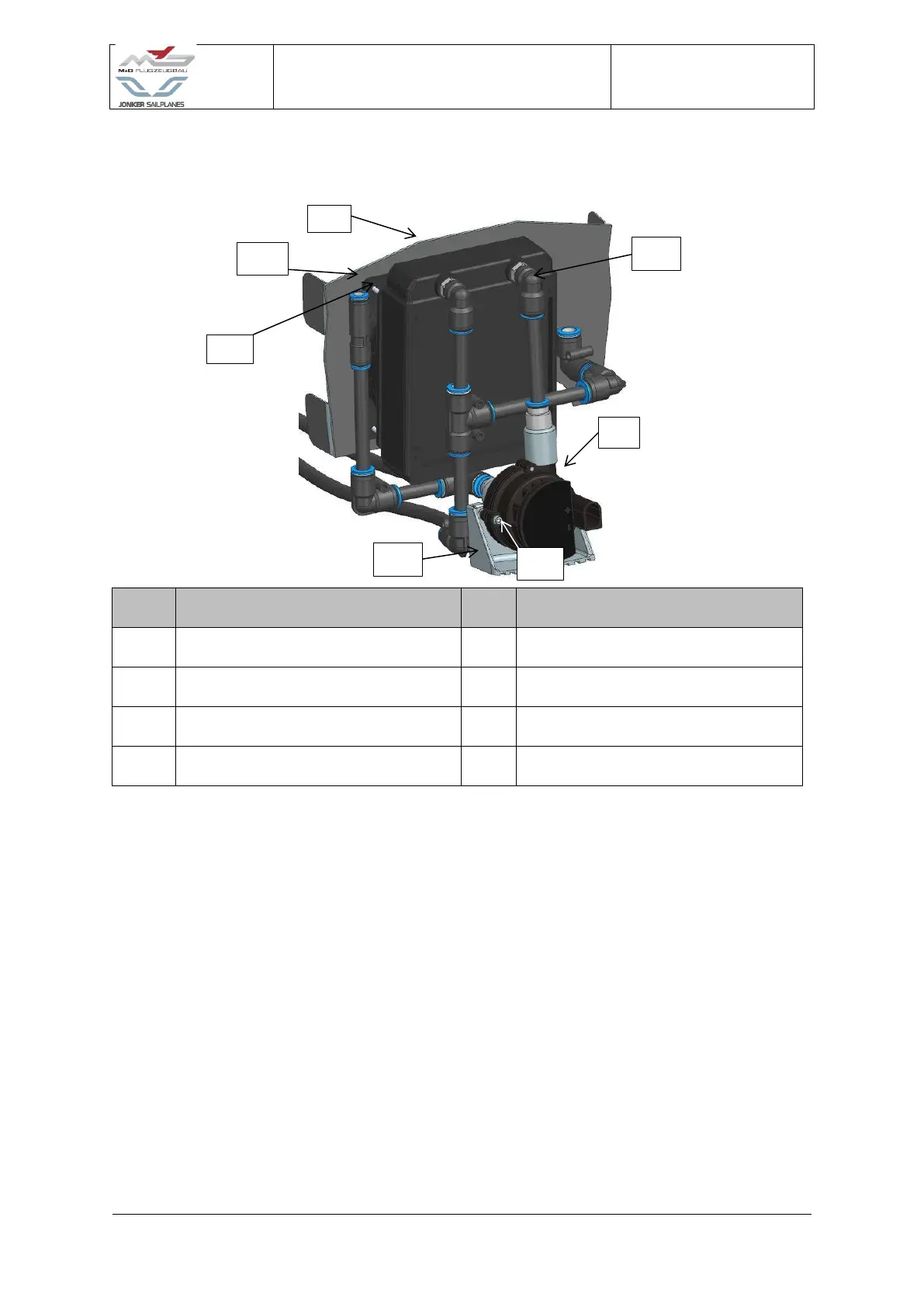

Figure 4-29 Radiator assembly
1. Disconnect water lines from Radiator (22) fittings.
Caution: Avoid water spillage.
2. Loosen and remove the Radiator mounting bolts (25).
3. Remove the Radiator (22), Fan guard and Fan (21) from the aircraft.
4. Remove the water lines from the Water pump (24).
5. Loosen the Water pump mounting bolt (26) from the bracket. DO NOT remove the bolt
from the water pump.
6. Remove the water lines from the aircraft.
20
21
22
2
3
24
25
26
