Jonker Sailplanes JS3 RES User Manual

JS-MD 3 RES Maintenance Manual
Supplement
MD11-AMM-00-002
Issue: 00
Rev. 00
Rev. Date: 23-May-22
Page 4-71
Overview
No
Description
No
Description
1
DC-DC front bracket
2
DC-DC fastening bolts
3
DC-DC converter
4
DC-DC rear bracket

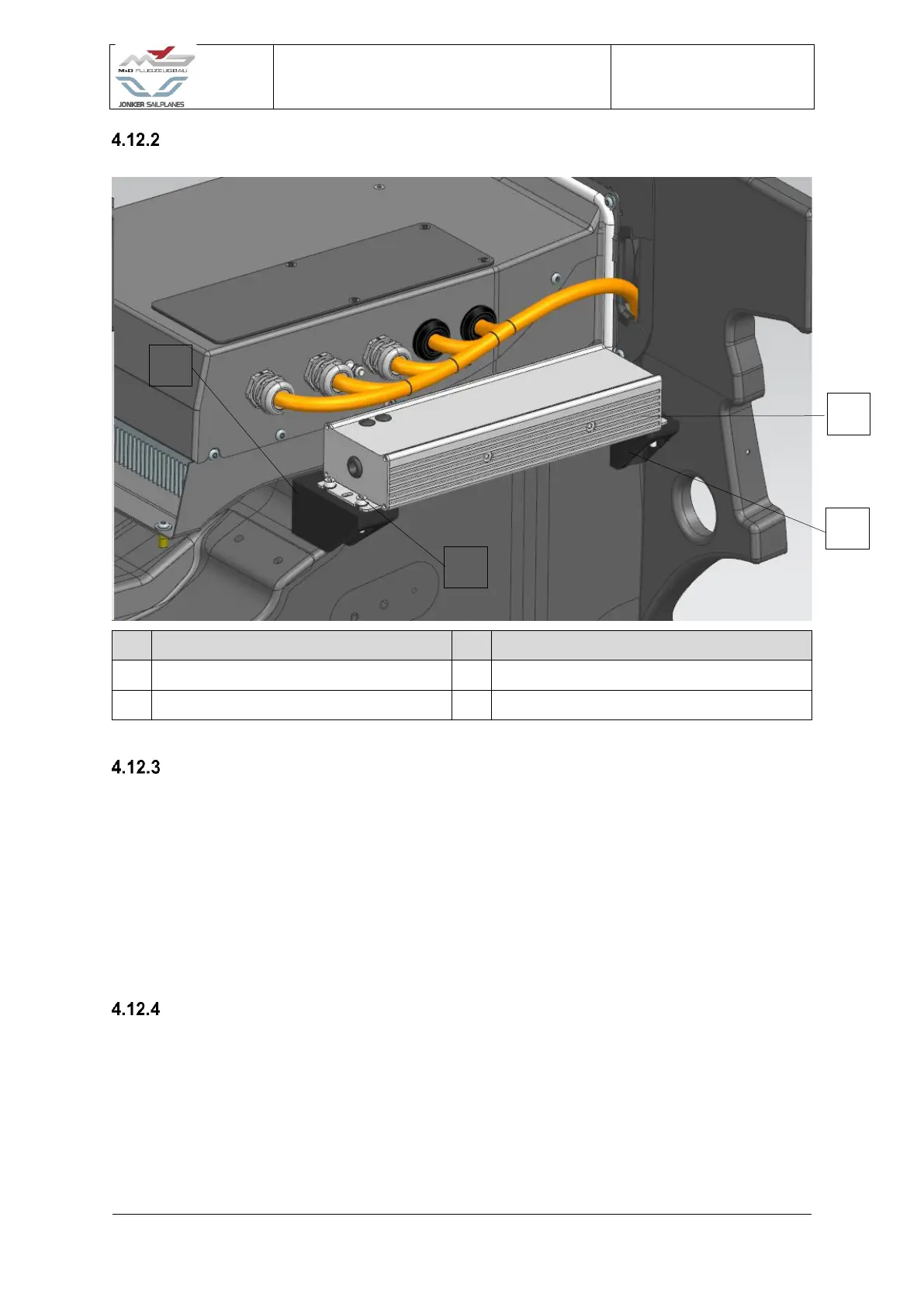

Figure 4-36 DC-DC converter
Removal
1. Ensure the master switch of the system is switched off.
2. Derig the glider.
3. Disconnect the DC-DC converter wires.
4. Loosen and remove the four DC-DC fastening bolts (2).
5. Remove the DC-DC converter (3) from the fuselage.
Installation
1. Insert the DC-DC converter (3) into the fuselage.
2. Fasten the DC-DC converter (3) to the front and rear DC-DC brackets using the four
DC-DC fastening bolts (2).
CAUTION: Be careful not to push out the captive nuts while inserting the fastening bolts.
2
1
3
4
