Chapter 2 OPERATIONS
2.7 SOFT KEY OPERATION
2-69
2
INSTRUCTION MANUAL
Soft key 3: 3sec 5sec 10sec 30sec 1min 3min 5min
10min 30min 60min 1NM 3NM 5NM 10NM
The storage interval of the own ship's track is changed.
A preset time interval or preset distance interval can be selected as the storage interval.
The distance setting varies depending on the range scale unit setting.
NM range: 1NM, 3NM, 5NM, 10NM
km range: 1km, 3km, 5km, 10km
sm range: 1sm, 3sm, 5sm, 10sm
Soft key 4: On Off
"On": This system starts saving the position of the own ship's track.
"Off": This system stops saving the position of the own ship's track.
2.7.20 USING EVENT MARKS
Displays the event marks.
Reference:
Bearing signal input and latitude/longitude data input are required to display event marks.
Up to 200 lines/marks can be displayed for lines, marks and event marks in total.
This function is initially set to off. To use this function, set this to on by referring to
"■ Soft Key Menu Setting" in "4.10 Control" of the Installation Manual.

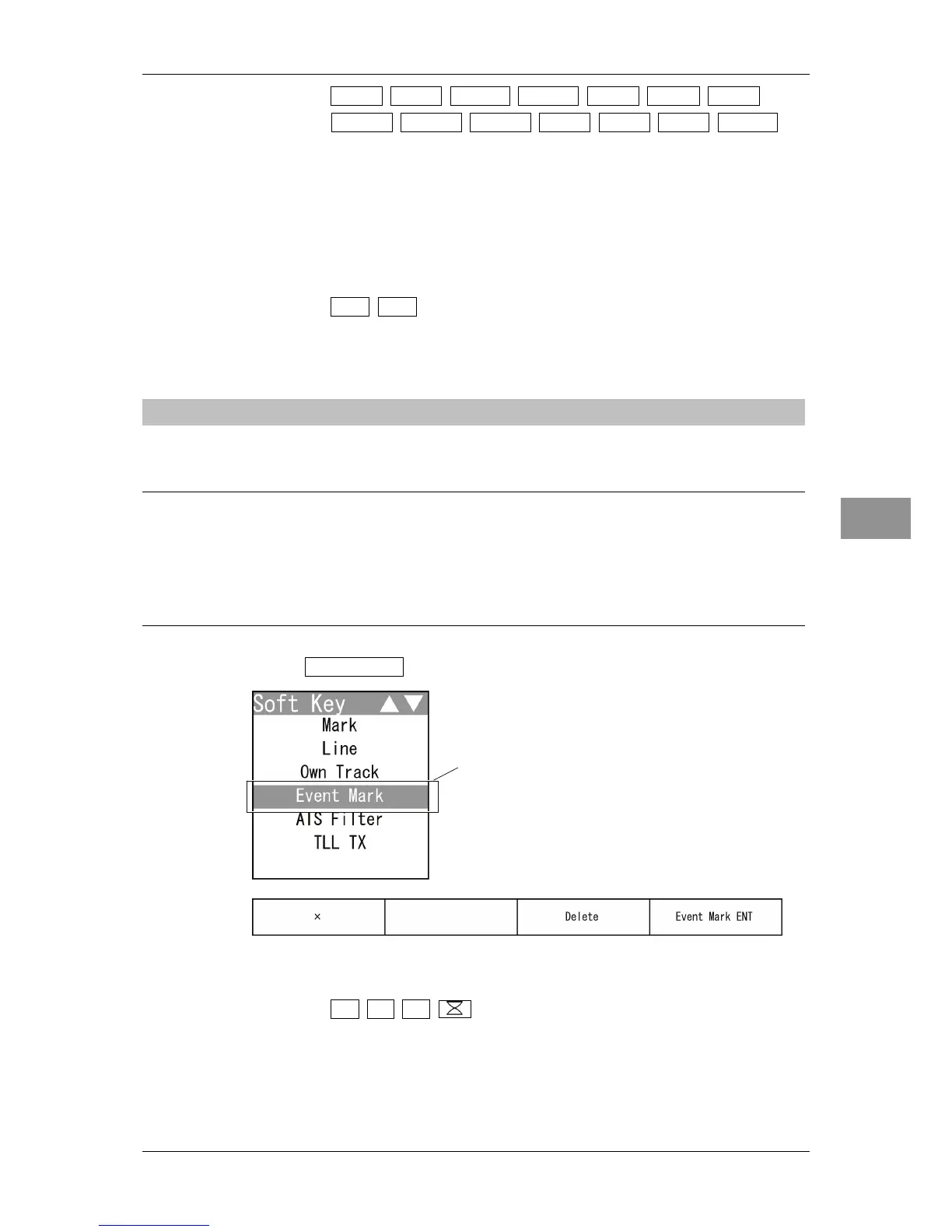

1 Select Event Mark on the soft key menu.
The "Event Mark" soft key display appears.
2 Operate with the soft keys.
Soft key 1: X + Y
The mark type of a target is changed.
Soft key 2: Not available
"Event Mar
