Chapter 2 OPERATIONS
2.7 SOFT KEY OPERATION
2-26

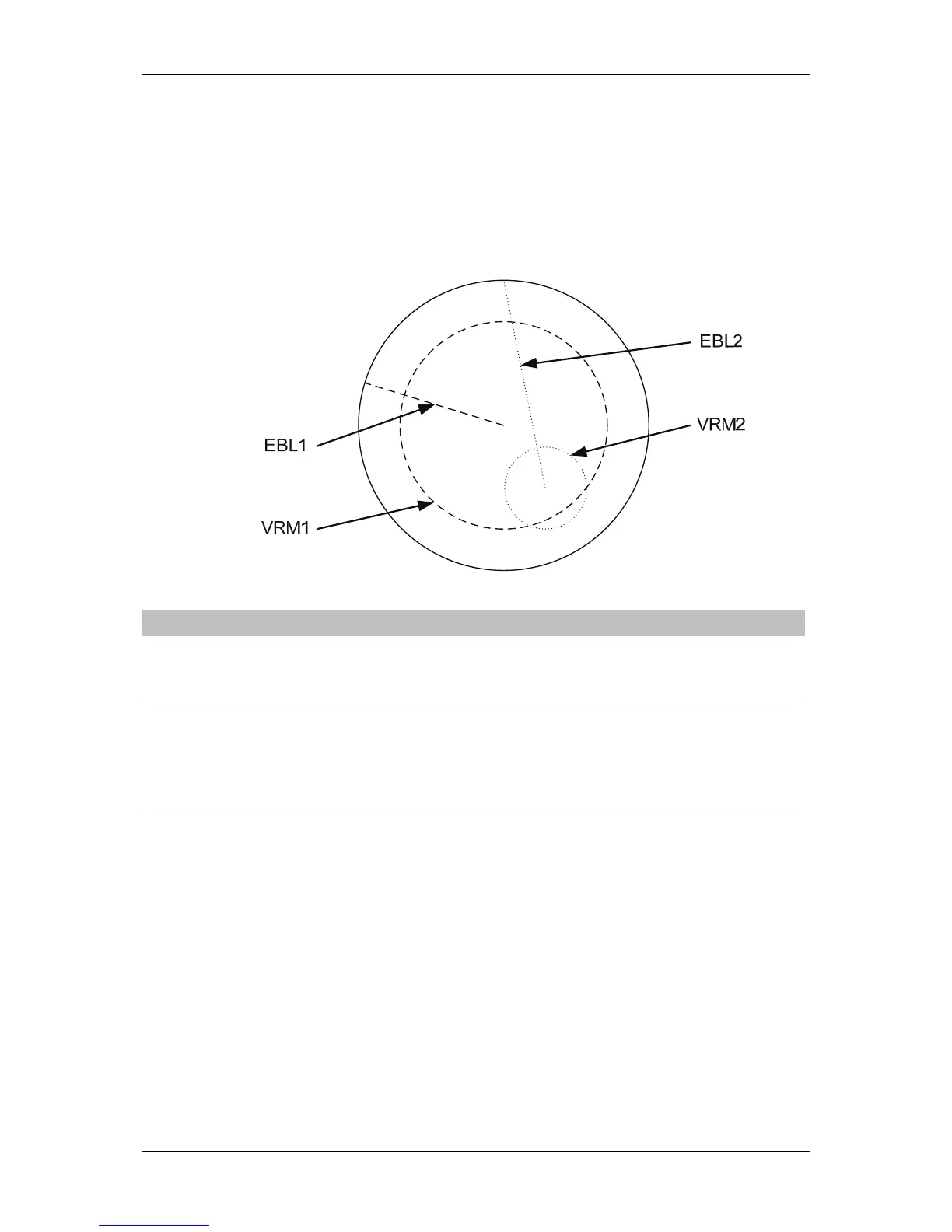

Variable Range Marker
VRM1 is represented as a broken line, and VRM2 as a dotted line. When EBL1 is
displayed, VRM1 marker appears on the EBL1. When EBL2 is displayed, VRM2 marker
appears on the EBL2.
If the starting point of an EBL is offset, the center of a VRM marker is positioned at the
starting point of the EBL.
2.7.3 SETTING VECTORS
Sets TT and AIS vectors.
Reference:
The bearing input is required to display TT and AIS vectors.
This function is initially set to off. To use this function, set this to on by referring to "■
Soft Key Menu Setting" in "4.10 Control" of the Installation Manual.
To Next Page
