Chapter 2 OPERATIONS
2.7 SOFT KEY OPERATION
2-71
2
INSTRUCTION MANUAL
2 Operate with the soft keys.
Soft key 1: Off Range
Switches between Off and Range..
"Range": A filter is set in a circle with a set range as the radius.
Soft key 2: Off On
"Off": The filter is not displayed.
"On": The filter is displayed.
2.7.22 USING TLL TX
Reference:
This function is initially set to off. To use this function, set this to on by referring to
"■ Soft Key Menu Setting" in "4.10 Control" of the Installation Manual.
Sets the TLL TX.
Transmits the TLL sentence of the cursor position on the screen to inform the mark
position.

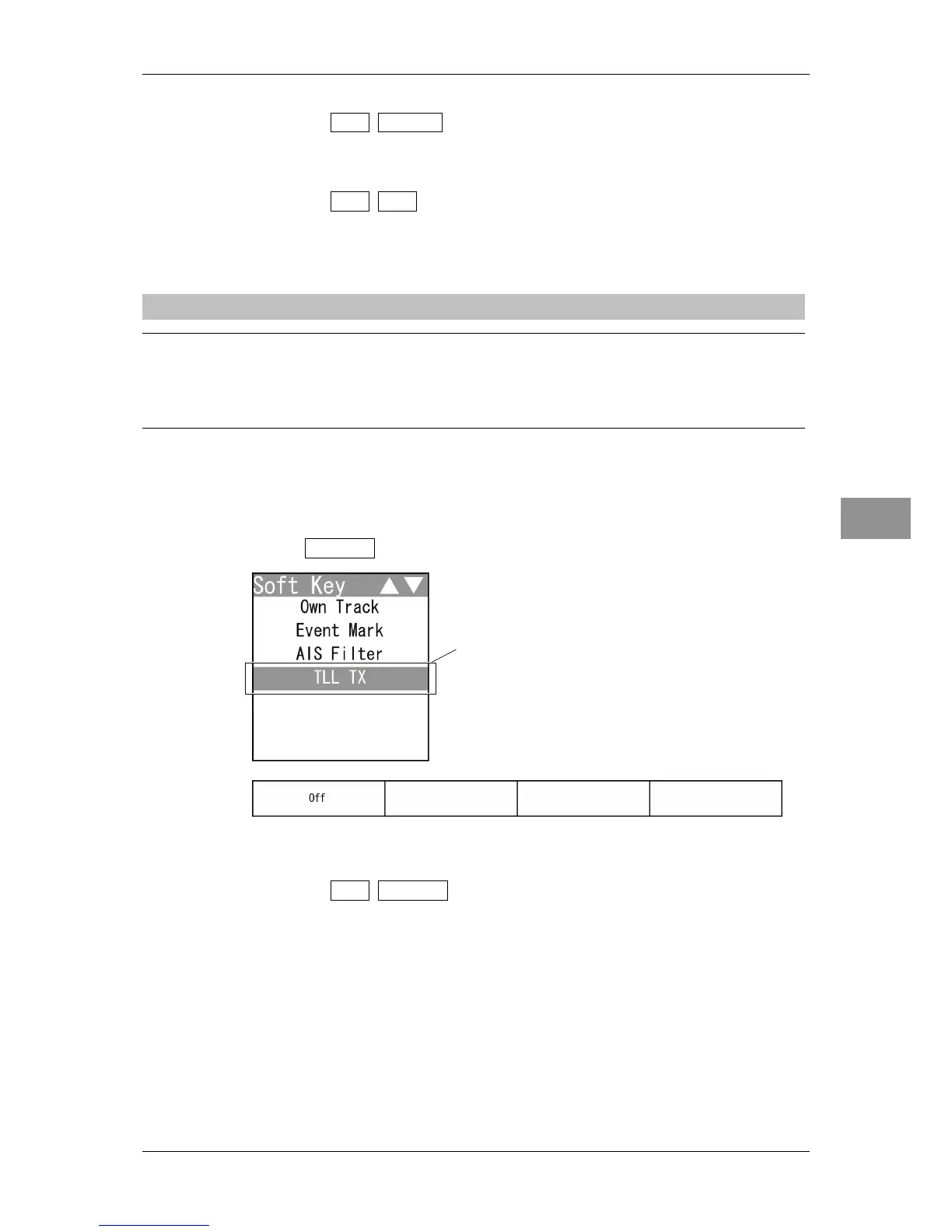

1 Select TLL TX on the soft key menu.
The "TLL TX" soft key display appears.
2 Operate with the soft keys.
Soft key 1: Off TLL TX
"Off": TLL sentence is not transmitted with the [ENT] key.
"TLL TX": TLL sentence of the cursor position is transmitted with the [ENT]
key.
Soft key 2: Not available
Soft key 3: Not available
Soft key 4: Not available
"TLL TX" is colo
