Chapter 2 OPERATIONS
2.7 SOFT KEY OPERATION
2-59
2
INSTRUCTION MANUAL

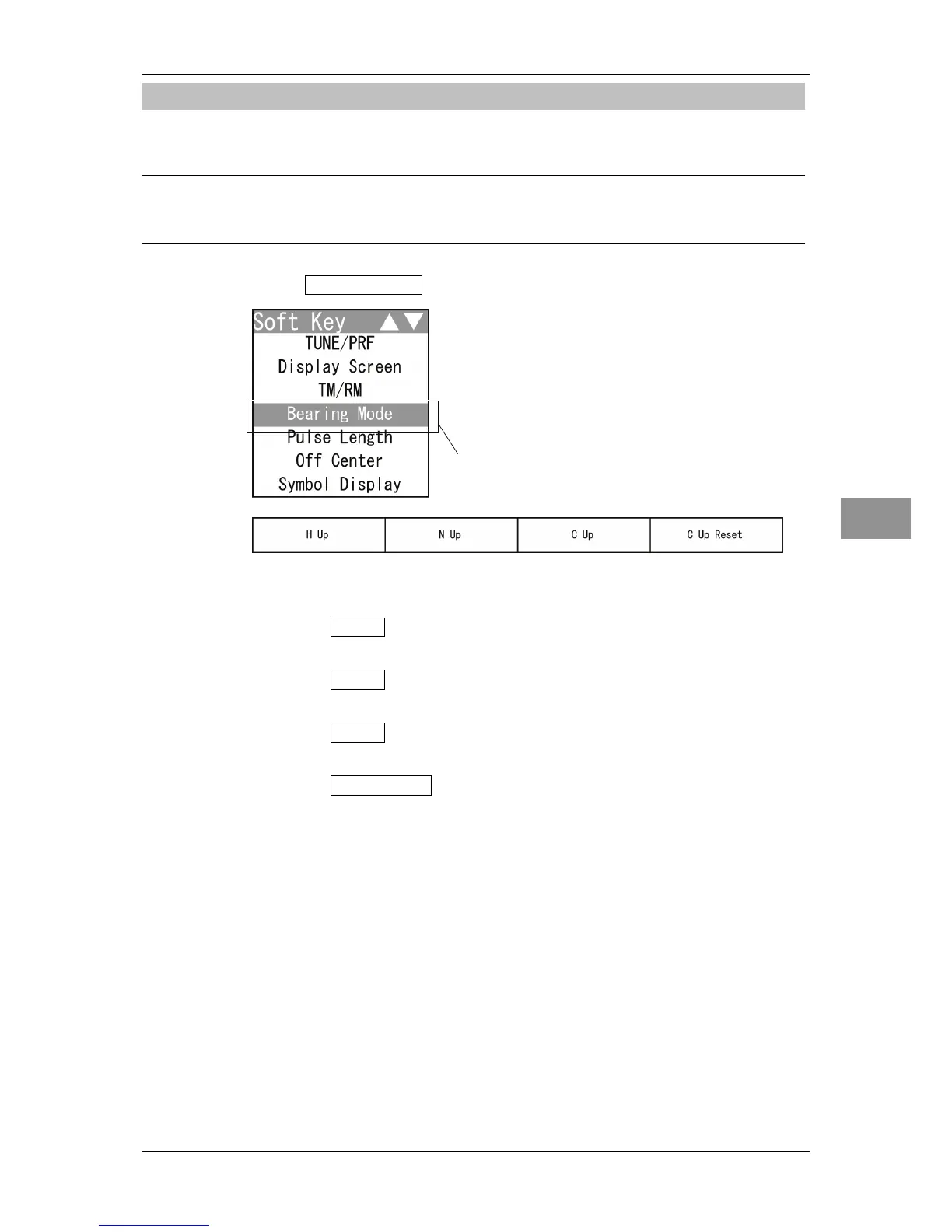

2.7.12 SWITCHING BEARING DISPLAY MODE
Selects the azimuth of the radar video.
Reference:
The bearing signal input is required to display N Up/C Up.
1 Select Bearing Mode on the soft key menu.
The "Bearing Mode" soft key display appears.
2 Operate with the soft keys.
Soft key 1: H Up
Relative bearing mode [Head Up] is selected.
Soft key 2: N Up
True bearing mode [North Up] is selected.
Soft key 3: C Up
Course-up bearing mode [Course Up] is selected.
Soft key 4: C Up Reset
In Course-up mode, reset the course-up display.
"Bearing Mode" is colo
