Chapter 2 OPERATIONS
2.15 PLOTTER UNIT
2-102
2.15 PLOTTER UNIT
Sets the plotter unit.

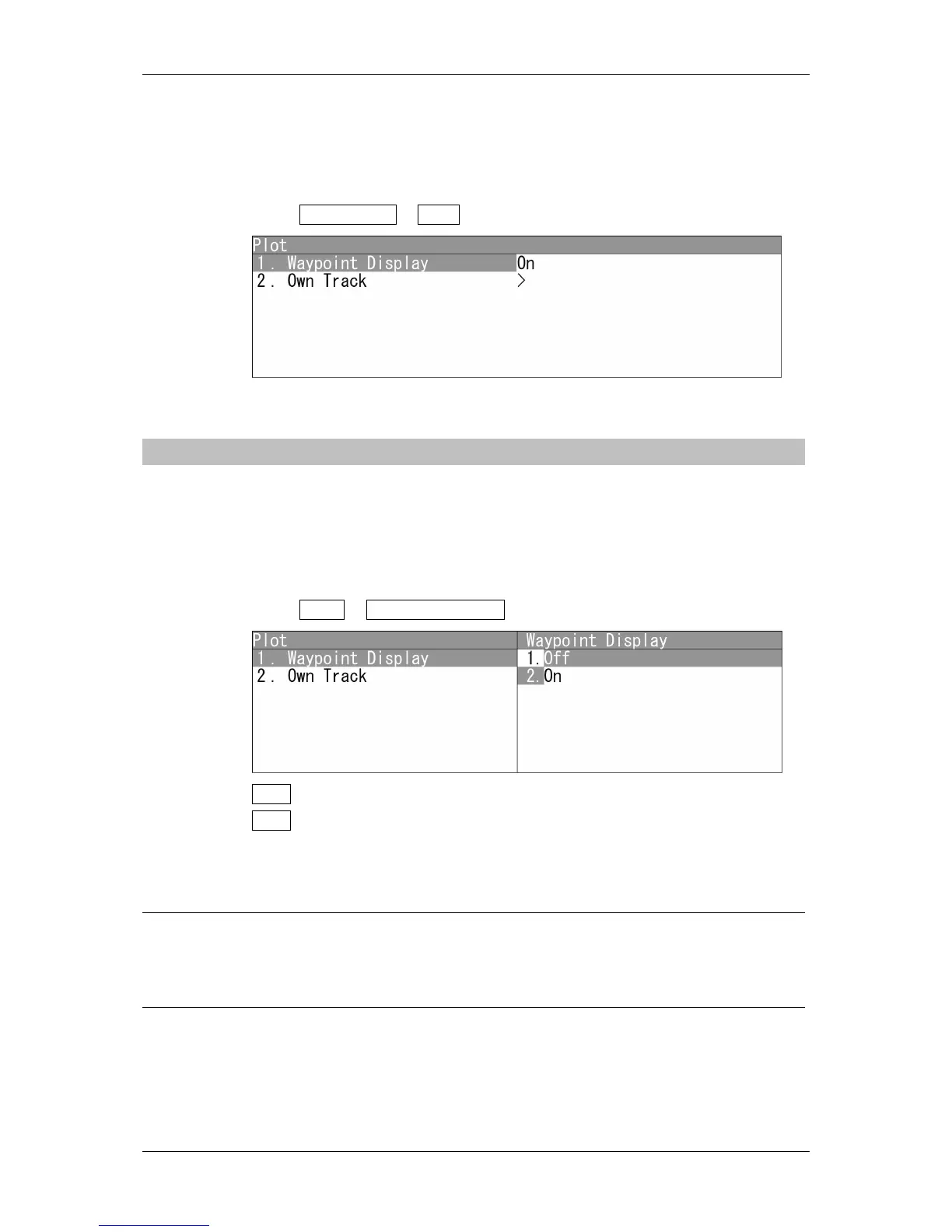

"Plot" operations
1 Open Main Menu - Plot .
"Plot" menu appears.
2.15.1 DISPLAYING WAYPOINT MARKS
When waypoint information is received from the navigation equipment, the waypoint
mark appears on the radar display.
"○" is indicated as the waypoint mark on the radar display.
Setting for Waypoint Display
1 Open Plot - Waypoint Display .
Off : The waypoint marks are not displayed.
On : The waypoint marks are displayed.
Waypoint marks are displayed only when NMEA/RMB/BWC sentences are used to
receive Waypoint information.
Reference:
To display Numerical INFO of waypoint, see "4.13.7 LOCATION CHANGE" in
"INSTALLATION MANUAL".
