Chapter 2 OPERATIONS
2.7 SOFT KEY OPERATION
2-31
2
INSTRUCTION MANUAL
Reference:
When "RADAR Trails" is not selected on the soft key menu, press the soft key 4 to activate
the RADAR Trails function.
The time for "Trails" changes as shown below.
Off/15sec/30sec/1min/2min/3min/4min/5min/6min/10min/15min/All
2.7.5 AIS OPERATIONS
The AIS function shows the target's information on the radar display, using other ship's
information sent out from the AIS unit.
Reference:
The inputs of heading, latitude/longitude and AIS signal are required to display AIS.
For detail settings of AIS functions, see "2.13 SETTING TT/AIS".
This function is initially set to off. To use this function, set this to on by referring to "■
Soft Key Menu Setting" in "4.10 Control" of the Installation Manual.

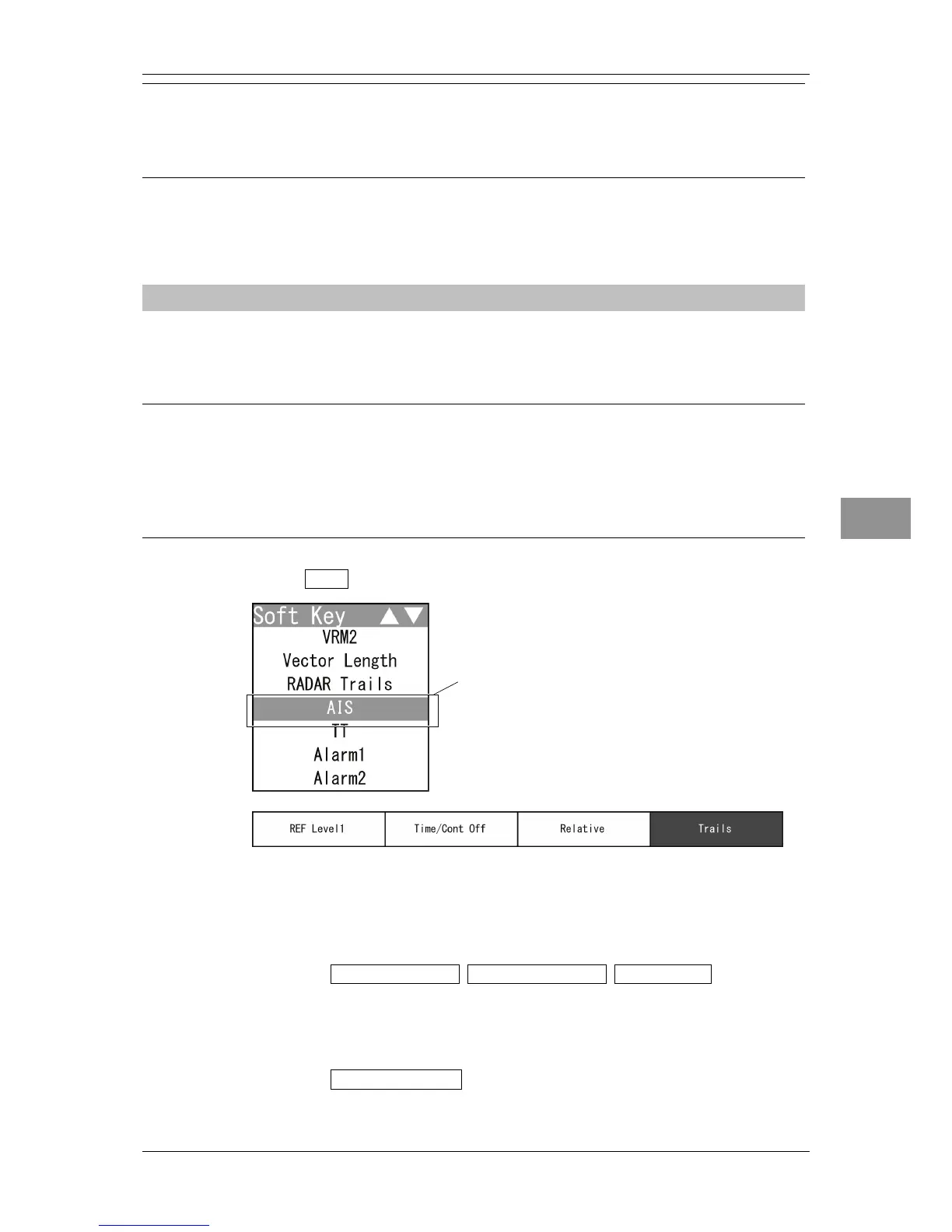

1 Select AIS on the soft key menu.
The soft key menu disappears and "Target Select" of the soft key display is
color-inverted.
"AIS" is activated.
2 Operate with the soft keys.
Soft key 1: Numerical Data Retrieved Vessel DEST Ship
"Numerical Data": The mode is set to AIS numerical data display selection mode.
"Retrieved Vessel": The mode is set to AIS retrieved vessel selection mode.
"DEST Ship": The mode is set to AIS destination ship selection mode
Soft key 2: Setting/Release
AIS data display (numerical display, retrieved vessel and destination ship) can be
set/released.
Select "AIS" and press the control.
