Chapter 2 OPERATIONS
2.7 SOFT KEY OPERATION
2-66
2.7.17 MARKING
Marks can be indicated at arbitrary positions on the screen.
A mark created on the screen holds the latitude and longitude.
Reference:
Bearing signal input and latitude/longitude data input are required to use marks.
Up to 200 lines/marks can be displayed for lines, marks and event marks in total.
When the marks are hidden in "2.7.15 SETTING SYMBOL DISPLAY", marks cannot
be created.
This function is initially set to off. To use this function, set this to on by referring to "■
Soft Key Menu Setting" in "4.10 Control" of the Installation Manual.

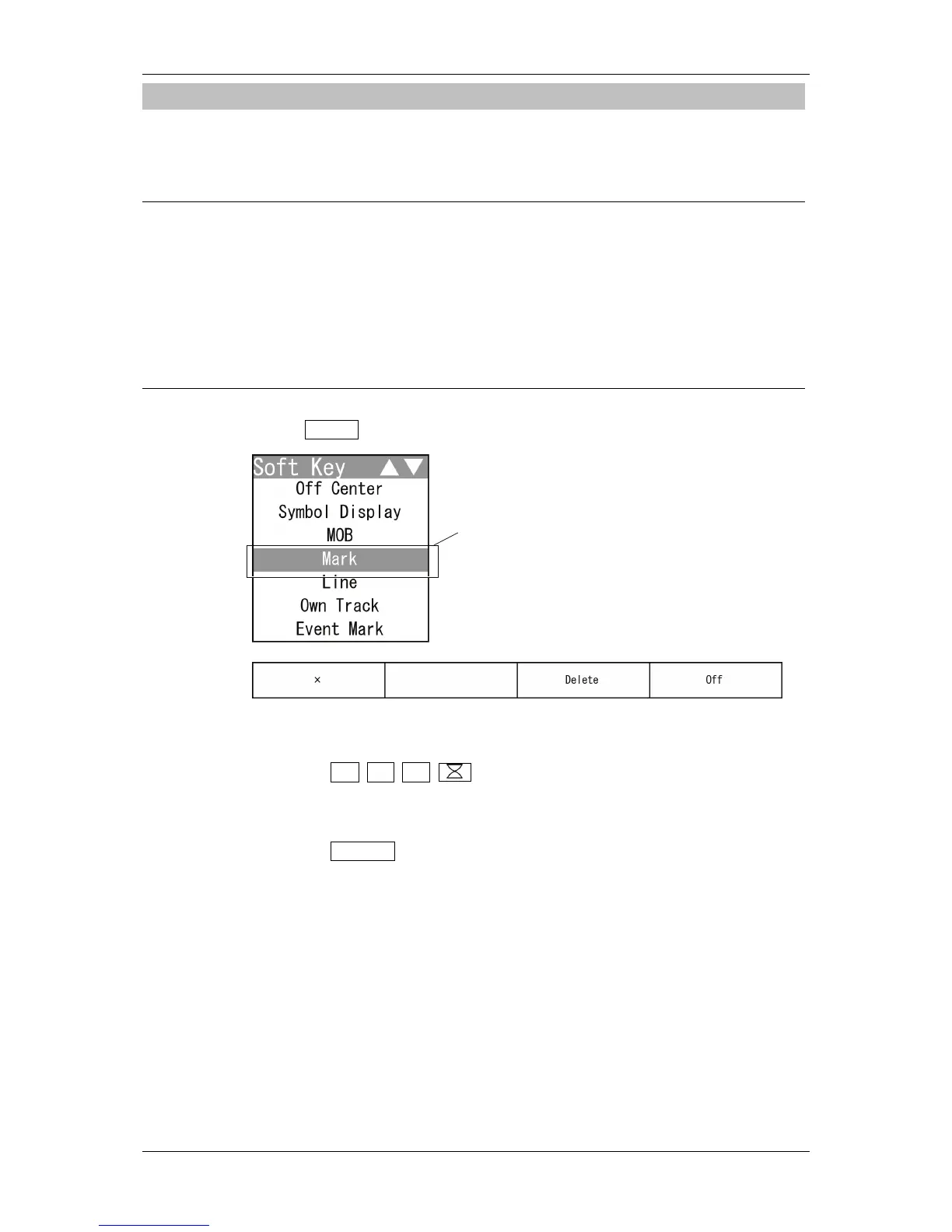

1 Select Mark on the soft key menu.
The "Mark" soft key display appears.
2 Operate with the soft keys.
Soft key 1: X + Y
The mark type of a target is changed.
Soft key 2: Not available
Soft key 3: Delete
Press to delete the marks of selected type.
Hold down to delete all marks.
The confirmation dialog window is displayed.
(Marks and event marks are not distinguished when deleting.)
"Mar
