Chapter 2
OPERATIONS
2.10

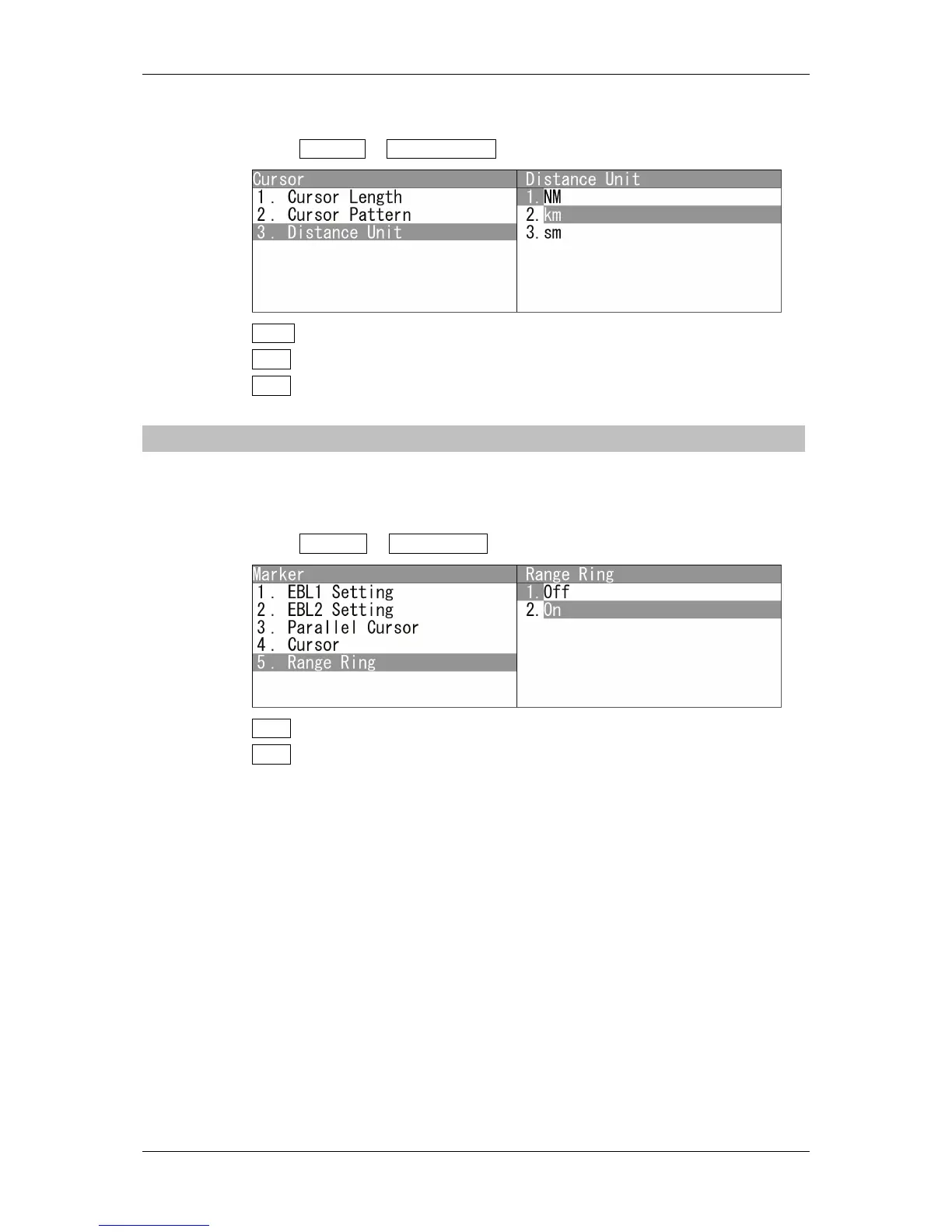

MARKER SETTING
2-84
Distance
Unit
Sets the distance unit for cursor.
1
Open
Cursor
- Dista
nce
Unit
.
NM
:
The distance unit is set to NM.
km
:
The distance unit is set to km.
sm
:
The distance unit is set to sm.
2.10.3
SETTING RANGE RINGS
Displays/hides the range rings.
Setting the range rings
1
Open
Marker
-
Range
Ring
.
Off
:
The range rings are not displayed.
On
:
The range rings are displayed.
117
119
