Chapter 2
OPERATIONS
2.7
SOFT KEY OPERATION
2-56

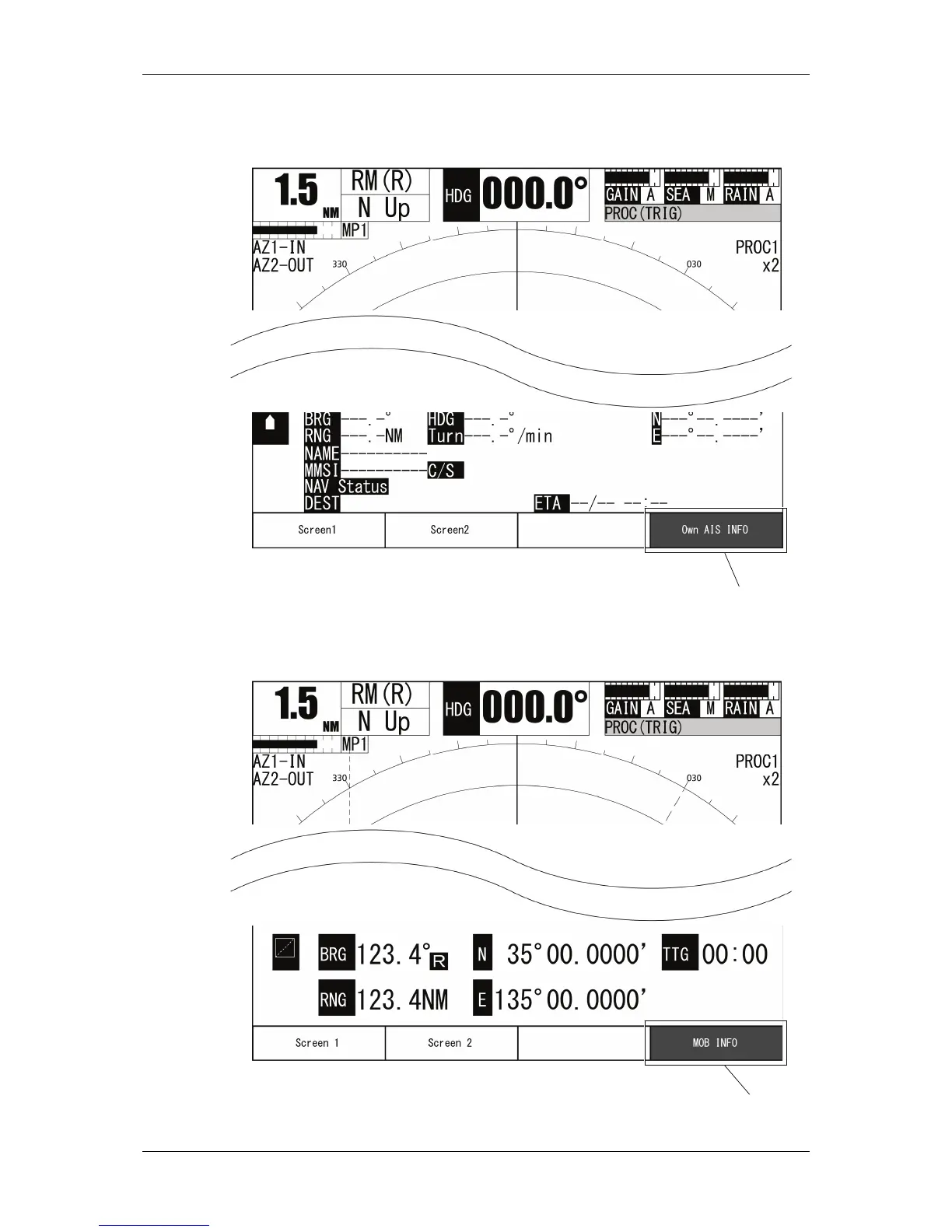

Own AIS INFO
When "AIS Detail" is displayed above the soft key 4, press the soft key 4 to display
"Own AIS INFO" on the radar screen.
MOB
INFO
When "Own AIS INFO" is displayed above the
soft key 4, press the soft key 4 to display
"MOB INFO" on the radar screen.
Own AIS INFO
