Step 3: Receiver cable and the sensor cable.
Remove the connection cable of the motor unit.
Remove the connection cable of the receiver unit.
Remove the connection cable of the sensor.
When removing the transceiver unit, be sure not to be stuck in parts and be careful not to
interfere with the work.


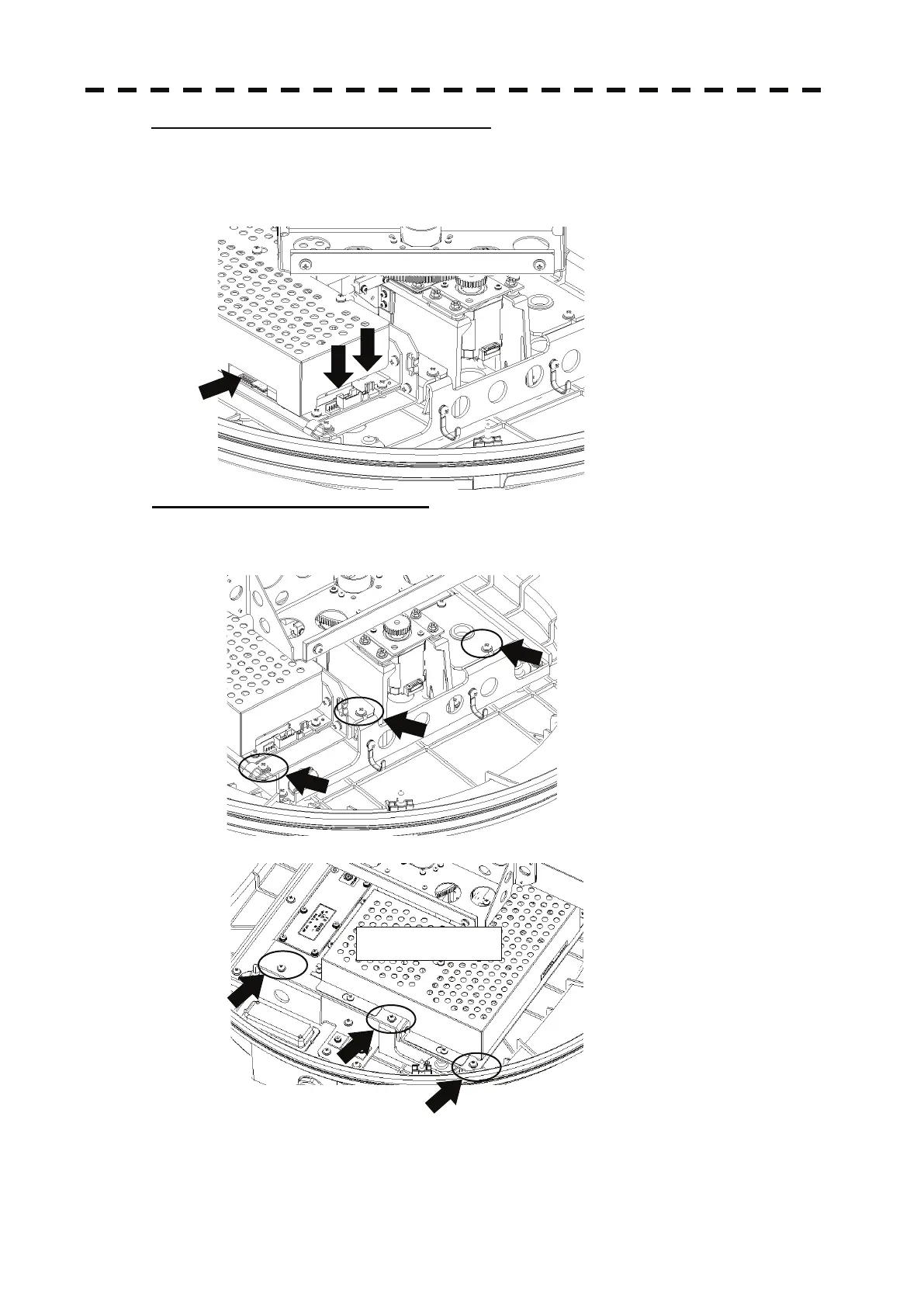

Step 4: Remove the transceiver unit
.
The transceiver unit is fixed with 5 screws with washer (M4X10Bs_SW_W) and a screw
(M4X12_SW_W, fixed with clamp).
a) Loosen the 3 screw fixing the unit on the bow side.

b) Remove the remaining 3 screws on the stern side.

c) Remove the transceiver unit.
When removing the transceiver unit, once slide it to stern direction and pull it off
Transceiver unit
