8.4 REPLACEMENT OF MAJOR PARTS
ņ30
8
yyyy
yyyy
obliquely backward.
Perform the replacement of circuits within the transceiver unit in a safe place.


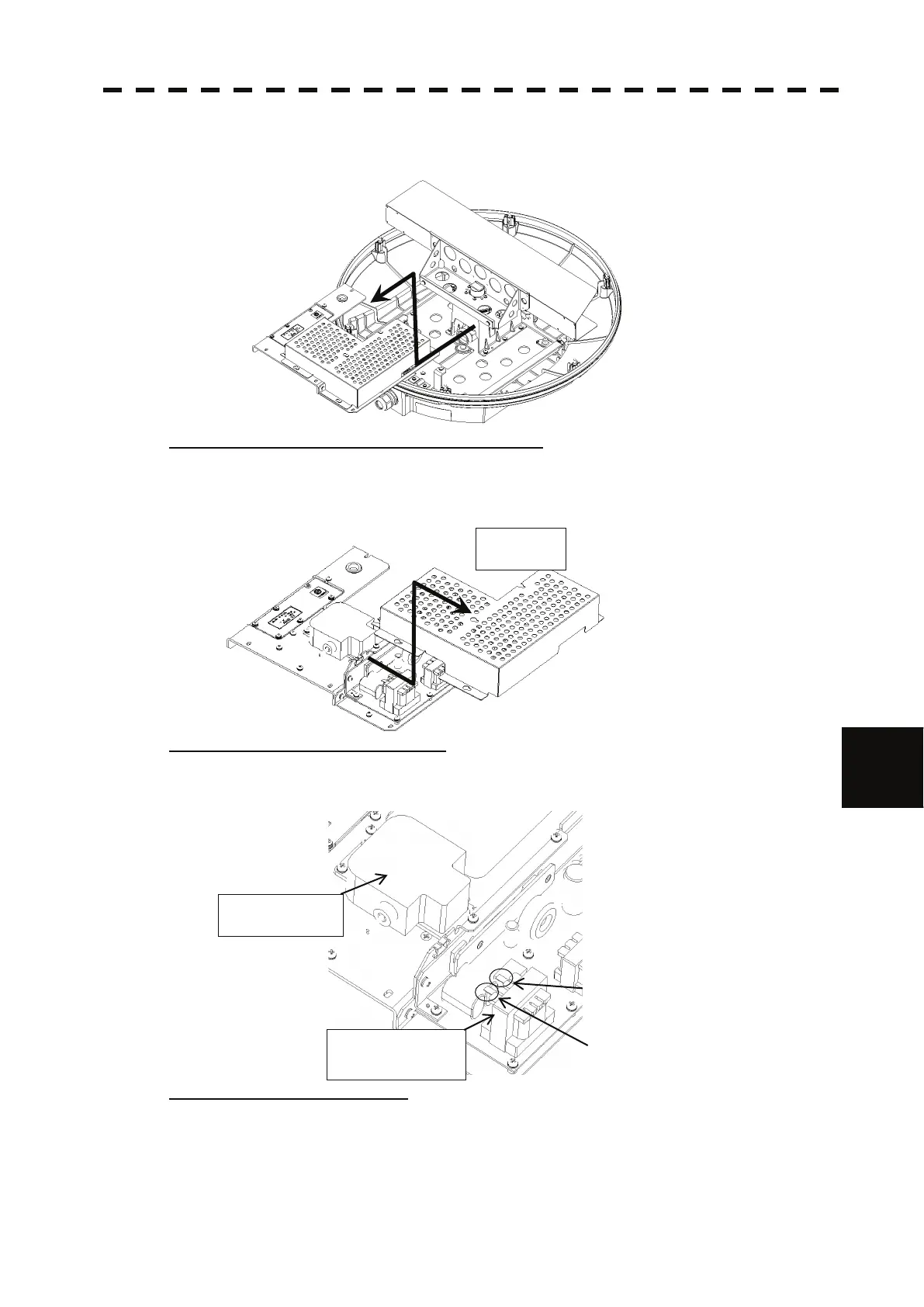

Step 5: Remove the cover of the transceiver unit
.
Perform the replacement of circuits and parts within the transceiver unit.
Remove the cover of the transceiver unit.
The cover is fixed with 7 screws with washer (M4X10Bs_SW_LW).
Loosen all screws and slide the cover to remove it.

Step 6: Remove the magnetron cable.
The magnetron cable is connected to the pulse transformer with two cables (green and
yellow).
Remove the cables soldered to the pulse transformer pins. Reuse the protection tube.

Step 7: Replace the magnetron.
The magnetron is fixed with 4 screws with washer (M4X10Bs_SW_LW). Remove the screws
and replace the magnetron.
Magnetron
Pulse
Transformer
Yellow
Green
Cover
