ņ31

Use a shielded screw driver.
Touching the magnetron with metal (a tool) causes
performance deterioration.

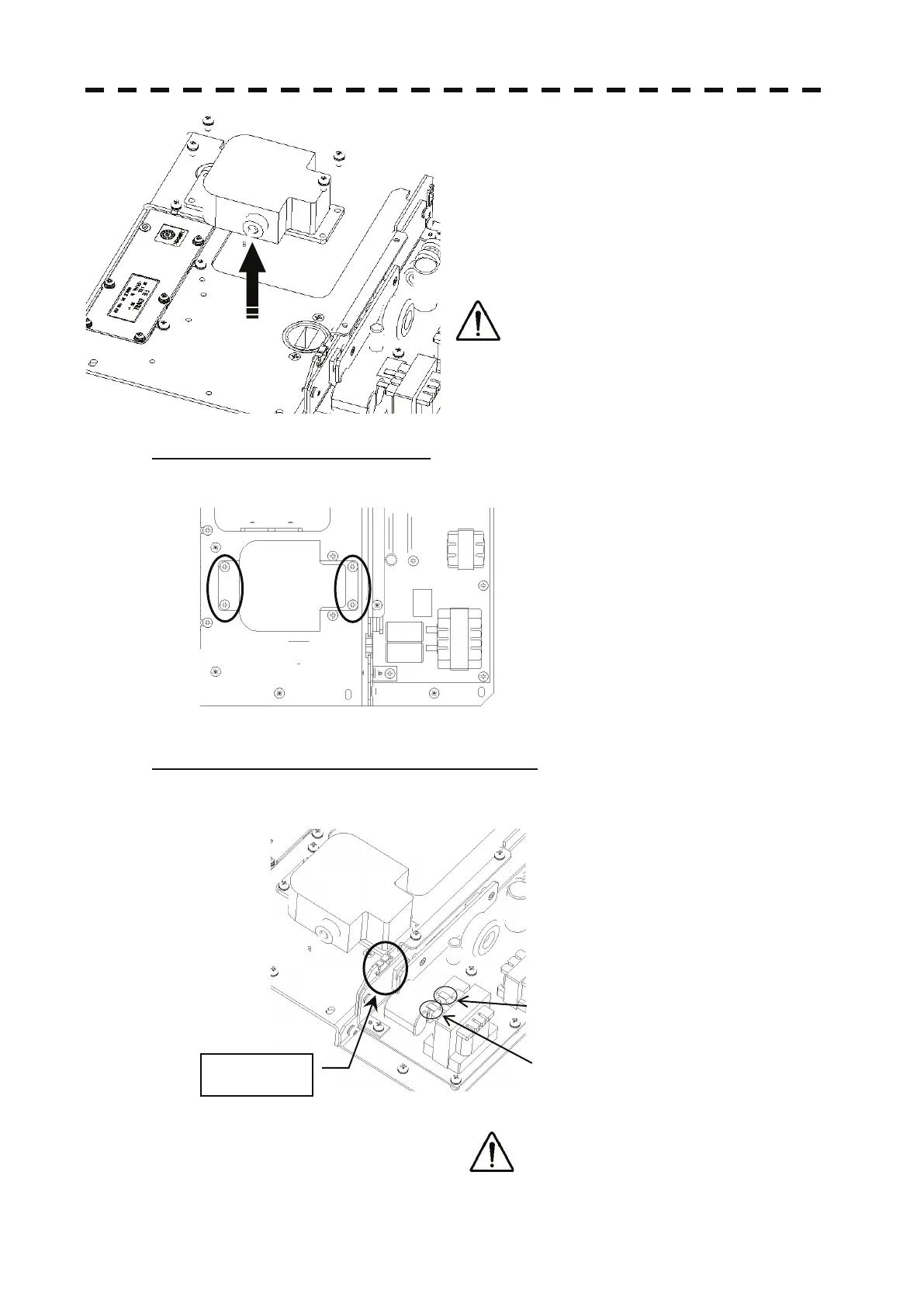

Step 8: Connect the magnetron cable.
Connect the cables after fixing the magnetron.
Solder the cables to the pulse transformer pins.

Pass the magnetron cable through the protection tube (reused).
Step 9: Connect the magnetron cables as follows:
the green cable to No. 16 of the pulse transformer and
the yellow cable to No. 15 of the pulse transformer.

After soldering, place the cables into the bush and attach the cover.
Be careful not to connect cables faultily.
Bush
ellow
Green
To Next Page
