4.1 Use of Navigation Tools
y
yyy

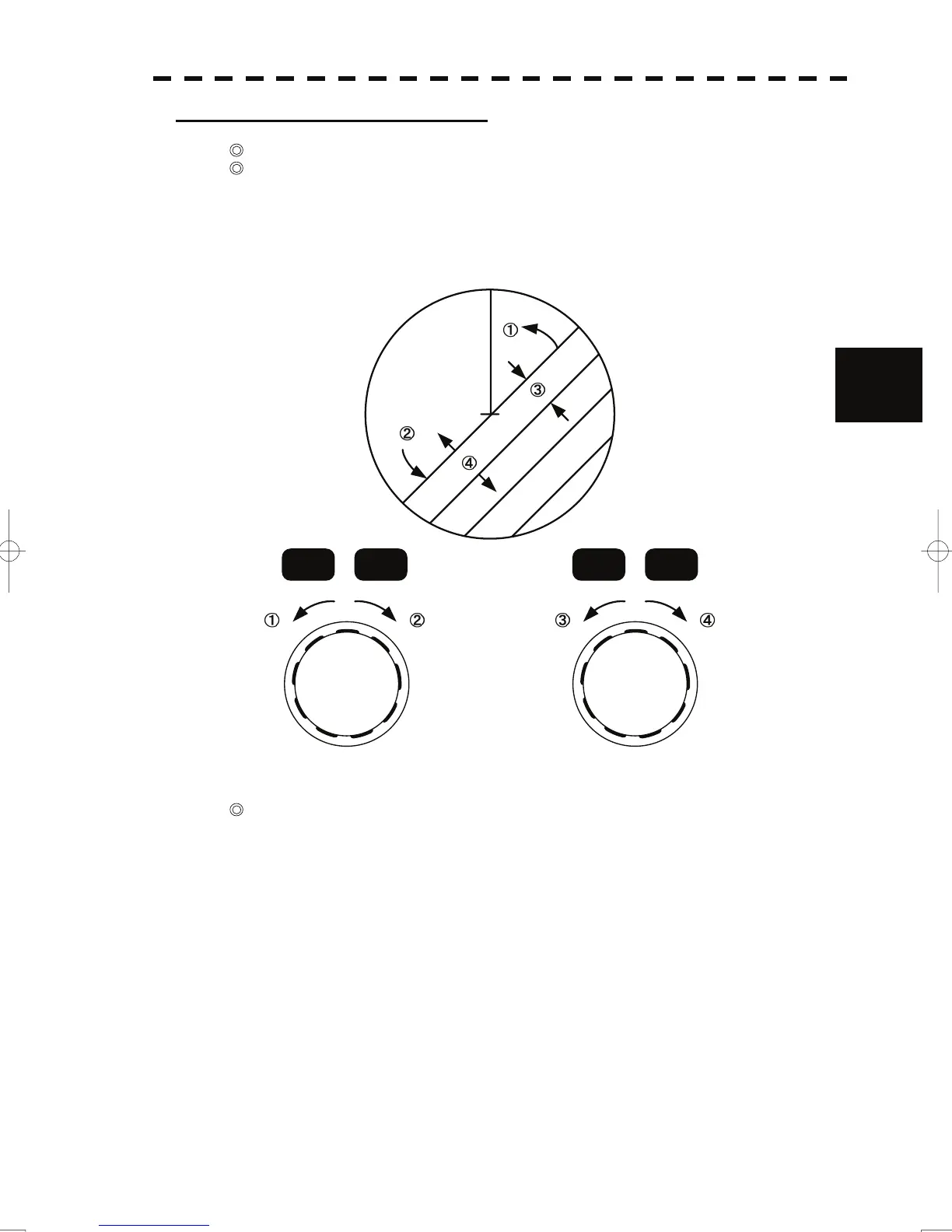

[II] Operation of Parallel Index Lines
Parallel index lines rotate in the same direction as you turn the [EBL] dial. ( ① , ② )
The intervals of parallel index lines narrow when you turn the [VRM] dial counterclockwise
( ③ ), and widen when you turn the [VRM] dial clockwise (
④ ).
HL
EBL1 EBL2 VRM1 VRM2
4
When the [VRM] dial is pressed, the PI Menu closes and the parallel index lines are fixed.
During the operation of parallel index lines, pressing the [EBL1] or [EBL2] key disables operation
for rotation directions. Pressing the [VRM1] or [VRM2] key disables operation for parallel index
line intervals.
4-8
