Page #102 background imageLoading...
Page #102 background image

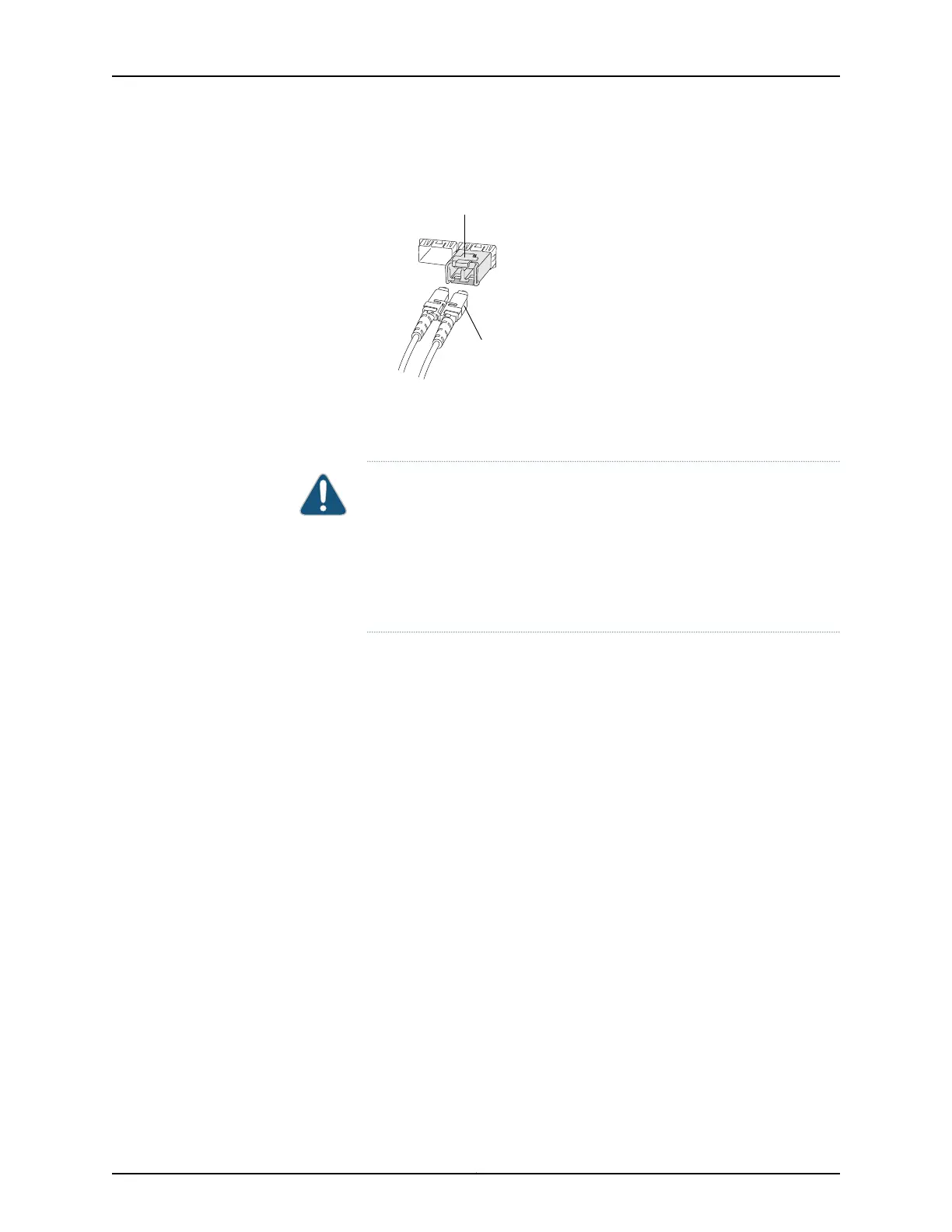

Figure 35: Connecting a Fiber-Optic Cable to an Optical Transceiver
Installed in an EX Series Switch
g027016
Fiber-optic cable
Transceiver
4. Secure the cables so that they are not supporting their own weight. Place excess cable
out of the way in a neatly coiled loop. Placing fasteners on a loop helps cables maintain
their shape.
CAUTION: Do not bend fiber-optic cables beyond their minimum bend
radius.An arc smaller than a few inches in diametercandamage the cables
and cause problems that are difficult to diagnose.
Do not let fiber-optic cables hang free from the connector. Do not allow
fastened loops of cables to dangle, which stresses the cables at the
fastening point.
Related
Documentation
Disconnecting a Fiber-Optic Cable from an EX Series Switch on page 97
Installing a Transceiver in an EX Series Switch on page 65
Maintaining Fiber-Optic Cables in EX Series Switches on page 101
Optical Interface Support in EX2200 Switches on page 22
Optical Interface Support in EX3200 Switches
Optical Interface Support in EX4200 Switches
Optical Interface Support in EX4500 Switches
Optical Interface Support in EX8200 Switches
Copyright © 2010, Juniper Networks, Inc.82
Complete Hardware Guide for EX2200 Ethernet Switches

Table of Contents

Other manuals for Juniper EX2200

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Juniper EX2200 and is the answer not in the manual?

Juniper EX2200 Specifications

General IconGeneral
Throughput77 Mpps
MAC address table8000 entries
Jumbo frames supportYes
Number of VLANs1024
Networking standards-
Switch typeManaged
SFP module slots quantity4
Installed SFP modules quantity0
Basic switching RJ-45 Ethernet ports quantity48
StackableNo
Product colorBlack
Power consumption (typical)100 W
Operating altitude0 - 3048 m
Non-operating altitude0 - 4877 m
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 45 °C
Storage relative humidity (H-H)0 - 95 %
Operating relative humidity (H-H)10 - 85 %
Weight and Dimensions IconWeight and Dimensions
Depth254 mm
Width441 mm
Height43 mm
Weight3600 g
