Juniper EX2200 Complete Hardware Guide

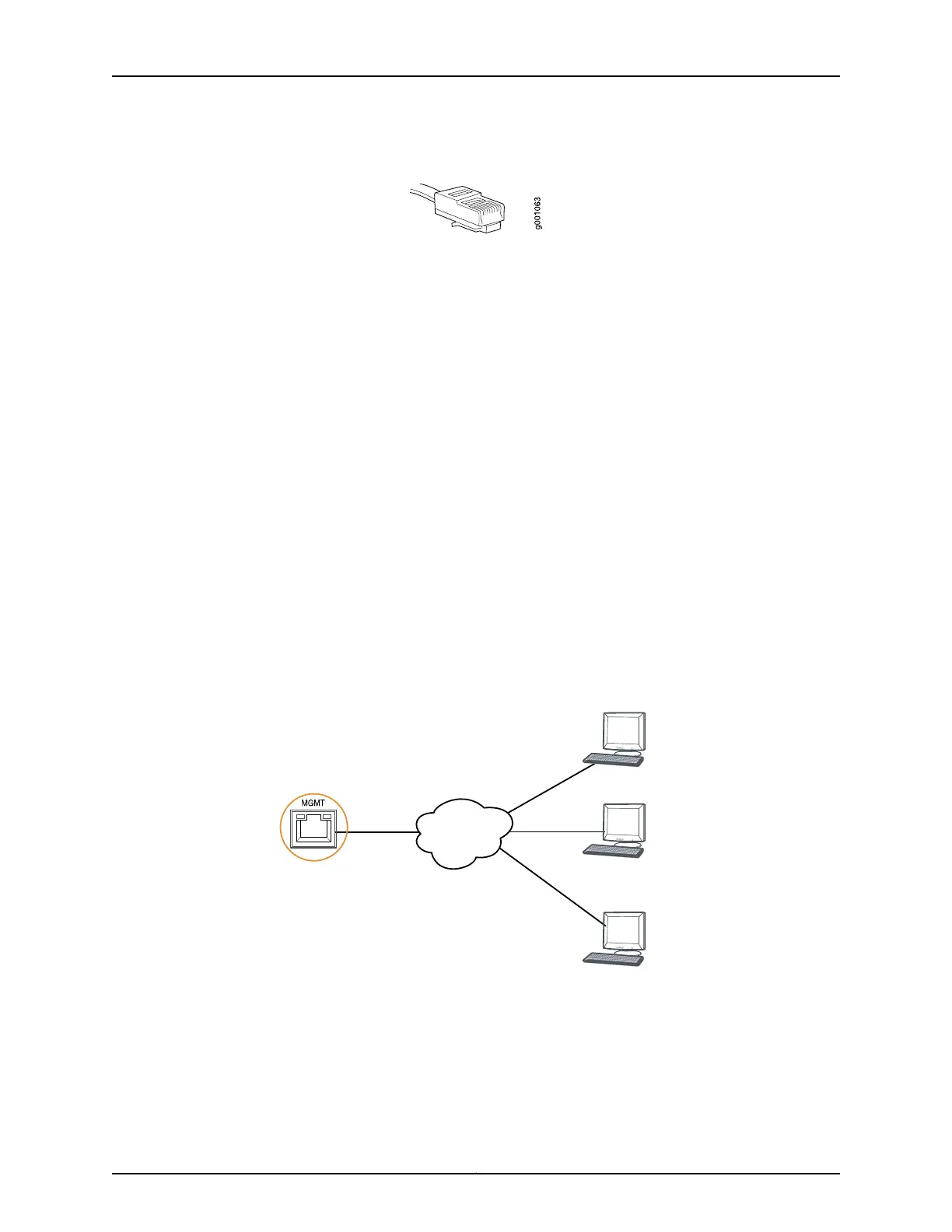

Figure 29: Ethernet Cable Connector
To connect a device to a network for out-of-band management (see Figure 30 on
page 75):
1. Connect one end of the Ethernet cable to the management port (labeled MGMT) on
the device.
For the location of the MGMT port on different devices:
•
See “Rear Panel of an EX2200 Switch” on page 6.
•
See Rear Panel of an EX3200 Switch.
•
See Rear Panel of an EX4200 Switch.
•
See Front Panel of an EX4500 Switch.
•
See Switch Fabric and Routing Engine (SRE) Module in an EX8208 Switch.
•
See Routing Engine (RE) Module in an EX8216 Switch.
•
See Front Panel of an XRE200 External Routing Engine.
2. Connect the other end of the Ethernet cable to the management device.
Figure 30: Connecting an EX Series Switch to a Network for Out-of-Band
Management
g020548
Management PC
Management PC
Management PC
To Management port
(on the switch)
Management
network
Related
Documentation
Connecting an EX Series Switch to a Management Console on page 76•
• Management Port Connector Pinout Information for an EX2200 Switch on page 22
• Management Port Connector Pinout Information for an EX3200 Switch
• Management Port Connector Pinout Information for an EX4200 Switch
75Copyright © 2010, Juniper Networks, Inc.
Chapter 10: Connecting the Switch

Juniper EX2200 Specifications

General

Throughput	77 Mpps
MAC address table	8000 entries
Jumbo frames support	Yes
Number of VLANs	1024
Networking standards	-
Switch type	Managed
SFP module slots quantity	4
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports quantity	48
Stackable	No
Product color	Black
Power consumption (typical)	100 W
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 4877 m
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Depth	254 mm
Width	441 mm
Height	43 mm
Weight	3600 g
