Remove the switch from the shipping carton (see “Unpacking an EX2200 Switch” on
page 52).
Ensure that you have the following parts and tools available:
2 wall-mount brackets (provided in the wall-mount kit)
1 wall-mount baffle (provided in the wall-mount kit)
12 wall-mount bracket screws (provided in the wall-mount kit)
6 mounting screws (8-32 x 1.25 in. or M4 x 30 mm) (not provided)
Hollow wall anchors rated to support up to 75 lb (34 kg) if you are not screwing the
screws directly into wall studs (not provided)
Phillips (+) screwdriver, number 2 (not provided)
To mount one or two switches on a wall:
1. Attach the wall-mount brackets to the sides of the chassis using four wall-mount
bracket screws on each side, as shown in Figure 21 on page 62.

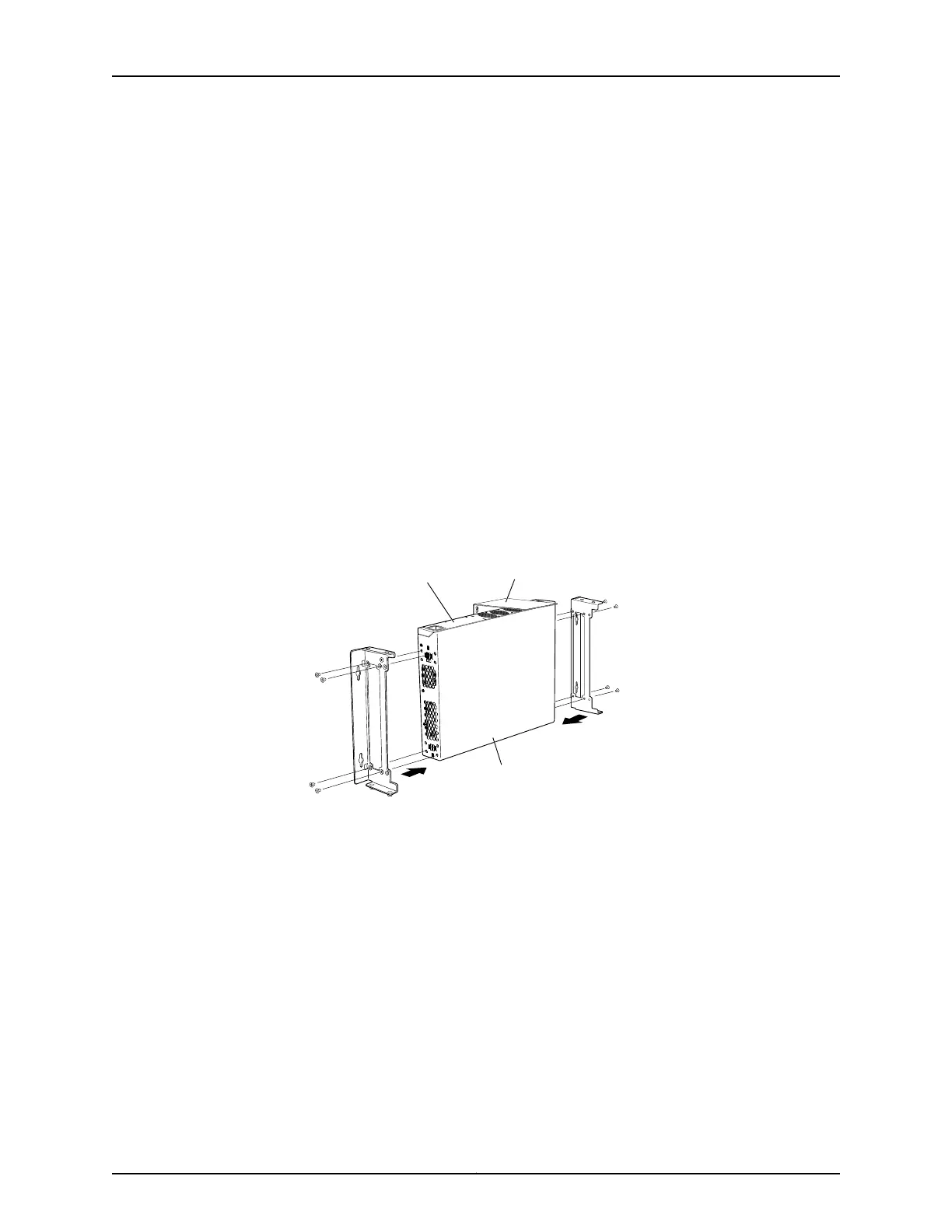

Figure 21: Attaching Wall-Mount Brackets to a Switch Chassis
g027022
Front panel
Rear panel
Baffle for PoE Models
(EX2200-24P and EX2200-48P)
2. If you are mounting two switches together, align the second switch on top of the first
and attach it to the mounting brackets using two additional wall-mount bracket
screws on each side (Figure 23 on page 64 shows two aligned switches).
3. Install six mounting screws in the wall for the wall-mount brackets and baffle as
shown in Figure 22 on page 63:
Use hollow wall anchors rated to support up to 75 lb (34 kg) if you are not inserting
the mounting screws directly into wall studs.
Turn the screws only part way in, leaving about 1/4 in. (6 mm) distance between
the head of the screw and the wall.
a. Install screw A.
b. Install screw B 18.68 in. (47.4 cm) from screw A on a level line.
Copyright © 2010, Juniper Networks, Inc.62
Complete Hardware Guide for EX2200 Ethernet Switches
