To mount the switch on four posts in a rack:
1. Attach the front brackets (either the flush or the 2-in.-recess brackets) to the side-rail
brackets using six 4-40 flat-head Phillips mounting screws. See Figure 17 on page 59.

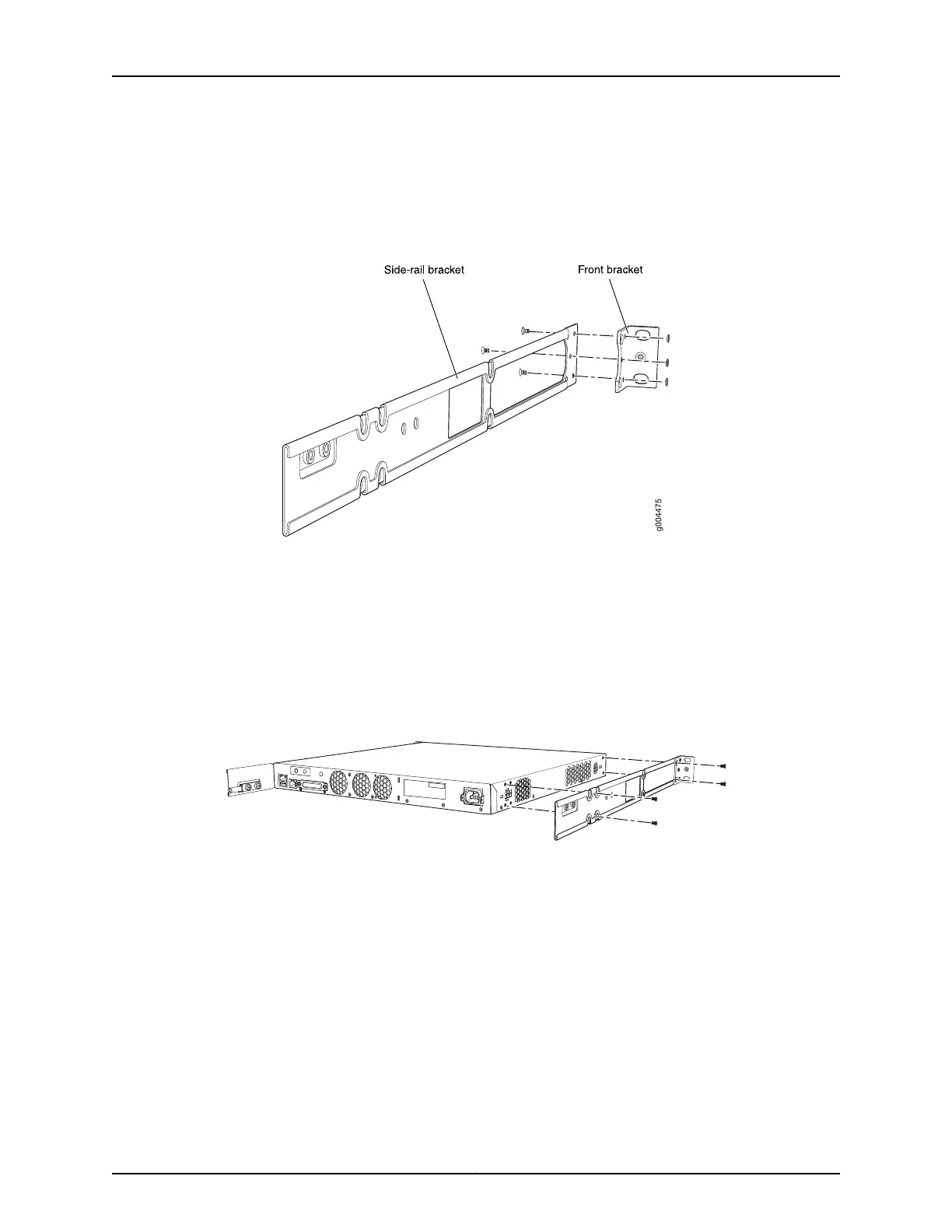

Figure 17: Attaching the Front Bracket to the Side-Rail Bracket
2. Place the switch on a flat, stable surface.
3. Align the side-rail brackets along the side panels of the switch chassis. Align the two
holes in the rear of the side-rail brackets with the two holes on the rear of the side
panel.
4. Insert 4x6-mm Phillips flat-head mounting screws into the two aligned holes and
tighten the screws. Ensure that the two holes in the rear of the side-rail brackets are
aligned with the remaining two holes in the side panel. See Figure 18 on page 59.
Figure 18: Attaching the Side-Rail Bracket to the Switch Chassis
g027017
5. Insert the 4x6-mm Phillips flat-head mounting screws into the remaining two holes
in the side-rail brackets and tighten the screws.
6. Have one person grasp both sides of the switch, lift the switch, and position it in the
rack, aligning the side-rail bracket holes with the threaded holes in the front post of
the rack. Align the bottom hole in both the mounting brackets with a hole in each rack
rail, making sure the chassis is level. See Figure 19 on page 60.
59Copyright © 2010, Juniper Networks, Inc.
Chapter 8: Installing the Switch

Juniper EX2200 Specifications

General

Throughput	77 Mpps
MAC address table	8000 entries
Jumbo frames support	Yes
Number of VLANs	1024
Networking standards	-
Switch type	Managed
SFP module slots quantity	4
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports quantity	48
Stackable	No
Product color	Black
Power consumption (typical)	100 W
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 4877 m
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Depth	254 mm
Width	441 mm
Height	43 mm
Weight	3600 g
