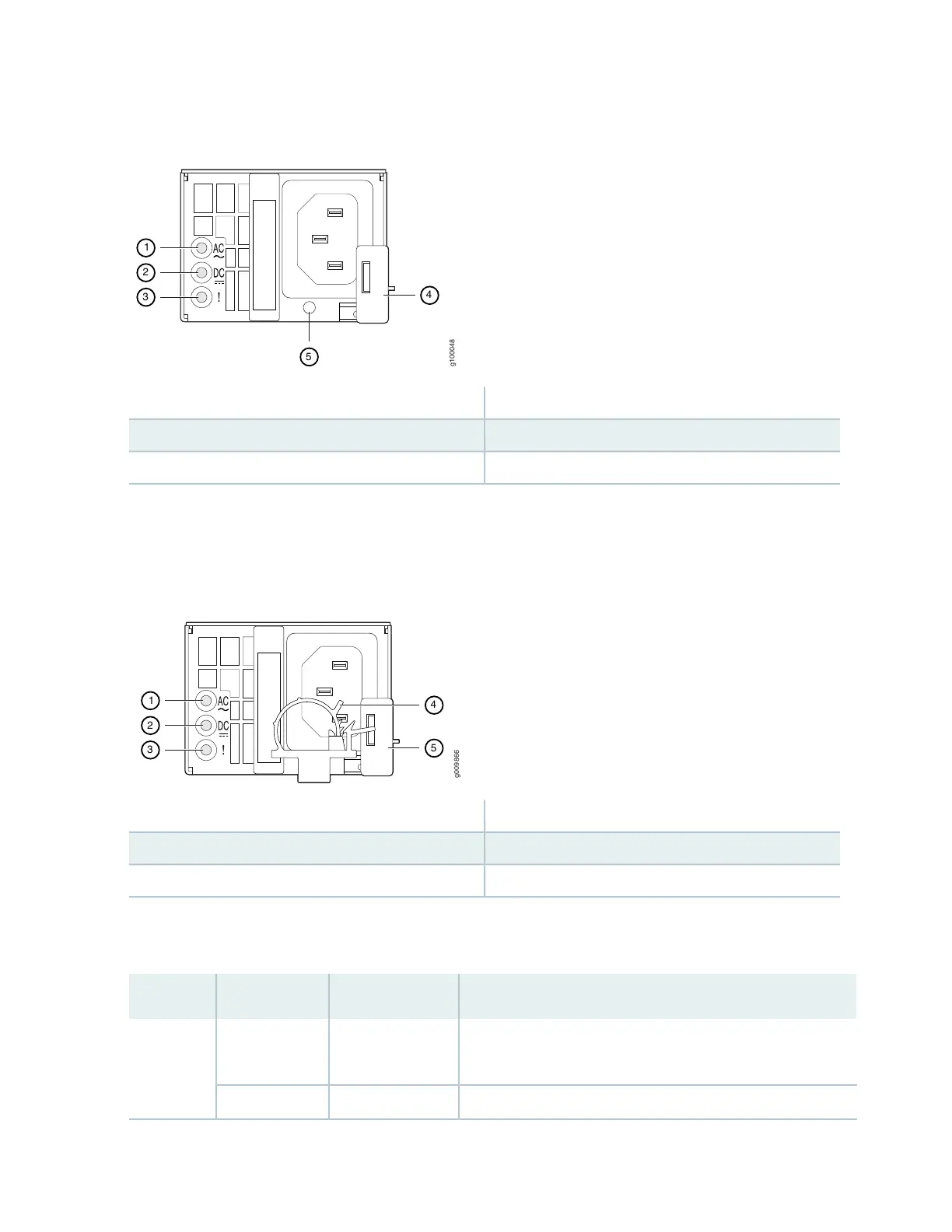

Figure 11: AC Power Supply Module LEDs and Components
g100048
1
2
3
4
5
4—1— Ejector leverInput status LED
5—2— AC power cord retainer portOutput status LED
3—Fault LED
Figure 12 on page 36 shows the AC power supply module components with the AC power cord retainer
along with the status LEDs.
Figure 12: AC Power Supply Module LEDs and Components––with the AC Power Cord Retainer
g009866
1
2
3
5
4
4—1— AC power cord retainer installedInput status LED
5—2— Ejector leverOutput status LED
3—Fault LED
Table 9 on page 36 describes the LEDs on the AC power supply modules.
Table 9: AC Power Supply Module LEDs
DescriptionStateColorLabel
The power supply is disconnected from power source, or the
power supply is not receiving power.
OffUnlitAC OK
Power supply is receiving power.On steadilyGreen
