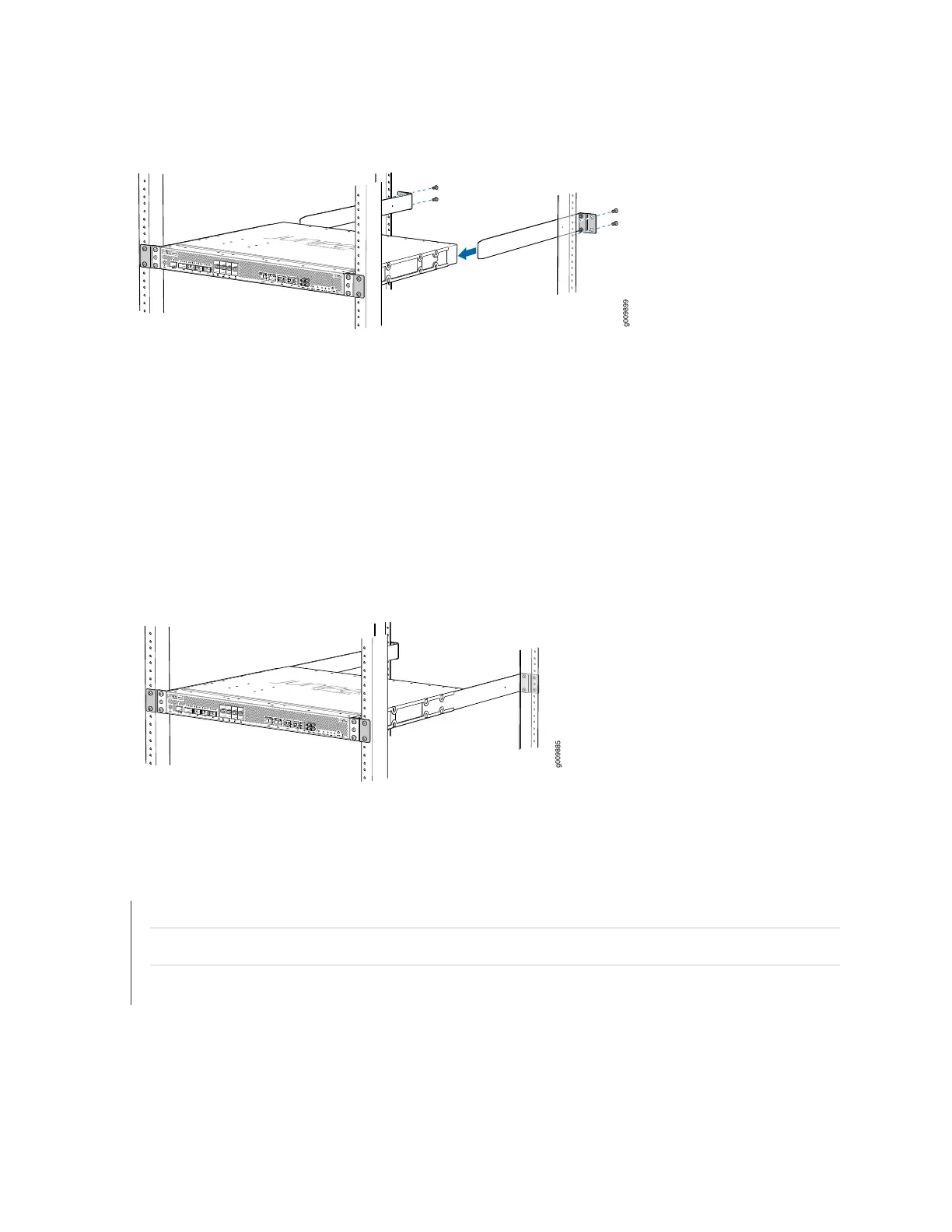

Figure 31: Installing the Rear-Mounting Brackets with ETSI Brackets
10. Install mounting screws into each of the open rear-mounting holes aligned with the rack, starting from
the bottom, and secure them tightly.
11. Visually inspect the alignment of the chassis. If the chassis is installed properly in the rack, all the
mounting screws on one side of the rack are aligned with the mounting screws on the opposite side
and the router is level. Figure 32 on page 88 shows the router fully secured and installed in a four-post
rack with ETSI brackets.
Figure 32: Router Installed in the Rack with ETSI Brackets
SEE ALSO
MX204 Site Preparation Checklist | 53
MX204 Router Grounding Specifications | 57
MX204 Router Clearance Requirements for Airflow and Hardware Maintenance | 60
