Accessing J-Web on the SRX340 Services Gateway
The J-Web interface is a Web-based graphical interface that allows you to operate a
services gateway without commands.
NOTE: To access the J-Web interface, your management device requires one
of the following supported browsers:
•
Microsoft Internet Explorer version 9.0 or 10.0
•
Mozilla Firefox versions 24 through 38
•
Google Chrome versions 27 through 43
To access J-Web:
1. Connect the management port MGMT to the Ethernet port on the management device,
using an RJ-45 cable as shown in Figure 11 on page 66.

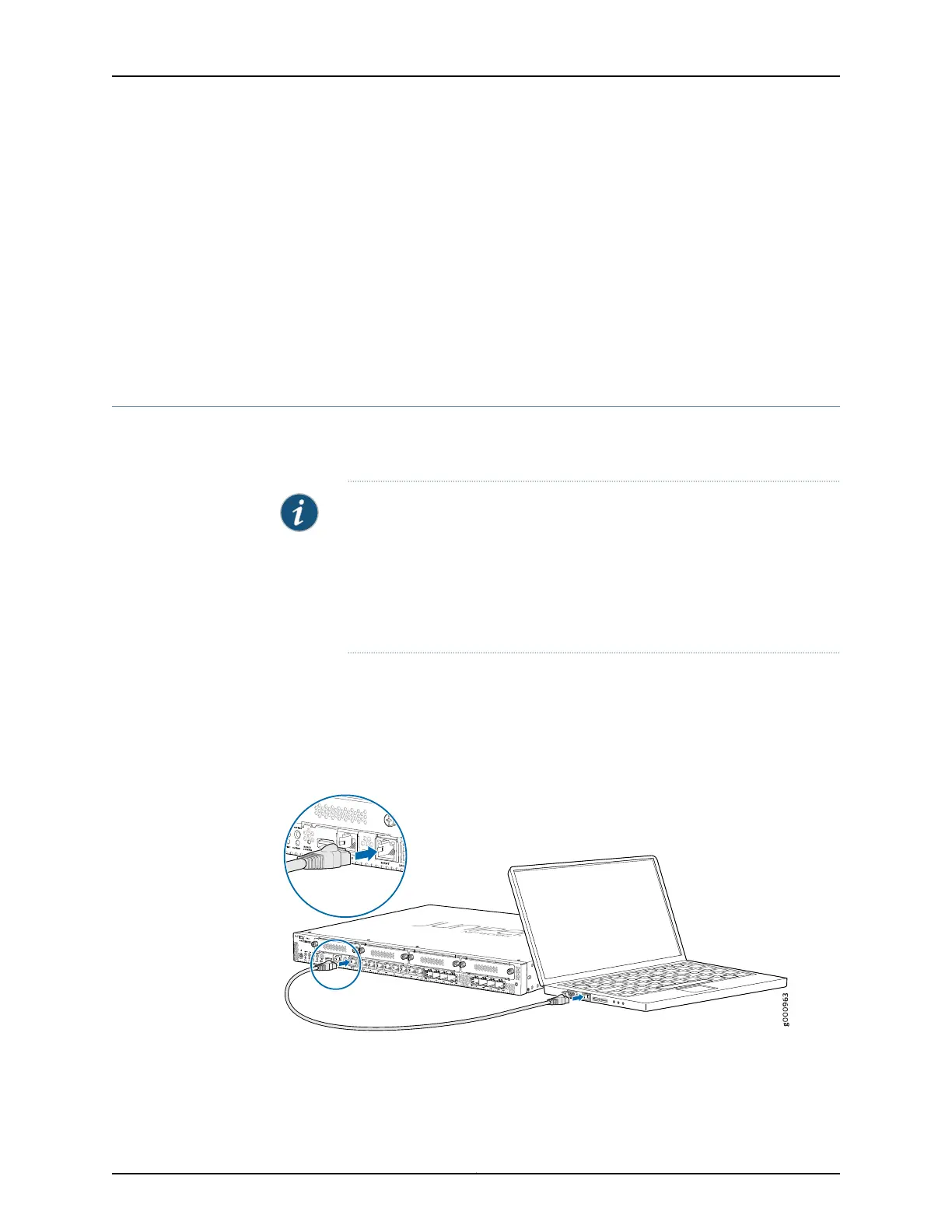

Figure 11: Connecting to the Management Port on the SRX340 Services
Gateway
2. Configure a static IP address in the 192.168.1.0/24 network for the management device.
Do not assign the 192.168.1.1 IP address to the management device, as this IP address
Copyright © 2016, Juniper Networks, Inc.66
SRX340 Services Gateway Hardware Guide
