Model 4200A-SCS Pulse Card (PGU and PMU) User's Manual Section 5: KPulse (for Keithley Pulse Cards)
4200A-PMU-900-01 Rev. A December 2020 5-19
Ramp waveform
An example of a ramp waveform is shown in the next graphic. The waveform for this example is
named RAMP1, but can be any name that is not already used in the Scratch Pad.
After changing one or more settings, select Preview to display the waveform. Select OK to place the
waveform in the Scratch Pad.

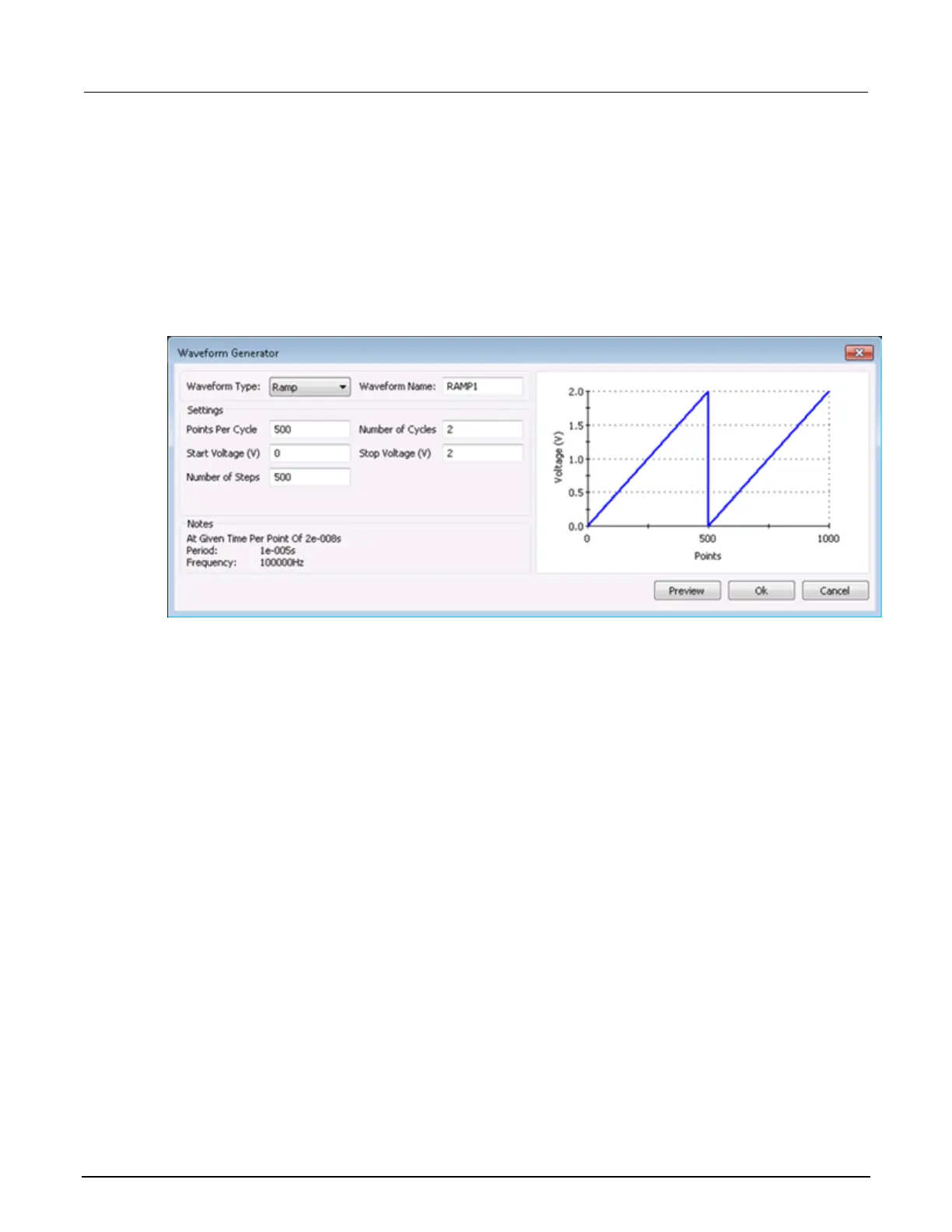

Figure 117: Ramp waveform
