Sequences waveform
An example of a sequences waveform is shown in the below graphic. The waveform for this example
is named SEQ1, but can be any name that is not already used in the Scratch Pad.
A sequence waveform consists of the waveforms that are present in the Channel 1 or Channel 2
Sequencer.
After selecting either Channel One Sequencer or Channel Two Sequencer, select Preview to show
the waveform. Select OK to place the waveform in the Scratch Pad.

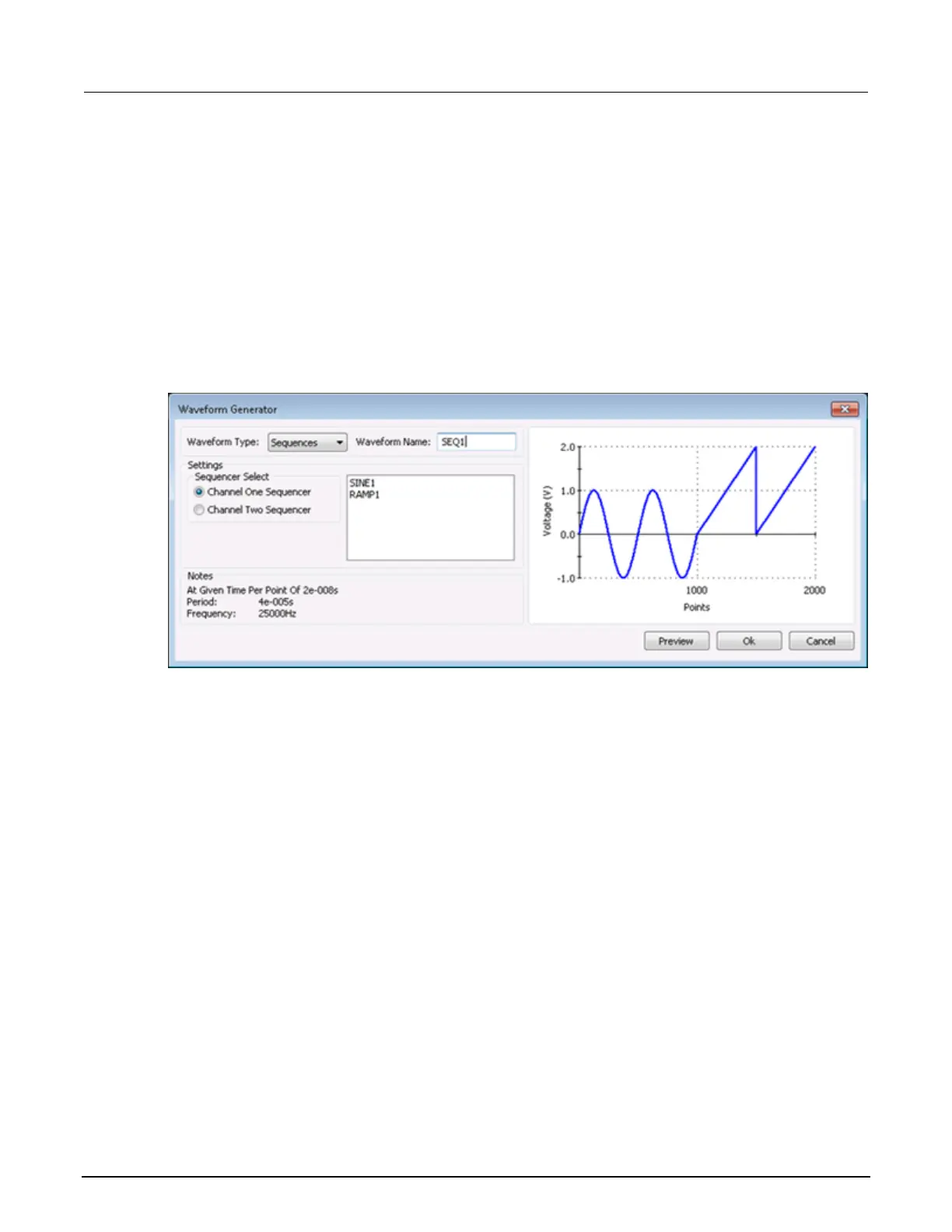

Figure 118: Sequences waveform
