EQUALIZER
By pressing the F8 button the list of EQUALIZER
effects similar to Figure 314 will appear from which
you can choose one of the 10-bands graphical
equalizer preset by using the USER buttons from
1 to 5, or edit the parameters to set the custom
equalization. Select one of the 10 EQ bands by using
the CURSOR
Ó Á
buttons. Modify the value of the
selected band by using the
CURSOR § ¶
buttons
or
the DATA/VALUE wheel (values from -14 dB to14 dB).
The USER buttons from 1 to 5 allow to choose one of
the following Preset:
• Flat (no equalization)
• LowCut (equalization with bass frequencies cut)
• HighCut (equalization with high frequencies cut)
• Loudness (bass and high frequencies boost)
• User (equalization set by the user)
LowCut
By pressing the USER 2 button you can set a low cut
equalization, that is a high-pass filter on sound. Useful
when you must cancel booming frequencies or to
eliminate “pop” noises from the voice (Figure 315).
HighCut
By pressing the USER 3 button you set a high cut
equalization, that is a low-pass filter on sound. Useful
when you must cancel hissing frequencies or to
eliminate feedback effects on the microphone (Figure
316).
Loudness
By pressing the button USER 4 you set an
equalization with bass and high frequencies boost.
Useful when in must enhance the frequencies in too
absorbing rooms at too low volume (Figure 317).
In other words, the natural loss at quite volumes
of low and high frequencies by the human ear is
compensated.
User
By pressing the USER 5 button you set an
equalization made by the user. Useful when you must
recall a particular equalization for different gigs (Figure
318). The User Preset is stored together the Voicetron
Preset, as explained on the next page.
Voicetron

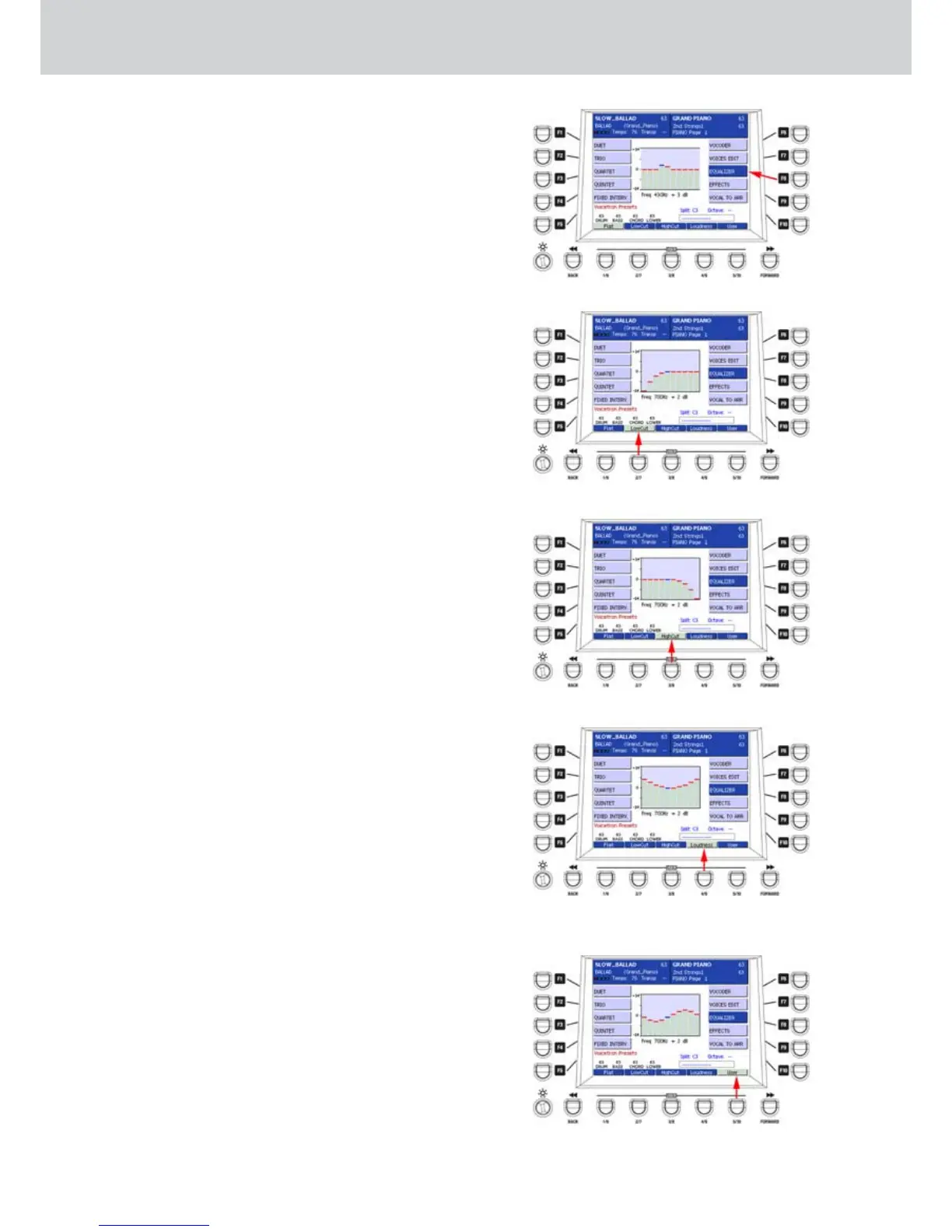

Figure 314
Figure 315
Figure 316
Figure 317
Figure 318
