18 | 02 Playing the voices
Drawbar View
After enabling the Drawbar voice, you can exploit its potential as follows:

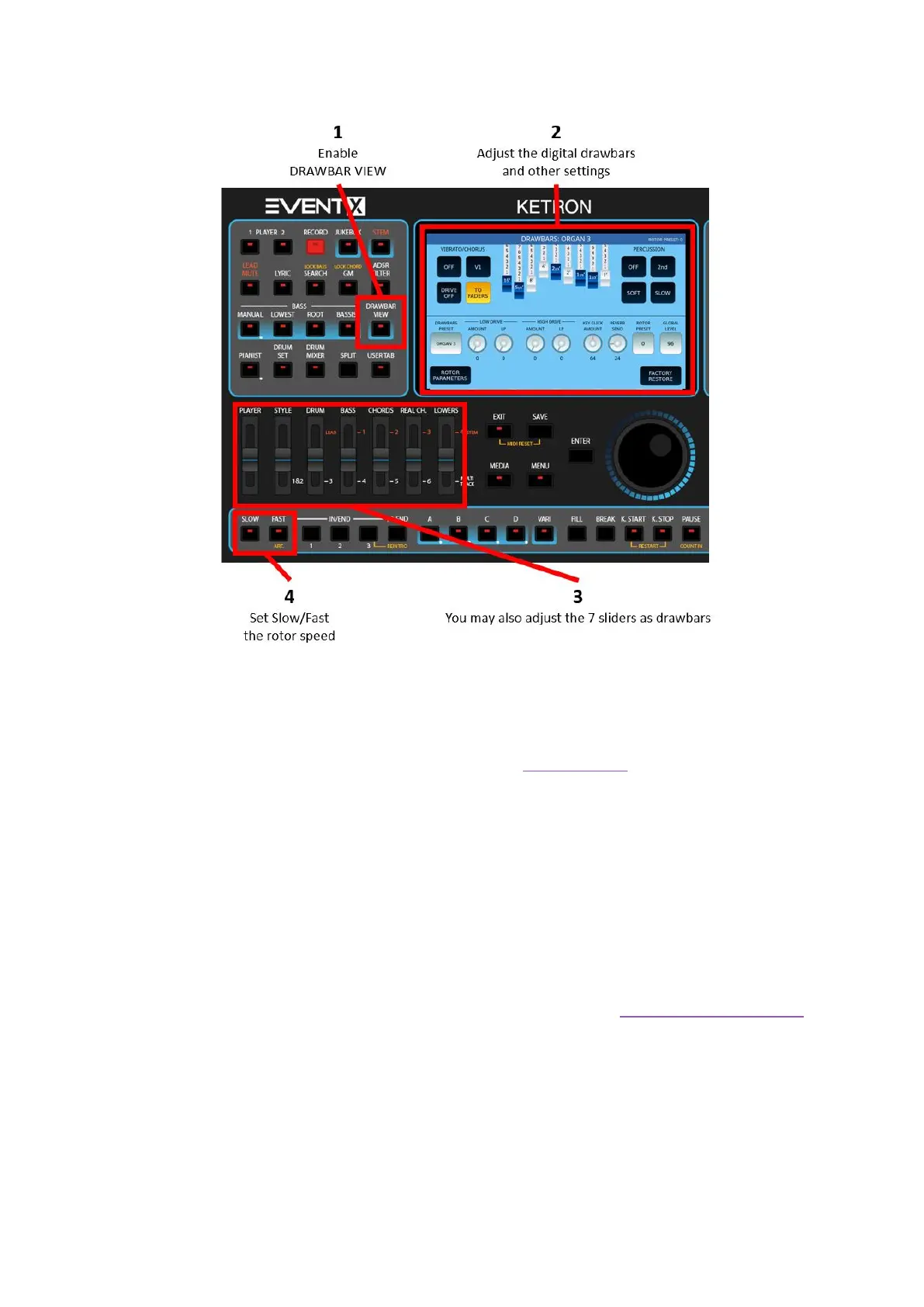

1. Press the DRAWBAR VIEW button on the front panel.
2. The display is shown as above. More on the referral page.
3. Use the nine digital faders on the screen or alternatively the seven physical faders
on the panel as real Drawbars to edit the current DRAWBAR Sound as needed (the
last two drawbars on the right can only be edited on the screen or via the VOICE 1
and VOICE 2 sliders, provided that those voices are not already active).
4. Use the ROTOR control SLOW/FAST buttons to manage the speed simulation of
the rotary speakers.
5. The many editable parameters/options are described in Drawbar voice editing.
6. To exit the DRAWBAR VIEW page, press the DRAWBAR button or the EXIT
button, both of which are located on the front panel.
