5 Maintenance
158 Keysight U1253B User’s and Service Guide
3 To test Fuse 1, place the tip of the test probe on the right half of input terminal
. Ensure that the probe tip touches the metal inside the input terminal,
as shown in Figure 5-8.
4 To test Fuse 2, place and touch the tip of the test probe on the right half of
input terminal . Ensure that the probe tip touches the metal inside the input
terminal.
5 Observe the reading on the instrument's display. Refer to Table 5-3 for the
possible readings that could appear.
6 Replace the fuse when OL is displayed.

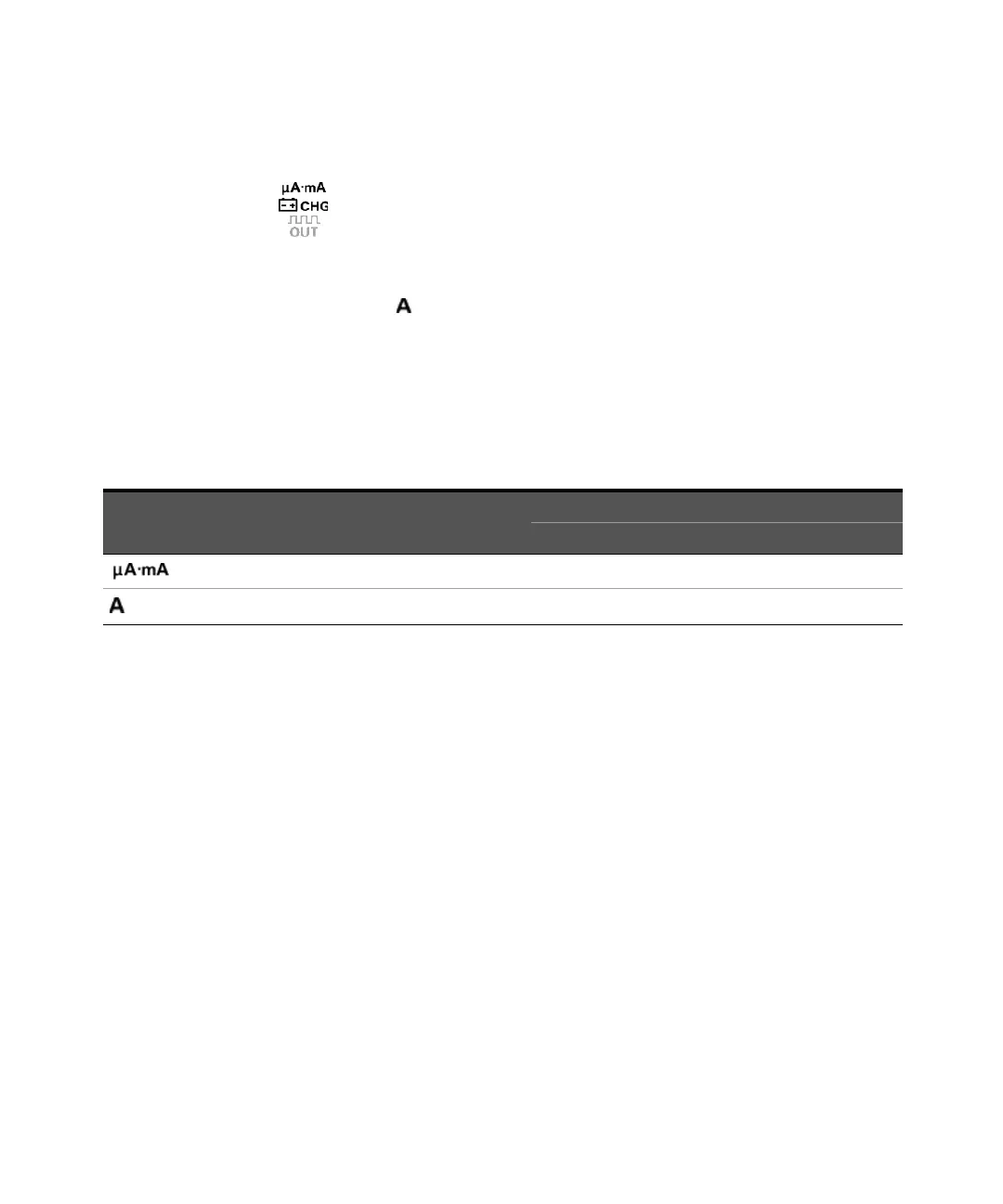

Table 5-3 U1253B measurement readings for fuse checking
Current input terminal Fuse Fuse rating
Fuse OK (approximately) Replace fuse
Displayed readings
1 440 mA/1000 V 6.2 MΩ OL
2 11 A/1000 V 0.06 Ω OL
