Kia Carnival - Replacing Rear Wiper Blade

Maintenance
468
Wiper blades
4. Return the wiper arm on the
windscreen.
5. Turn the ignition switch or ENGINE
START/STOP button to the ON
position and wiper arms will
return to the normal operating
position.

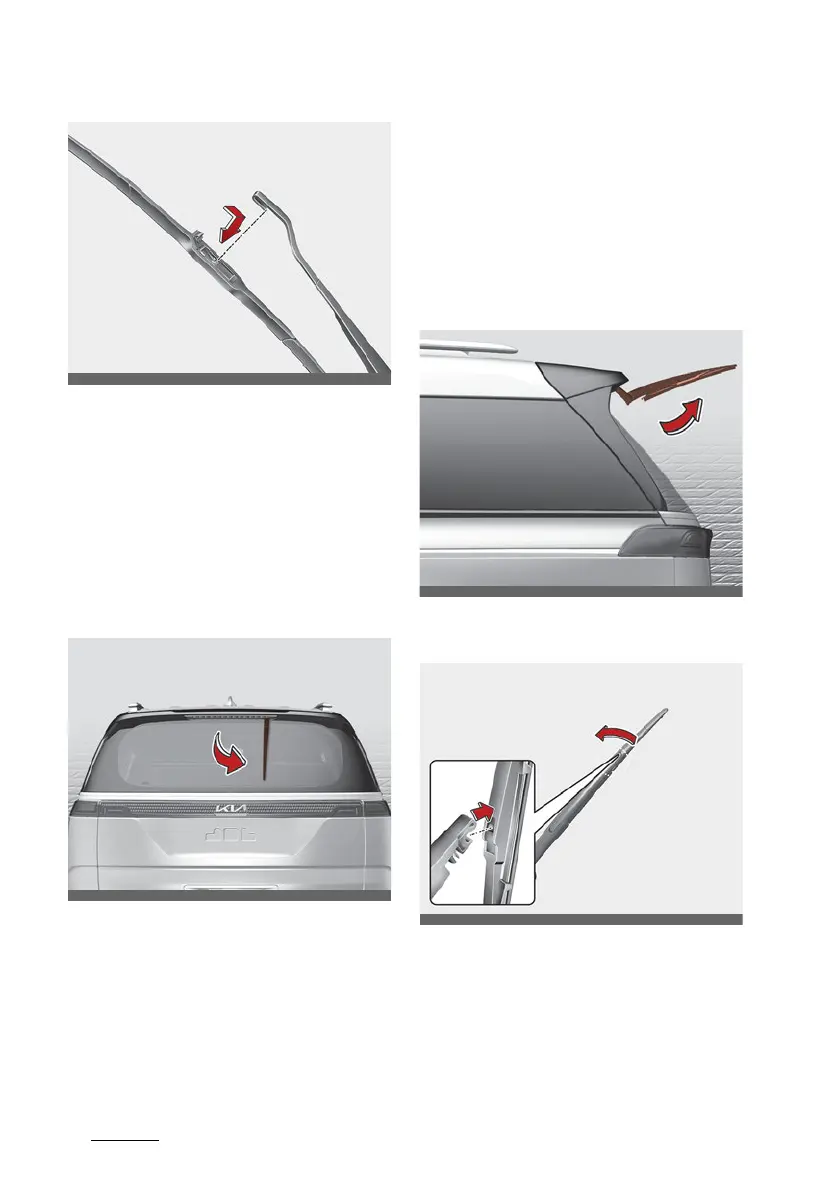

Replacing rear wiper blade
Move the rear wiper to the bottom
middle part, and lift up the wiper
arm. Pull the wiper blade to remove
it.
1. Within 20 seconds after the vehi
-
cle ignition is OFF, pull down the
wiper lever to MIST position for
over 2 seconds until the wiper
moves down to the bottom mid
-
dle part.
2. Raise the wiper arm and pull out
the wiper blade assembly.
3. Lift up the wiper blade, and pull
the blade to remove it.
4. Install the new blade assembly by
inserting the centre part into the
slot in the wiper arm until it clicks
into place.
ODEEV098017NR
OKA4070012N
OKA4070013
OMQ4070104L
