Maintenance
728

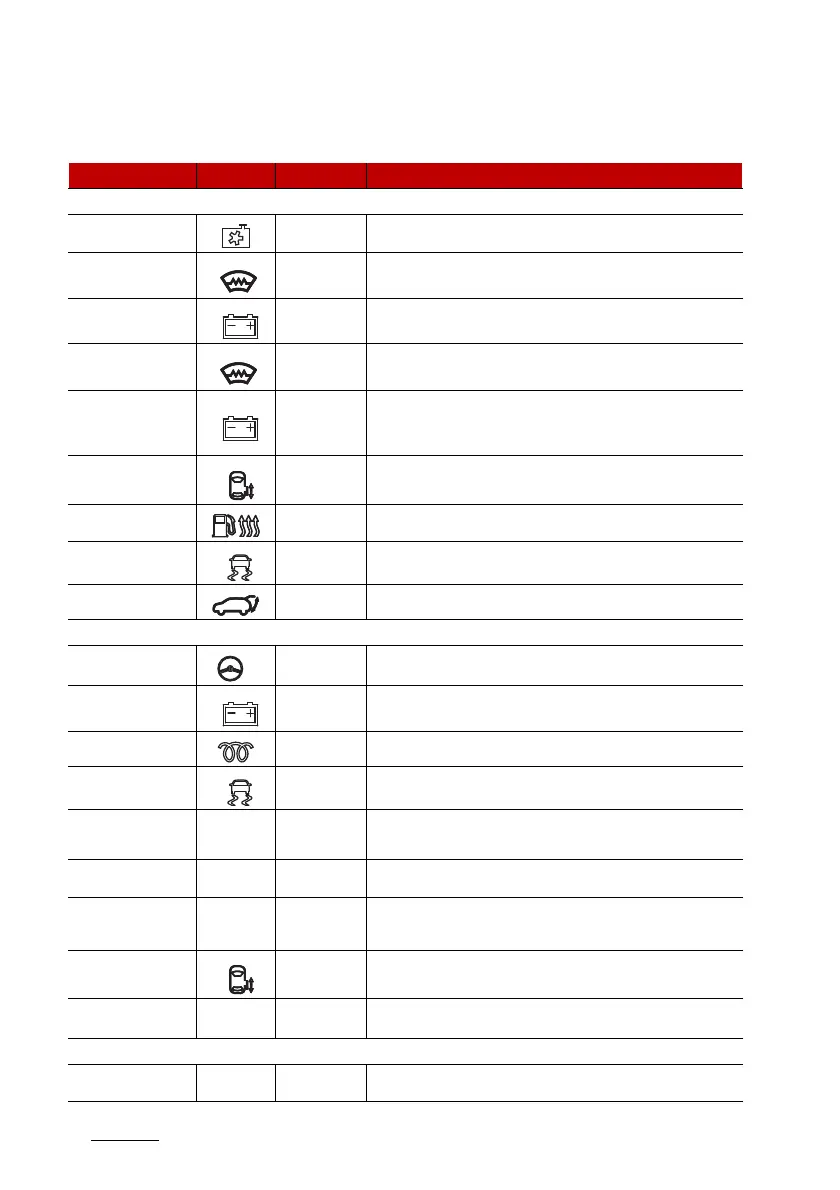

Fuses
Engine Room Junction Block
Fuse Name Symbol Fuse rating Circuit Protected
MULTI FUSE (TYPE A)
COOLING FAN 80A Cooling Fan Motor
W/S HEATED
GLASS1
50A Windscreen Heated Glass1 Relay
B+4 50A
ICU Junction Block (Fuse - SUNROOF1, AMP, FRONT S/
HEAT, PASSENGER P/WINDOW, REAR LH P/SEAT)
W/S HEATED
GLASS2
50A Windscreen Heated Glass2 Relay
B+5 50A
ICU Junction Block (Fuse - REAR LH S/HEAT, DRIVER P/
SEAT, DRIVER P/WINDOW, PASSENGER P/SEAT, SUN
-
ROOF2, REAR RH P/SEAT)
PSD2 40A Power Sliding Door Module
FUEL HEATER 40A [Smartstream D2.2] Fuel Heater Relay
ESP1 40A ESP (Electronic Stability Program Control Module
POWER TAILGATE 30A Power Tail Gate Module
MULTI FUSE (TYPE B)
EPS 100A EPS (Electric Power Steering) Unit
B+6 60A
PCB Block (Engine Control Relay, Wiper On Relay, Fuse -
HORN, A/C2, B/ALARM, ECU1, IG2, IG1)
GLOW 60A [Smartstream D2.2] Glow Control Unit
ESP2 60A ESP (Electronic Stability Program Control Module
PTC HEATER1 50A [Smartstream D2.2] PTC Heater1 Relay
DCU1 40A [Smartstream D2.2] DCU Relay
POWER OUTLET1 40A Power Outlet Relay
PSD1 40A Power Sliding Door Module
E-SHIFTER1 30A [With SBW (Shift By Wire)] SCU (System Control Unit)
FUSE
DCU2 20A [Smartstream D2.2] Dosing Control Module
1
4
2
5
2
1
1
6
2
PTC
HEATER
1
DCU
1
POWER
OUTLET
1
1
E-SHIFTER
1
DCU
2
