2 COMPONENT DESCRIPTIONS
2.1 Control Head Monitor with Explosion Proof Assembly,
P/N 85-100000-100
The Control Head Monitor with explosion proof assembly provides supervision for control head
placement in normal and explosive environments in one easy to install component.
The following specifications apply to the Control Head Monitor:
• Rated Voltage: 42 VDC maximum
• Resistive Load: 0.5A maximum

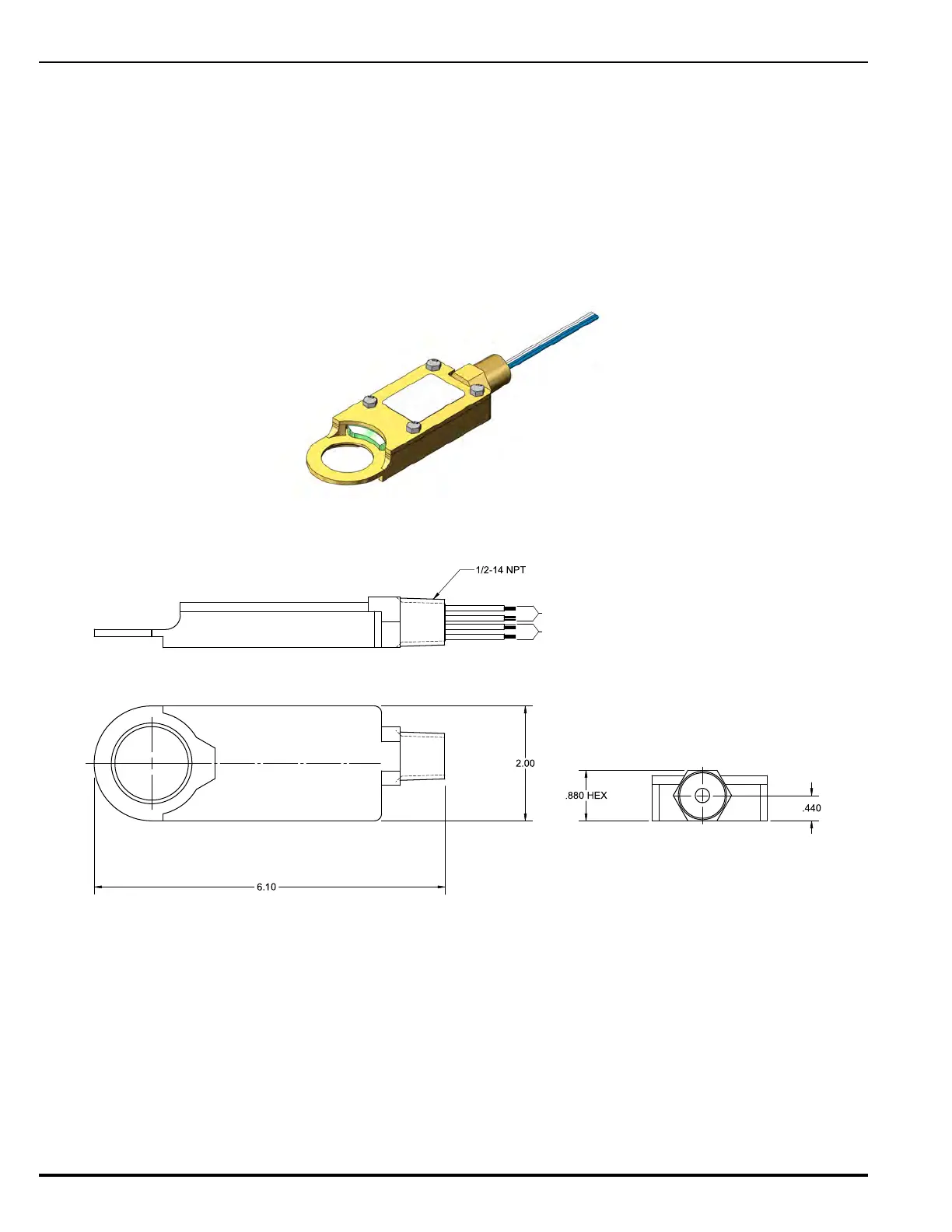

Figure 1. Control Head Monitor with Explosion Proof Assembly
Figure 2. Control Head Monitor Dimensions
This component can be placed between the items listed below and one of the following Electric
or Electric/Cable operated control heads (P/N: WK-890181-000, WK-897494-000,
82-486500-010, and 81-895630-000):
• 1-1/2”, 2”, and 3” cylinder discharge valve
• Nitrogen Pilot valve
• Nitrogen Driver valve
• Stackable Pressure Operated Control head (with special spacer)
