Kidde Fire Systems ECS User Manual

May 2016 2 06-236115-004
2 COMPONENT DESCRIPTIONS
2.1 Stainless Steel Discharge Nozzles
The 180° and 360° stainless steel discharge nozzles function similarly to the brass nozzles and
are designed to provide the proper flow rate and distribution of agent to flood a hazard area.
The 180° nozzle is engineered to provide a 180° discharge pattern for sidewall applications.
The 360° nozzle offers a full 360° discharge pattern for installations where nozzles are located
in the center of the hazard. See Figure 3 and Figure 4 and Table 1 and Table 2 for further
information. For part numbers, see See “Stainless Steel Discharge Nozzle Parts List” on page 4.

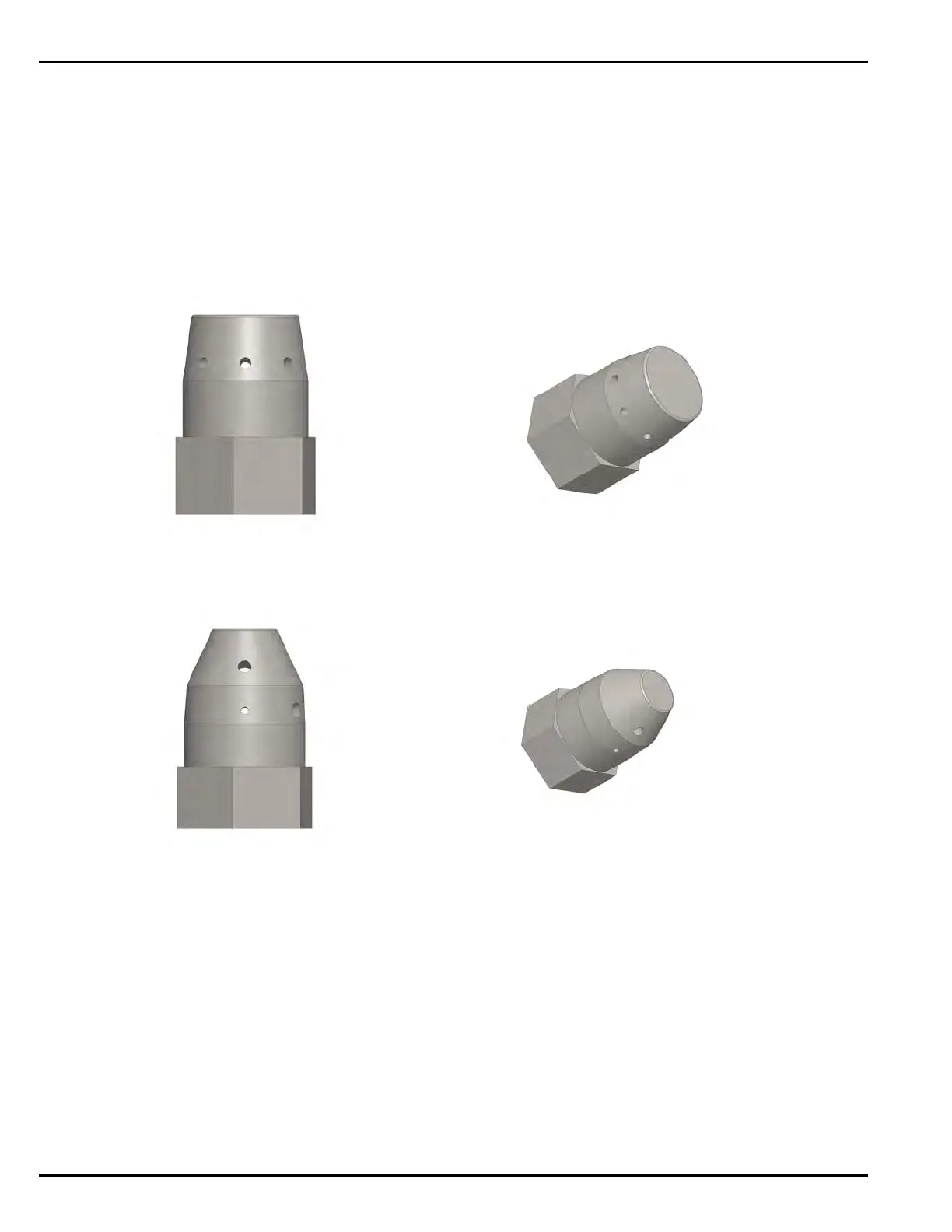

Figure 1. 360° Stainless Steel Nozzle
Figure 2. 180° Stainless Steel Nozzle
Note: Installation details and coverage areas for the Stainless Steel Nozzle are the same as
the Brass Nozzles. Please refer to the Kidde Fire Systems
®
ECS Fire Suppression Sys-
tem with HFC-227ea Agent: DIOM Rev BA, P/N 06-236115-001 for further details.
