Component Description
06-236115-001 3-21 October 2014
3-3.5 Remote Pull Stations
3-3.5.1 Electric Remote Pull Box, P/N 84-330001-001
The Electric Remote Pull Box is an electrically operated device. To actuate the HFC-227ea
system, pull the handle on the front of the box.
3-3.5.2 Cable Manual Pull Station, Surface, P/N 81-871403-000
The surface type remote Cable Manual Pull Station is a cable operated device. To actuate the
HFC-227ea system, break the glass plate on the box using the attached hammer and pull the
handle (see Figure 3-21).

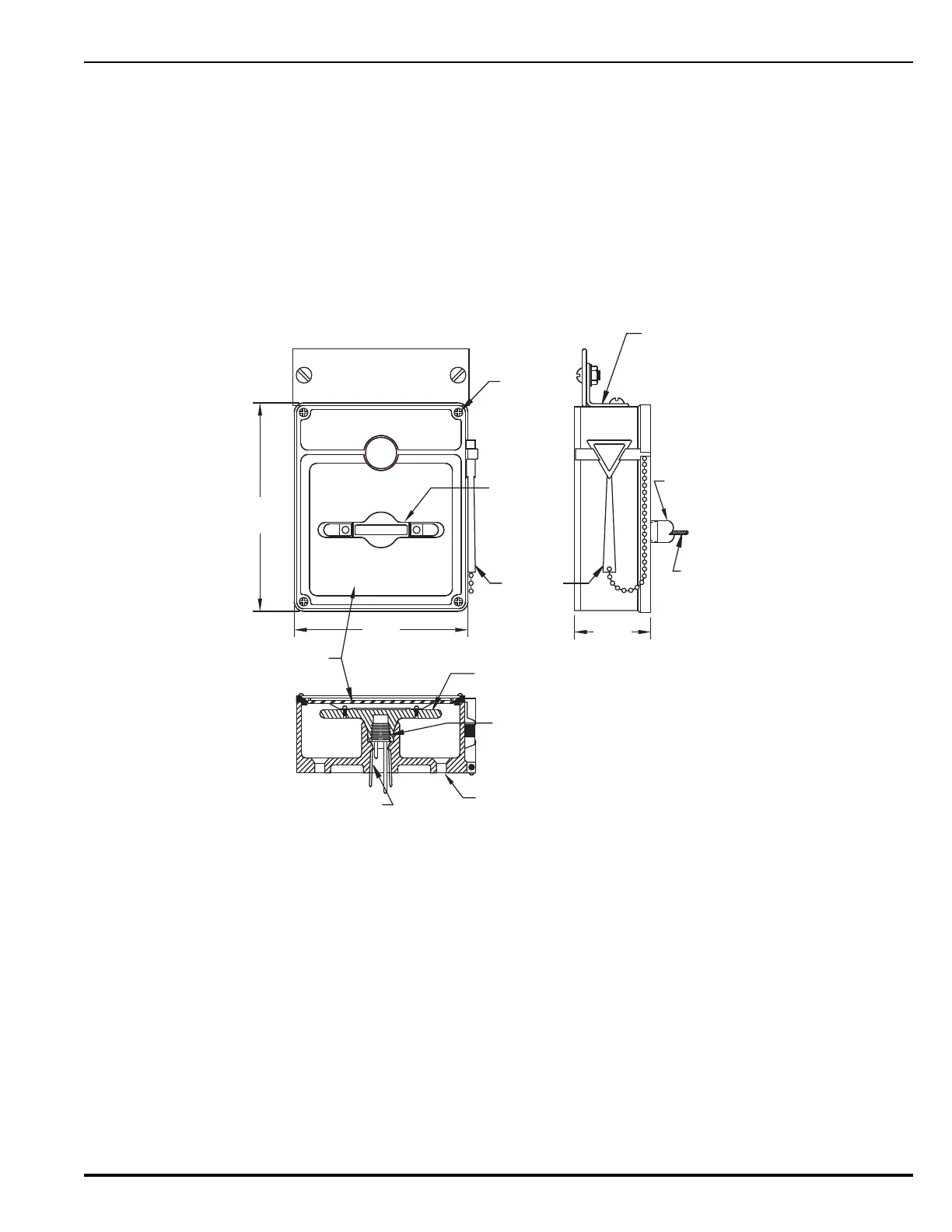

Figure 3-21. Cable Manual Pull Station
400 Main Street - Ashland, MA 01721-2150
Tel(508)881-3000 FAX(508)881-0020
R
FOR FIRE
BREAK GLASS PULL HANDLE
PULL HARD
OPTIONAL
NAMEPLATE
(BY INSTALLER)
HAMMER
P/N 928103
PULL
4-COVER
3/8 in. PIPE
1/16 in. CABLE
SCREWS
HANDLE
2 - NAMEPLATE
BRACKETS -
(SUPPLIED WITH
PULL BOX)
5.87 in.
5.00 in.
2.25 in.
(57 mm)
(127 mm)
(149 mm)
PULL HANDLE
CABLE FASTENER FOR 1/16 in. CABLE
BREAK GLASS
P/N 928103
3/8 in. NPT FEMALE
2 - HOLES FOR 1/4 in.
MOUNTING SCREWS
(SCREWS NOT SUPPLIED
WITH PULL BOX)
SECTION VIEW
